Description

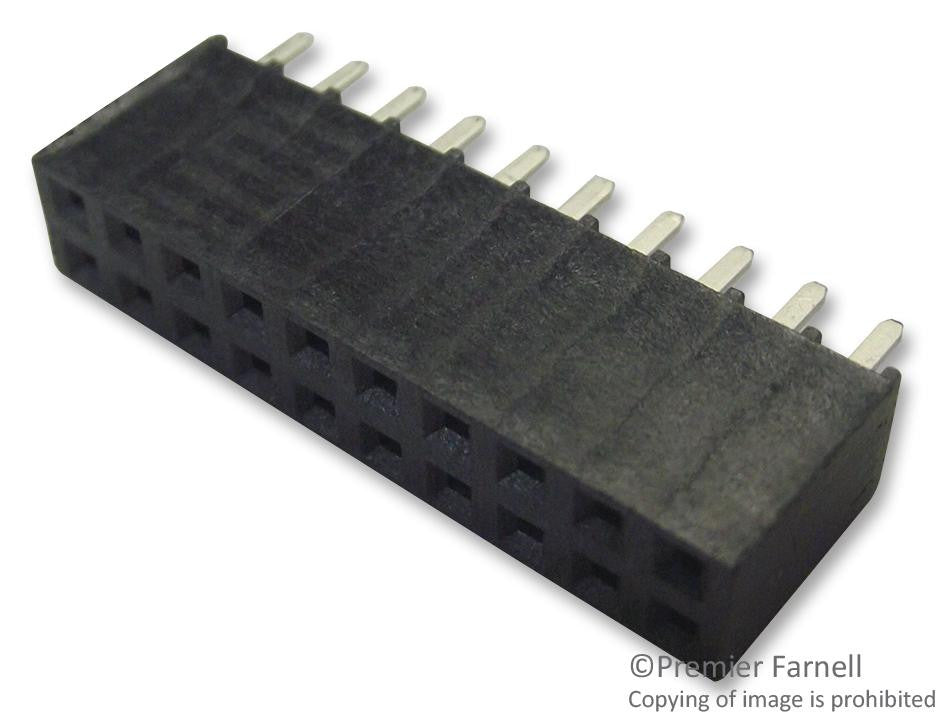

The SSW-110-01-T-D is a 20-way 2-row 0.025-inch SQ Post Socket with matte tin plating, through-hole, black liquid crystal polymer insulator and phosphor bronze contact.
- Orderable with single/dual/triple rows (-S/-D/-T/ -P/-Q options)
- Pitch spacing is 2.54mm (1 to 50 contacts per row) with straight orientation
- High operating temperature range of -55°C to 105°C for matte tin plated contacts
- Black liquid crystal polymer (-S, -D) / black high temperature thermoplastic (-T) insulator material
- Complies with UL E111594 and CSA 090871_0_000 standards
- Contact material is phosphor bronze
Applications
Industrial
Product details
| No. of Contacts | 20Contacts |
| Contact Plating | Tin Plated Contacts |
| Gender | Receptacle |
| Product Range | SSW Series |
| Contact Material | Phosphor Bronze |
| Contact Termination Type | Through Hole |
| Pitch Spacing | 2.54mm |
| No. of Rows | 2Rows |
Other details
| Brand | SAMTEC |
| Part Number | SSW-110-01-T-D |
| Quantity | Each |
| Technical Data Sheet EN |  |
