Description

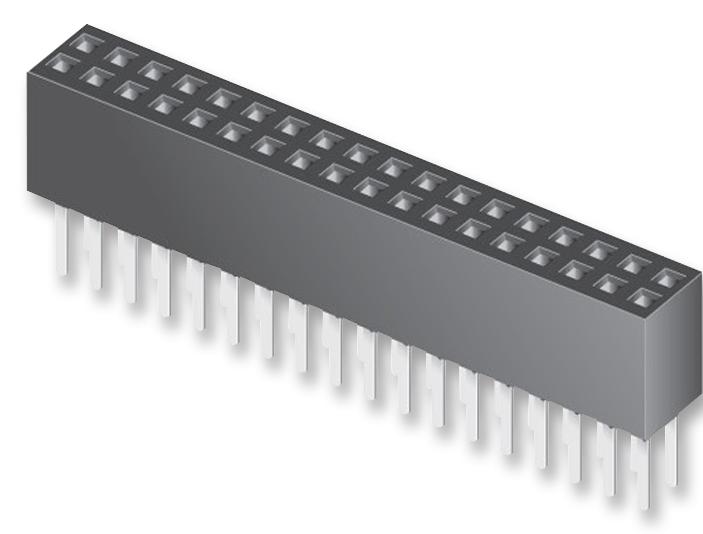

The SFMC-105-01-S-D is a 10-way 2-row flexible pin count TIGER EYE� Socket with gold-plated phosphor bronze contact, black liquid crystal polymer insulator and through-hole.
- Available in dual row with vertical orientation
- Pitch spacing is 1.27mm (2 to 50 contacts per row) with through hole lead style (-01, -03 )
- 30µ" gold plated contacts
- Black liquid crystal polymer insulator material
- Complies with UL E111594 and CSA 090871_0_000 standards
- Contact material is beryllium copper (BeCu)
- Contact resistance is 15mohm
- High operating temperature range of -55°C to 125°C
Industrial
Other details
| Brand | SAMTEC |
| Part Number | SFMC-105-01-S-D |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 507.17 |
| 3-5 | ₹ 501.99 |
| 5-10 | ₹ 491.64 |
| 10+ | ₹ 481.29 |
Bulk discount will be automatically applied during checkout based on quantity.
