Description

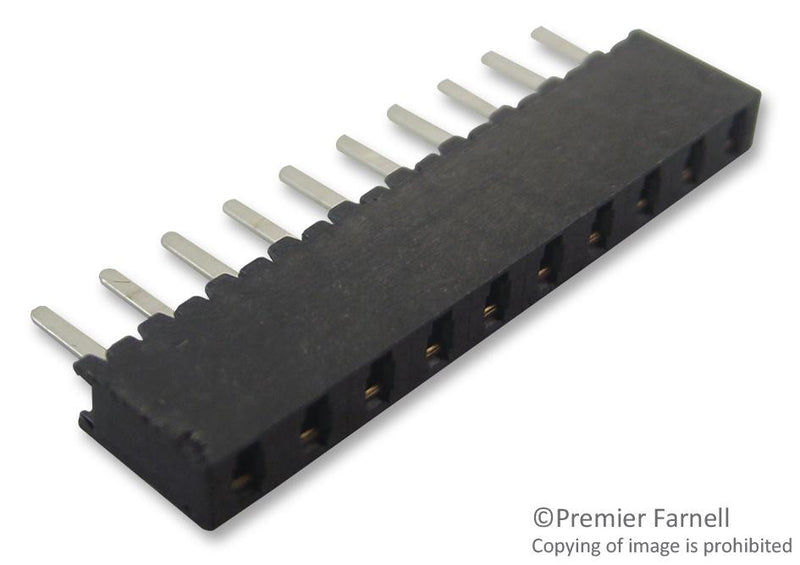

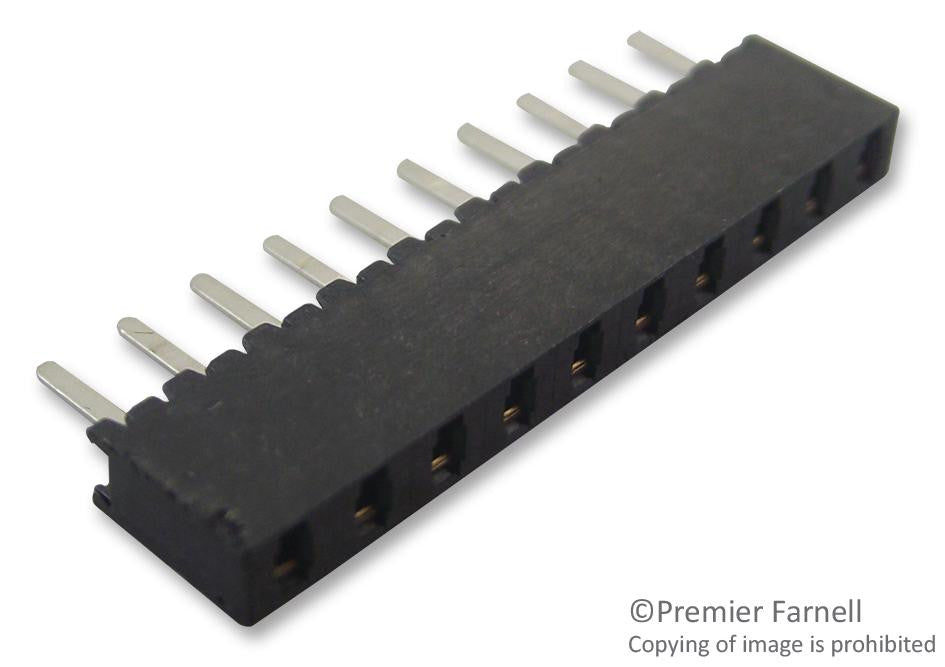

The MMS-110-01-L-SV is a 10-pole 1-row 2mm Tiger Claw� Socket Strip with 10µinch (0.25µm) gold-plated phosphor bronze contacts and LCP insulator. The MMS series vertical socket strip is compatible with LTMM, MMT, MTMM, TCMD, TMM, TMMH, TSH, TW-SM, TW-TH and ZLTMM series connectors.
- Pitch spacing is 2mm (2 to 40 contacts per row)
- Single row vertical mounting socket strip
- High operating temperature range of -55°C to 125°C for 10µ" gold plated contacts
- Black liquid crystal polymer insulator material
- Contact material is phosphor bronze
- Contact resistance is 10mohm
- Tiger Claw contact system
- Complies with UL E111594 and CSA 090871_0_000 standards
Applications
Industrial
Product details
| No. of Contacts | 10Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Receptacle |
| Product Range | MMS Series |
| Contact Material | Phosphor Bronze |
| Contact Termination Type | Through Hole |
| Pitch Spacing | 2mm |
| No. of Rows | 1Rows |
Other details
| Brand | SAMTEC |
| Part Number | MMS-110-01-L-SV |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
