Description

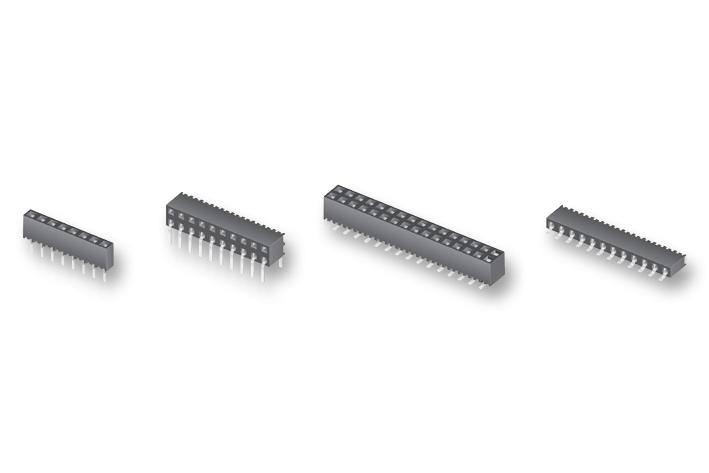

The MMS series from Samtec are Tiger Claw socket strips. These through hole socket strips mates with Samtec TMMH, TMM, MTMM, MMT, TW, LTMM, ZLTMM, TCMD and TSH series connectors.
- Pitch spacing is 2mm (2 to 40 contacts per row)
- Double row vertical mounting socket strip
- High operating temperature range of -55?C to 125?C for 10?" gold plated contacts
- Black liquid crystal polymer insulator material
- Contact material is phosphor bronze
- Contact resistance is 10mohm
- Tiger Claw contact system
- Complies with UL E111594 and CSA 090871
- 0
- 000 standards
Applications
Industrial
Product details
| Connector Systems: Board-to-Board, Wire-to-Board |
| Pitch Spacing: 2mm |
| No. of Rows: 2Rows |
| No. of Contacts: 12Contacts |
| Connector Mounting: Through Hole Mount |
| Product Range: Tiger Claw MMS |
| Contact Material: Phosphor Bronze |
| Contact Plating: Gold Plated Contacts |
Other details
| Brand | SAMTEC |
| Part Number | MMS-106-01-L-DV |
| Quantity | Each |
| Technical Data Sheet EN |  |
