Description

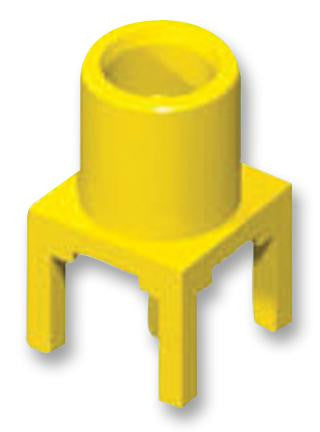

The MCX7-J-P-H-ST-TH1 is an Optimized MCX Jack with 30�inch (0.76�m) gold-plated beryllium copper contacts and PTFE insulator. The MCX7 series MCX jack has a brass shell, PCB mounting and straight orientation.
- Through-hole termination
- 170Vrms Maximum voltage
- 500Vrms Minimum dielectric withstanding
- 1000MR Minimum insulation resistance
- Lead-free solderable
Applications
Industrial
Product details
| Contact Material | Beryllium Copper |
| Contact Plating | Gold Plated Contacts |
| Connector Type | MCX Coaxial |
| Coaxial Termination | Through Hole Vertical |
| Connector Mounting | PCB Mount |
| Connector Body Style | Straight Jack |
| Coaxial Cable Types | RG179 |
| Impedance | 75ohm |
| Product Range | MCX7 Series |
| Frequency Max | 6GHz |
Other details
| Brand | SAMTEC |
| Part Number | MCX7-J-P-H-ST-TH1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
