Description

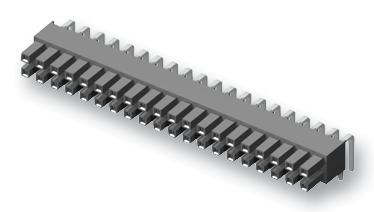

The IPS1-110-01-S-D-RA is a 20-pole 2-row 2.54mm Mini Mate? Isolated Power Connector Socket Strip with 50?inch (1.27?m) gold-plated phosphor bronze contacts and LCP insulator. The IPS1 series right angle socket strip is compatible with IPT1 series connectors.
- Black colour
- 4.8A Current rating
- 775VAC/1095VDC Voltage rating
- Lead-free solderable
- Individually shrouded contacts
- Optional locking clip
- Vertical through-hole and surface mount, right angle through-hole
Applications
Industrial
Product details
| Connector Systems: Board-to-Board |
| Pitch Spacing: 2.54mm |
| No. of Rows: 2Rows |
| No. of Contacts: 20Contacts |
| Connector Mounting: Through Hole Mount Right Angle |
| Product Range: IPS1 |
| Contact Material: Phosphor Bronze |
| Contact Plating: Gold Plated Contacts |
Other details
| Brand | SAMTEC |
| Part Number | IPS1-110-01-S-D-RA |
| Quantity | Each |
| Technical Data Sheet EN |  |
