| ₹ 1052.9 includes GST and import duties. | |
| B2B customers can avail ₹ 160.57 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

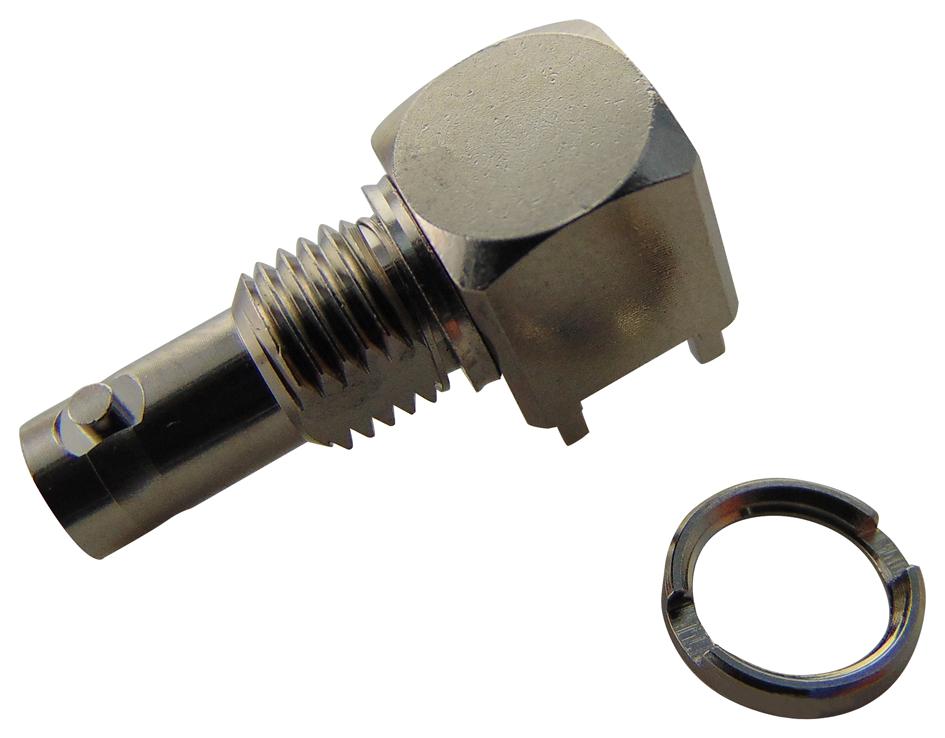

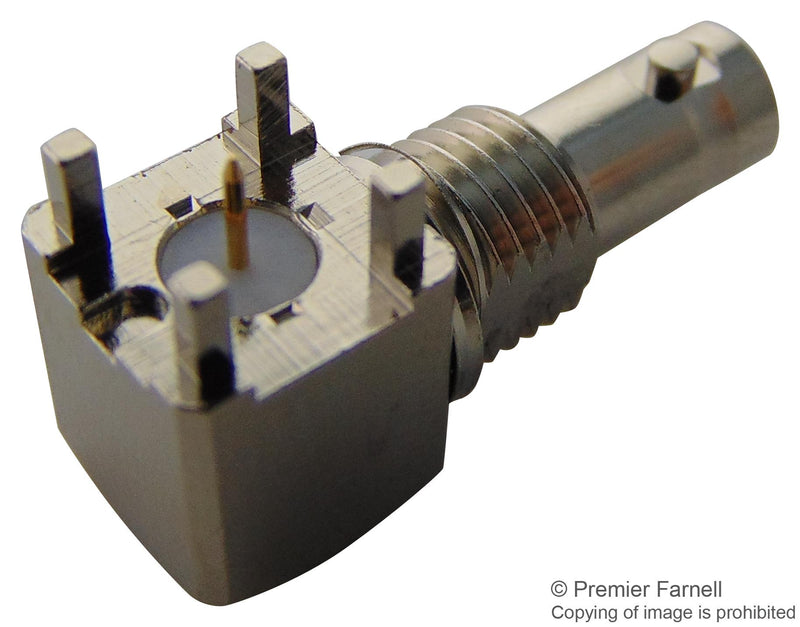

The HDBNC-J-P-GN-RA-BH1 is a through-hole HD BNC Right Angle Jack for use with RFB6T, RFB8T and RFA6T RF coaxial cables. It has nickel-plated brass body with gold-plated copper alloy contacts and a PTFE insulator.
- -65 to 125?C Operating temperature range
- 1.45 Maximum VSWR
- 330Vrms Maximum working voltage
- 1500Vrms Minimum dielectric withstanding voltage
RF Communications, Industrial
Other details
| Brand | SAMTEC |
| Part Number | HDBNC-J-P-GN-RA-BH1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1031.84 |
| 3-5 | ₹ 1021.31 |
| 5-10 | ₹ 1000.26 |
| 10+ | ₹ 979.2 |
Bulk discount will be automatically applied during checkout based on quantity.
