Samtec HCSD-20-D-12.00-01-N-G-RW HCSD-20-D-12.00-01-N-G-RW Ribbon Cable IDC Receptacle to 40 Ways 12 " 305 mm 2.54 Hcsd

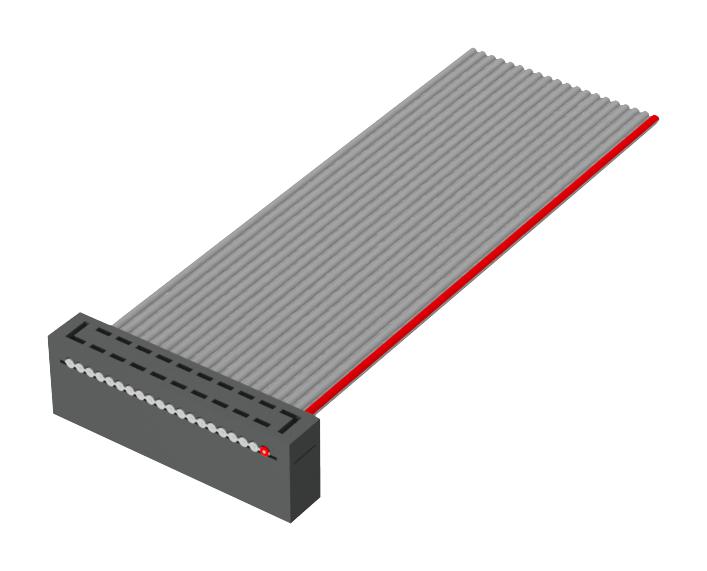

The HCSD-20-D-12.00-01-N-G-RW from Samtec is a 0.1" (2.54mm) pitch, double row IDC ribbon socket strip cable assembly. This cable assembly mates with shrouded terminal strips and ejector headers. Dual beam contacts mate with 0.025" (0.635mm) square posts. It also mates with TSW, MTSW, TST, EW, BST, ZST, MTLW, TSM and EJH-02 connectors.

• IDC 40 position receptacle with 12inch grey cable
• Double ended cable assembly (socket on each ends)
• Phosphor bronze contacts with 10?" (0.25?m) gold on contact area or tail, tin on balance
• Withstanding voltage of 1000VRMS at 60Hz
• Temperature range from -40?C to 105?C
• Contact resistance of 10mohm and insulation resistance of 5000Mohm
• Black liquid crystal polymer insulator material
• Flammability rating meets UL 94V-0
• UL E111594 recognized
• Notch polarization and reversed wiring options

Applications

Industrial

Other details

Brand	SAMTEC
Part Number	HCSD-20-D-12.00-01-N-G-RW
Quantity	Each
Technical Data Sheet EN
Drawing EN
