Description
Product Overview

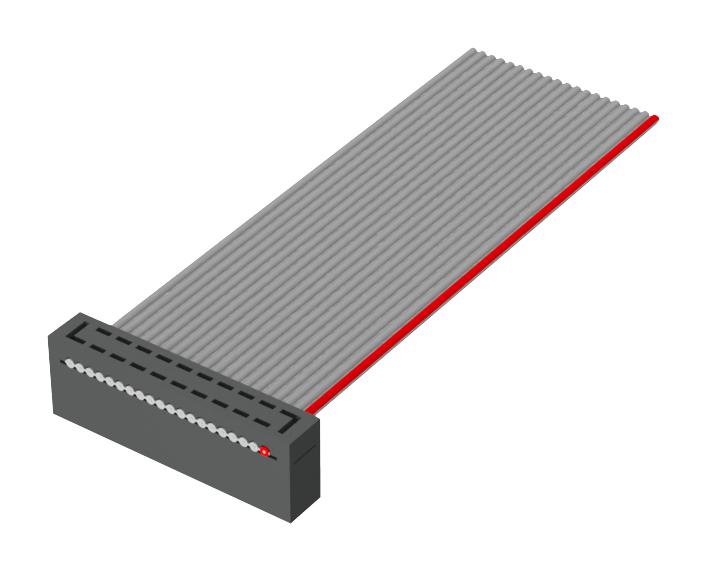

The HCSD-05-D-08.00-01-RW-R from Samtec is a 0.1" (2.54mm) pitch, double row IDC ribbon socket strip cable assembly. This cable assembly mates with shrouded terminal strips and ejector headers. Dual beam contacts mate with 0.025" (0.635mm) square posts. It also mates with TSW, MTSW, TST, EW, BST, ZST, MTLW, TSM and EJH-02 connectors.
- IDC 10 position receptacle with 8inch colour coded cable
- Double ended cable assembly (socket on each ends)
- Phosphor bronze contacts with 10?" (0.25?m) gold on contact area or tail, tin on balance
- Withstanding voltage of 1000VRMS at 60Hz
- Temperature range from -20?C to 105?C
- Contact resistance of 10mohm and insulation resistance of 5000Mohm
- Black liquid crystal polymer insulator material
- Flammability rating meets UL 94V-0
- UL E111594 recognized
- Reversed and reversed wiring options
Applications
Industrial
Product details
Other details
| Brand | SAMTEC |
| Part Number | HCSD-05-D-08.00-01-RW-R |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1088.96 |
| 3-5 | ₹ 1077.84 |
| 5-10 | ₹ 1055.62 |
| 10+ | ₹ 1033.4 |
Bulk discount will be automatically applied during checkout based on quantity.
