Description

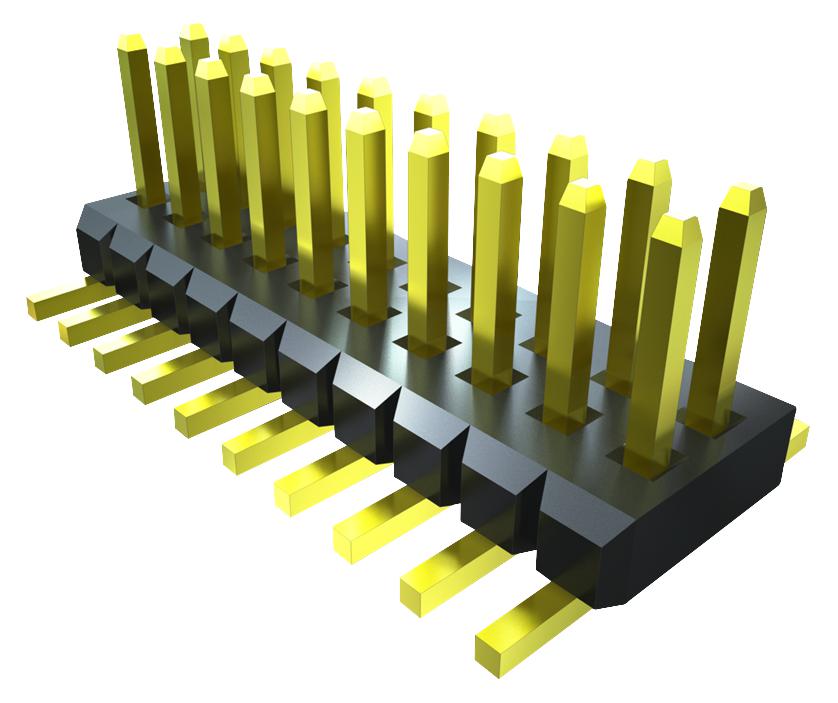

The FTS series from Samtec are micro low profile terminal strip headers. It mates with Samtec FFSD, CLP and FLE series of connectors. These terminal strip headers are available in various post heights.
- Pitch spacing is 1.27mm (2 to 50 contacts per row) with double row vertical SMT (-DV)
- High operating temperature range of -55?C to 125?C
- Contact material is phosphor bronze
- Black liquid crystal polymer insulator material
- Current rating is 3.3A
- Complies with UL E111594 standard
- Gold flash plated contacts
Applications
Industrial
Product details
| Connector Systems: Board-to-Board |
| Pitch Spacing: 1.27mm |
| No. of Rows: 2Rows |
| No. of Contacts: 36Contacts |
| Contact Termination Type: Surface Mount |
| Product Range: FTS |
| Connector Shroud: Unshrouded |
| Contact Material: Phosphor Bronze |
| Contact Plating: Gold Plated Contacts |
Other details
| Brand | SAMTEC |
| Part Number | FTS-118-02-F-DV |
| Quantity | Each |
| Technical Data Sheet EN |  |
