| ₹ 1995.66 includes GST and import duties. | |
| B2B customers can avail ₹ 304.34 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

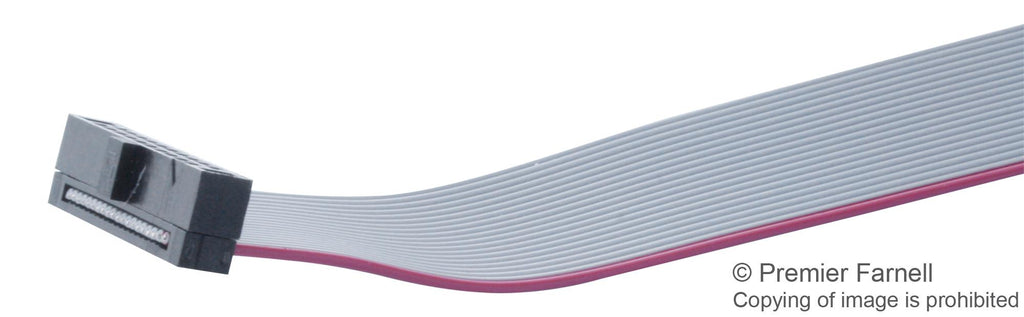

The FFSD-10-D-12.00-01-N is a 20-way Tiger Eye� IDC Ribbon Cable Assembly with IDC 20-position receptacle to IDC 20-position receptacle. Socket cable assemblies feature PBT housing with 10�inch gold plated beryllium copper contacts. It mates with EHF, ESHF, FTS, FTSH, FW-SM, FW-TH and SHF series connectors.
- High reliability Tiger Eye� contacts
- Mating shrouded terminal strips and ejector headers
- Notch polarization
- 30AWG Wire
- 2.3A Current rating per pin
- 15mR Contact resistance
Applications
Communications & Networking
Product details
| Cable Pitch | 0.635mm |
| Cable Length - Metric | 304.8mm |
| Connector Type B | IDC Receptacle |
| No. of Positions | 20Ways |
| Connector Type A | IDC Receptacle |
| Product Range | FFSD Series |
| Connector Pitch | 1.27mm |
| Cable Length - Imperial | 1ft |
Other details
| Brand | SAMTEC |
| Part Number | FFSD-10-D-12.00-01-N |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1955.75 |
| 3-5 | ₹ 1935.79 |
| 5-10 | ₹ 1895.88 |
| 10+ | ₹ 1855.96 |
Bulk discount will be automatically applied during checkout based on quantity.
