Description

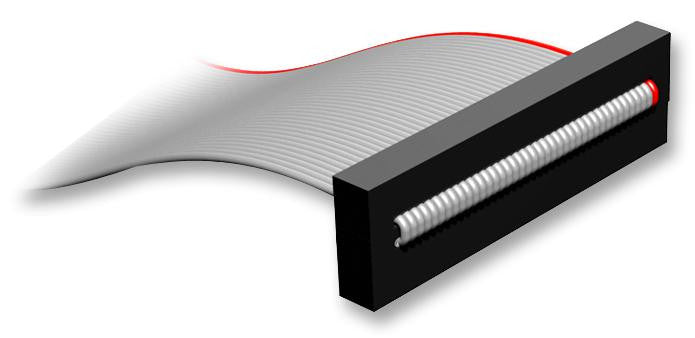

The FFSD series from Samtec are 1.27mm pitch Tiger Eye flat IDC wire cables.
- Number of pins varies from 4 to 25 pins
- Single and double ended options available
- Notch polarization
- Insulator material PBT
- Current rating of 2.3A per pin
- Wire size of 30AWG
- Operating temperature range -40�C to 105�C
- Mates with FTS, FTSH, EHF, SHF, ESHF shrouded terminal strips and ejector headers
- High reliability Tiger Eye contacts
- Wide variety of wiring options including reverses, daisy chains
Applications
Industrial
Product details
| No. of Contacts | 10Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Receptacle |
| Product Range | FFSD Series |
| Contact Material | Beryllium Copper |
| Contact Termination Type | IDC / IDT |
| Pitch Spacing | 1.27mm |
| No. of Rows | 2Rows |
Other details
| Brand | SAMTEC |
| Part Number | FFSD-05-01-N |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
