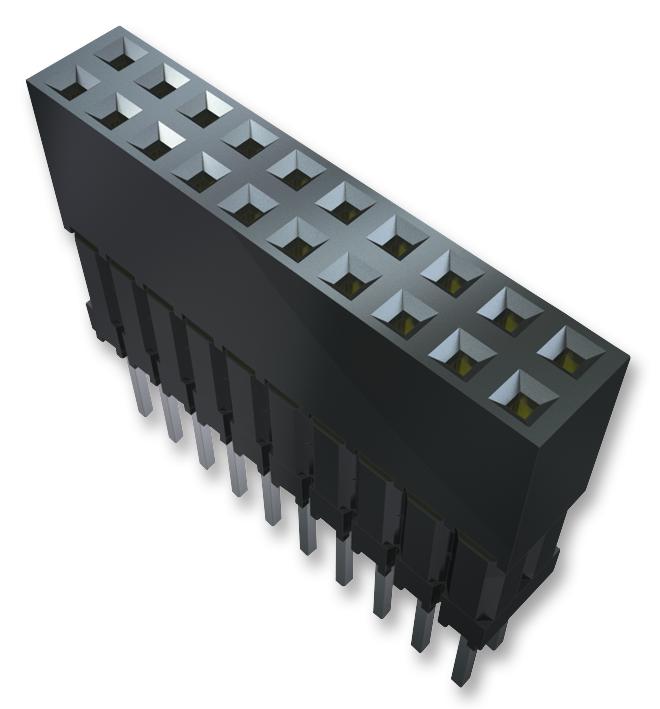

Samtec ESQ-132-23-L-D PCB Receptacle Elevated Strip Board-to-Board 2.54 mm 2 Rows 64 Contacts Through Hole Mount

The ESQ series from Samtec are PC/104 through hole elevated socket strips. It mates with Samtec TSW, MTSW, EW, MTLW, TSS, ZSS, TSM, DW, ZW, HW, TSSH and HTSS series of connectors. These are self nesting socket strips which has standard and low insertion force contacts with 0.025" (0.635mm) square tail.

• Orderable with single/dual/triple rows (-S/-D/-T option)
• Pitch spacing is 2.54mm (1 to 36 contacts per row) with vertical orientation
• High operating temperature range of -55°C to 125°C for 10µ" gold plated contacts
• Contact material is phosphor bronze
• Black glass filled polyester insulator material
• Tiger Buy contact system
• Mating cycles of 100
• Complies with UL E111594 and CSA 090871_0_000 standards

Applications

Industrial

Other details

Brand	SAMTEC
Part Number	ESQ-132-23-L-D
Quantity	Each
Technical Data Sheet EN
