Description

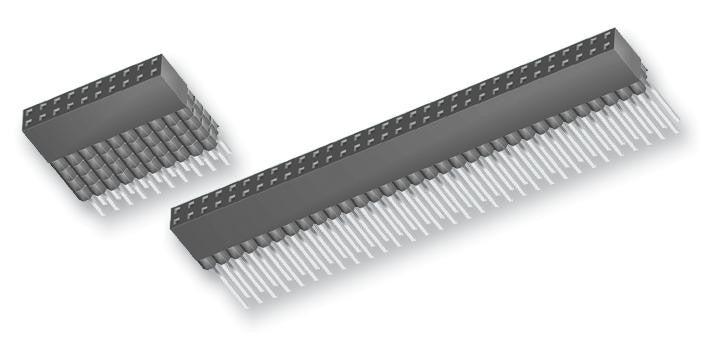

The ESQ-120-12-G-D is a 40-pole 2-row 2.54mm Elevated Socket Strip with 20µinch (0.51µm) gold-plated phosphor bronze contacts and glass filled polyester insulator. The ESQ series socket strip is compatible with DW, EW, HHSC, HMTSW, HTSS, HTSW, HW-SM, HW-TH, LCW, MTLW, MTSW, PHT, TSM, TSS, TSSH, TSW, ZSS and ZW series connectors.
- Orderable with single/dual/triple rows (-S/-D/-T option)
- Pitch spacing is 2.54mm (1 to 36 contacts per row) with vertical orientation
- High operating temperature range of -55°C to 125°C for 20µ" gold plated contacts
- Contact material is phosphor bronze
- Black glass filled polyester insulator material
- Tiger Buy contact system
- Complies with UL E111594 and CSA 090871_0_000 standards
Applications
Industrial
Product details
| No. of Contacts | 40Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Receptacle |
| Product Range | ESQ Series |
| Contact Material | Phosphor Bronze |
| Contact Termination Type | Solder |
| Pitch Spacing | 2.54mm |
| No. of Rows | 2Rows |
Other details
| Brand | SAMTEC |
| Part Number | ESQ-120-12-G-D |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1116.48 |
| 3-5 | ₹ 1105.09 |
| 5-10 | ₹ 1082.31 |
| 10+ | ₹ 1059.52 |
Bulk discount will be automatically applied during checkout based on quantity.
