Description

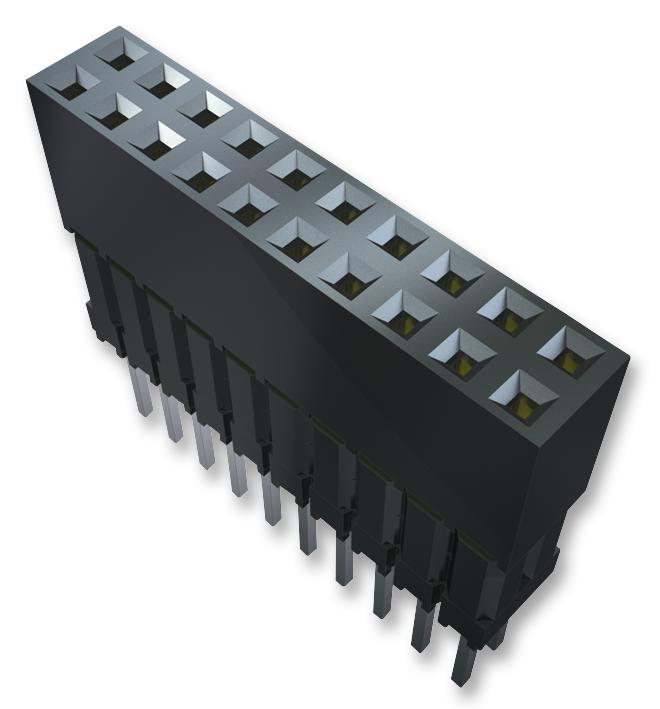

The ESQ series from Samtec are PC/104 through hole elevated socket strips. It mates with Samtec TSW, MTSW, EW, MTLW, TSS, ZSS, TSM, DW, ZW, HW, TSSH and HTSS series of connectors. These are self nesting socket strips which has standard and low insertion force contacts with 0.025" (0.635mm) square tail.
- Orderable with single/dual/triple rows (-S/-D/-T option)
- Pitch spacing is 2.54mm (1 to 36 contacts per row) with vertical orientation
- High operating temperature range of -55?C to 105?C for matte tin plated contacts
- Contact material is phosphor bronze
- Black glass filled polyester insulator material
- Tiger Buy contact system
- Complies with UL E111594 and CSA 090871
- 0
- 000 standards
Applications
Industrial
Product details
| Connector Systems: Board-to-Board |
| Pitch Spacing: 2.54mm |
| No. of Rows: 1Rows |
| No. of Contacts: 15Contacts |
| Connector Mounting: Through Hole Mount |
| Product Range: ESQ |
| Contact Material: Phosphor Bronze |
| Contact Plating: Tin Plated Contacts |
Other details
| Brand | SAMTEC |
| Part Number | ESQ-115-13-T-S |
| Quantity | Each |
| Technical Data Sheet EN |  |
