| ₹ 974.41 includes GST and import duties. | |
| B2B customers can avail ₹ 148.6 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

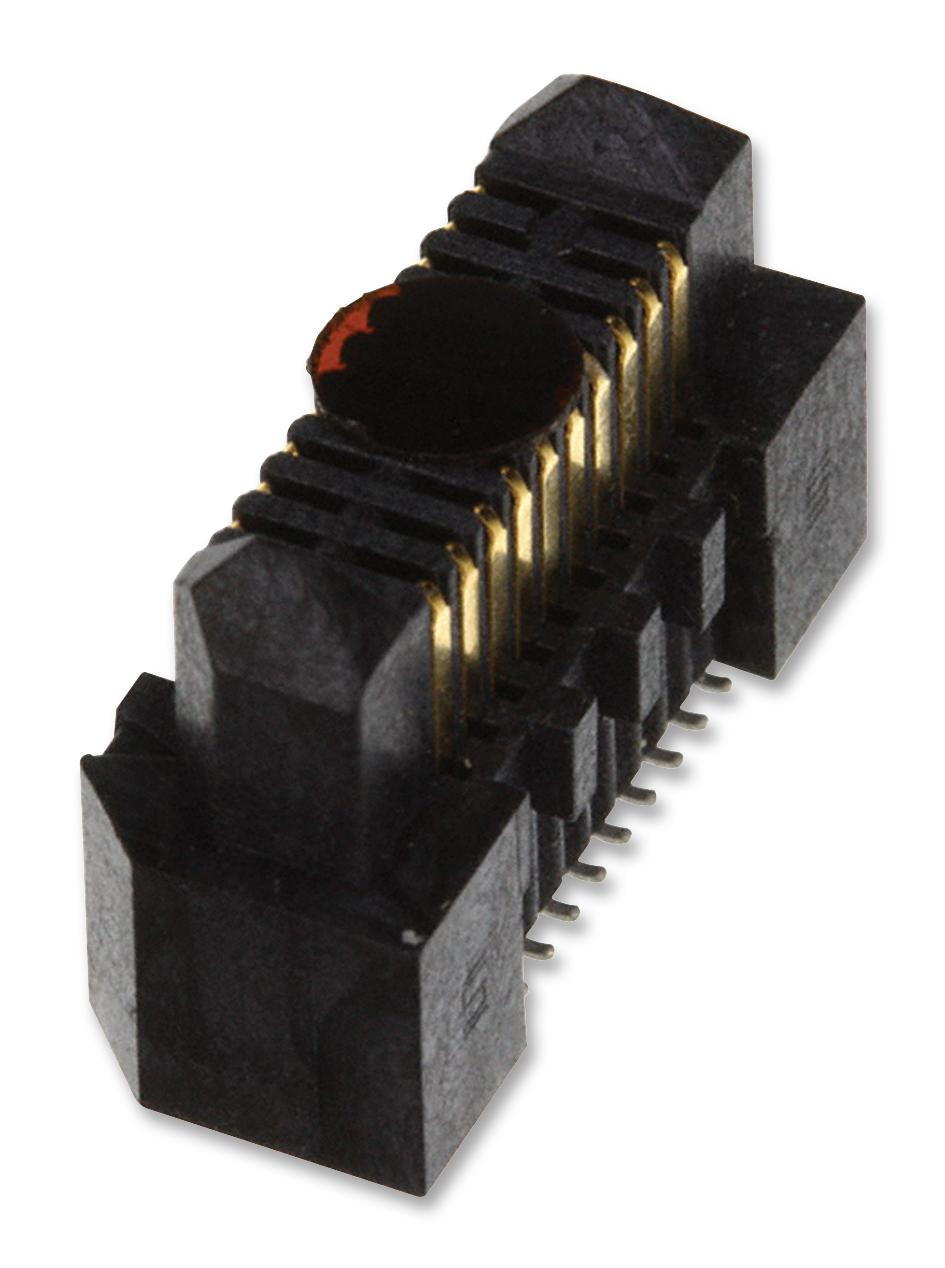

The ERM8 series from Samtec are 0.80mm (0.0315") Edge Rate? rugged high speed terminal strips. These terminal strips are available in various options including differential pair (DS), 0.157" dia polyimide film pick & place pad (K), latching (L), extended guide post (EGP), extended guide post shield (EGPS), differential pair + extended guide post (DSP) and differential pair + extended guide post shield (DSS). It mates with ERF8 series 0.80mm Edge Rate? rugged high speed socket strips, ERCD series 0.80mm Edge Rate? high speed coax cable assemblies and ERDP series 0.80mm Edge Rate? high speed twinax cable assemblies.
- Smooth broad milled contact surface for increased wear life
- Double vertical rows with positions up to 200 and stack height from 7mm to 16mm
- UL E111594 qualified
- Samtec 28+Gbps solution, hot swap option
- Supports 100GbE, PCI Express? protocols
- 10?" gold on contact, matte tin on tail or 30?" gold on contact, matte tin on tail plating options
- Black LCP insulator material, phosphor bronze terminal material
- Current rating is 2.2A per pin (1 pin powered per row)
- Voltage rating is 225VAC / 318VDC
- Operating temperature range from -55?C to +125?C
Industrial
Other details
| Brand | SAMTEC |
| Part Number | ERM8-030-05.0-L-DV-L-K-TR |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
| Drawing EN | |
| One Page Summary EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 954.92 |
| 3-5 | ₹ 945.18 |
| 5-10 | ₹ 925.69 |
| 10+ | ₹ 906.2 |
Bulk discount will be automatically applied during checkout based on quantity.
