Description

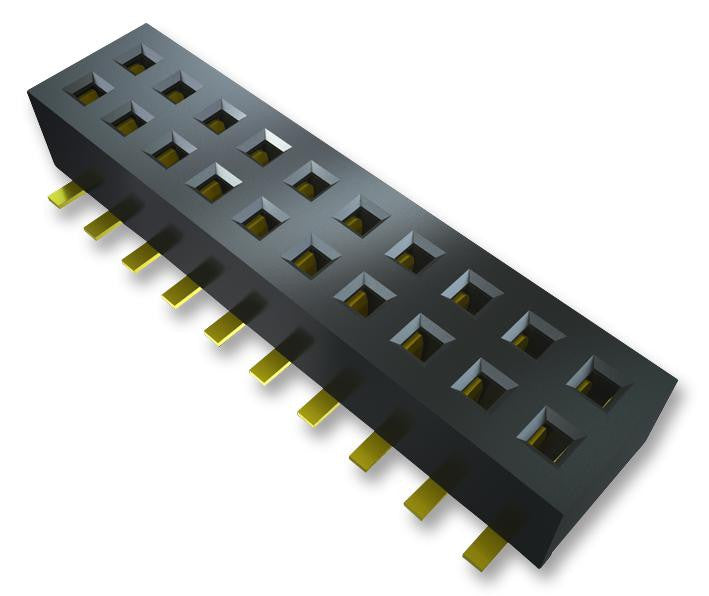

The CLP series from Samtec are Tiger Claw low profile rugged reliable dual wipe socket strips. These surface mount socket strips mates with Samtec FTSH, FTS and FW series of connectors.
- Pitch spacing is 1.27mm (2 to 50 contacts per row) with double row (-D)
- High operating temperature range of -55°C to 125°C
- Contact material is phosphor bronze
- Black liquid crystal polymer insulator material
- Voltage rating is 240VAC/340VDC
- Complies with UL E111594 standard
- Gold flash plated contacts
Applications
Industrial
Product details
| No. of Contacts | 20Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Receptacle |
| Product Range | CLP Series |
| Contact Material | Phosphor Bronze |
| Contact Termination Type | Surface Mount |
| Pitch Spacing | 1.27mm |
| No. of Rows | 2Rows |
Other details
| Brand | SAMTEC |
| Part Number | CLP-110-02-F-D |
| Quantity | Each |
| Technical Data Sheet EN |  |
