Description

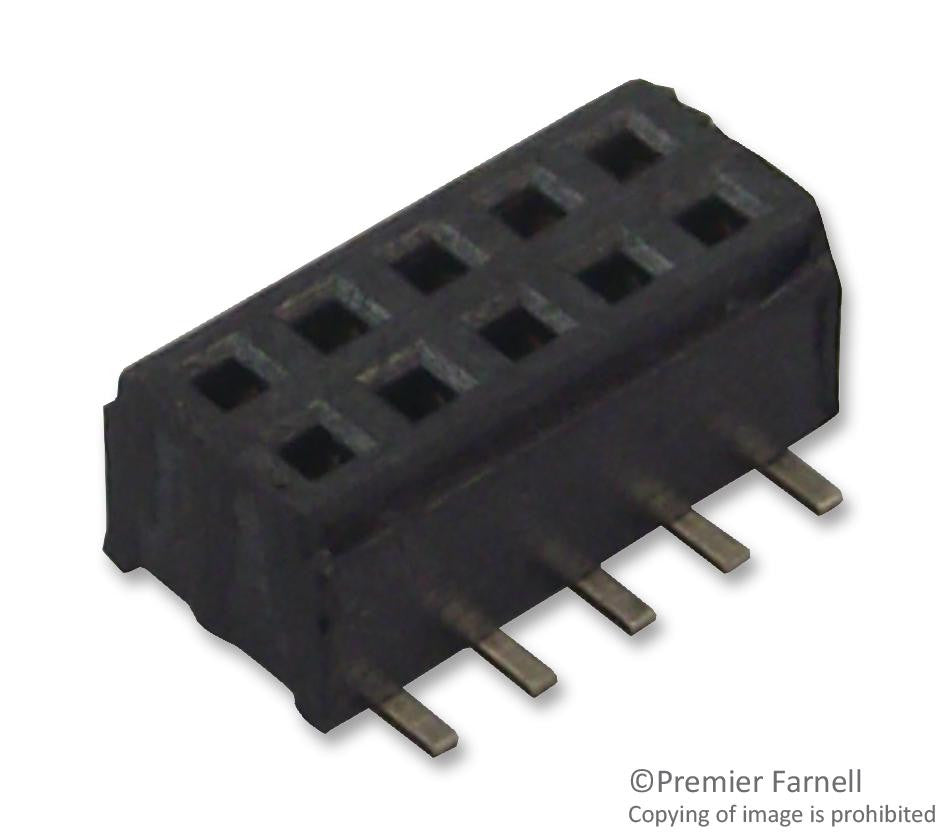

The CLM-105-02-L-D is a 10-pole 2-row 1mm Tiger Claw� Rugged Reliable Micro Socket Strip with 10�inch (0.25�m) gold-plated phosphor bronze contacts, matte tin plated tail and LCP insulator. The CLM series socket strip is compatible with FTM, FTMH and MW series connectors.
- 2.8A Current rating
- 15mR Contact resistance
- 1.5oz (0.42N) Average insertion force
- 40g (0.39N) Average normal force
- 0.75oz (0.21N) Average withdrawal force
- Lead-free solderable
- Black colour
Applications
Industrial
Product details
| No. of Contacts | 10Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Receptacle |
| Product Range | CLM Series |
| Contact Material | Phosphor Bronze |
| Contact Termination Type | Surface Mount |
| Pitch Spacing | 1mm |
| No. of Rows | 2Rows |
Other details
| Brand | SAMTEC |
| Part Number | CLM-105-02-L-D |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
