Samtec CES-116-01-T-S CES-116-01-T-S PCB Receptacle Board-to-Board 2.54 mm 1 Rows 16 Contacts Through Hole Mount CES

The CES-116-01-T-S is a 16-pole 1-row 2.54mm Closed Entry Low Profile Socket Strip with matte tin-plated phosphor bronze contacts and GF polyester insulator. The CES series closed entry low profile socket strip is compatible with TLW, TSW, MTLW, MTSW, HW, EW, ZW, HTSW, HMTSW and TSM series connectors.

• Orderable with single/dual rows (-S/-D options)
• Pitch spacing is 2.54mm (1 to 50 contacts per row) with straight orientation
• High operating temperature range of -55?C to 105?C for matte tin plated contacts
• Black glass filled polyester insulator material
• Voltage rating is 400VAC
• Contact resistance is 10mohm
• Dual leaf contact system
• Complies with UL E111594 and CSA 090871
• 0
• 000 standards

• Contact material is phosphor bronze

Applications

Industrial

Other details

Brand	SAMTEC
Part Number	CES-116-01-T-S
Quantity	Each
Technical Data Sheet EN
Drawing EN

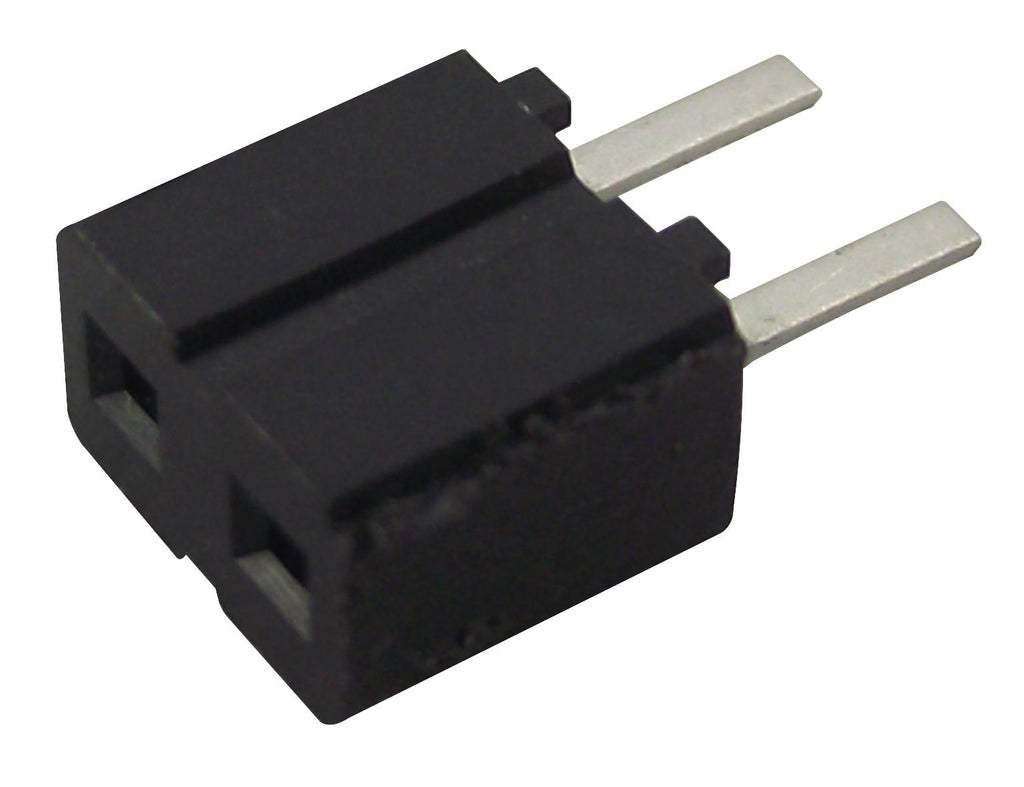

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
