| ₹ 183949.02 includes GST and import duties. | |
| B2B customers can avail ₹ 28052.23 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

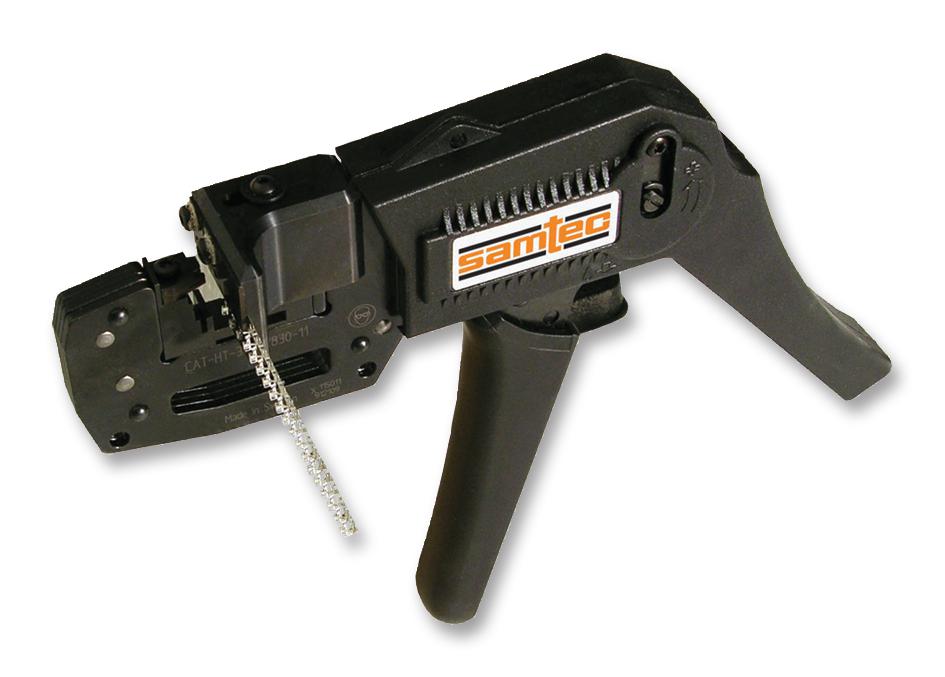

The CAT-HT-203-2832-11 is a Straight Action Hand Tool designed to crimp CC03 (SFSD series) contacts. The front of the tool is marked with the tool part number, wire size ranges and crimp height specifications. The tool features a movable die (anvil) and a ratchet. The locator/insulation stop positions the contact and limits the insertion distance of the stripped wire into the contact. In use the locator/insulation stop rests in the locator slot of the contact. The ratchet assures full crimping of the contact. Once engaged the ratchet will not release until the dies have been fully closed.
- Fixed die
- Locator/insulation stop
Maintenance & Repair
Other details
| Brand | SAMTEC |
| Part Number | CAT-HT-203-2830-12 |
| Quantity | Each |
| Operating Instructions EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 180270.04 |
| 3-5 | ₹ 178430.55 |
| 5-10 | ₹ 174751.57 |
| 10+ | ₹ 171072.59 |
Bulk discount will be automatically applied during checkout based on quantity.
