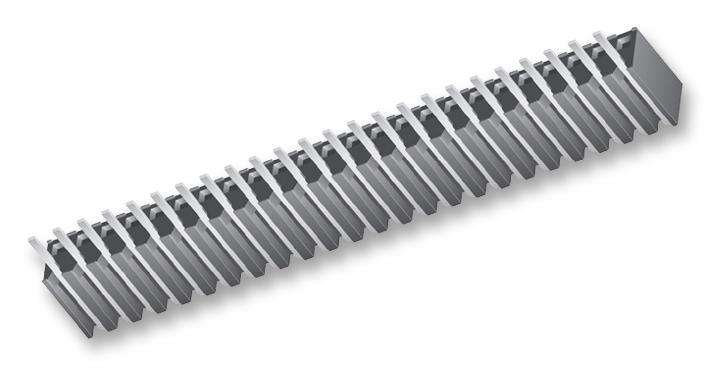

Samtec BSW-115-04-T-S PCB Receptacle Bottom Entry Board-to-Board 2.54 mm 1 Rows 15 Contacts Through Hole Mount BSW

The BSW series from Samtec are Tiger Buy bottom entry socket strips. These are through hole socket strips with 0.025" (0.635mm) square post and mates with Samtec TSW, MTSW, HTSW, MTLW, TSM, EW, ZW, HW, DW and PHT series of connectors. BSW series has standard and low insertion force contacts with standard solder tails and mounts on the underside of PCB for extra low profile applications.

• Single row/single row more plug space/single row extended plug space/dual row (-S/-E/-M/-D) options
• Pitch spacing is 2.54mm (2 to 36 contacts per row) with vertical orientation
• Ideal for soldering and plugging from the same side of the board
• Low profile connections and high temperature soldering
• Black thermoplastic insulator material
• Contact material is phosphor bronze
• High operating temperature range of -55?C to 105?C for matte tin plated contacts
• Contact resistance is 10mohm
• Complies with UL E111594 and CSA 090871
• 0
• 000 standards
• Standoff options for single and double rows
