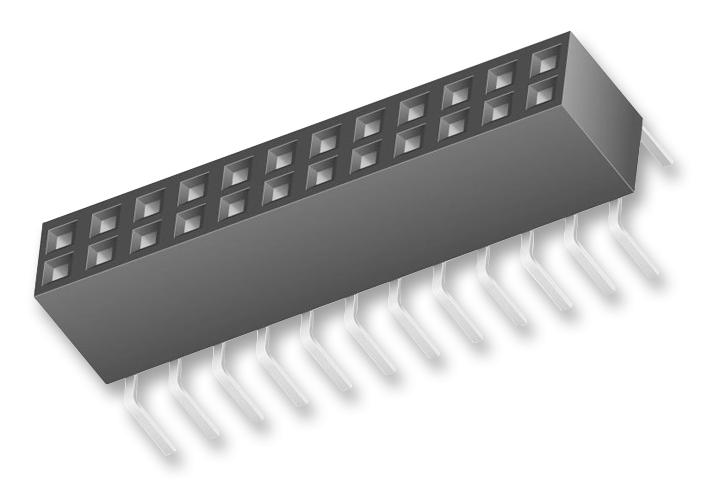

Samtec BCS-109-L-D-PE BCS-109-L-D-PE PCB Receptacle Board-to-Board 2.54 mm 2 Rows 18 Contacts Through Hole Mount Tiger Claw BCS

The BCS series from Samtec are Tiger Claw pass through socket strips. These through hole socket strips mates with Samtec TSW, MTSW, HTSW, HMTSW, TSS, ZSS, DW, EW, ZW, HW, TSM, MTLW and PHT series of connectors.

• Orderable with single and dual row (-S/-D) options
• Pitch spacing is 2.54mm (1 to 50 contacts per row)
• Featured with pass through entry (-PE) option
• Black liquid crystal polymer insulator material
• Contact material is phosphor bronze
• 10?" gold plated contacts
• Tiger Claw contact system
• Contact resistance is 10mohm
• Complies with UL E111594 and CSA 090871
• 0
• 000 standards
• High operating temperature range of -55?C to 125?C

Applications

Industrial

Other details

Brand	SAMTEC
Part Number	BCS-109-L-D-PE
Quantity	Each
Technical Data Sheet EN
