₹ 376.11 includes GST and import duties. | |
B2B customers can avail ₹ 57.36 ITC on this product | |
100% Secure Payments | 100% Genuine product |
Description

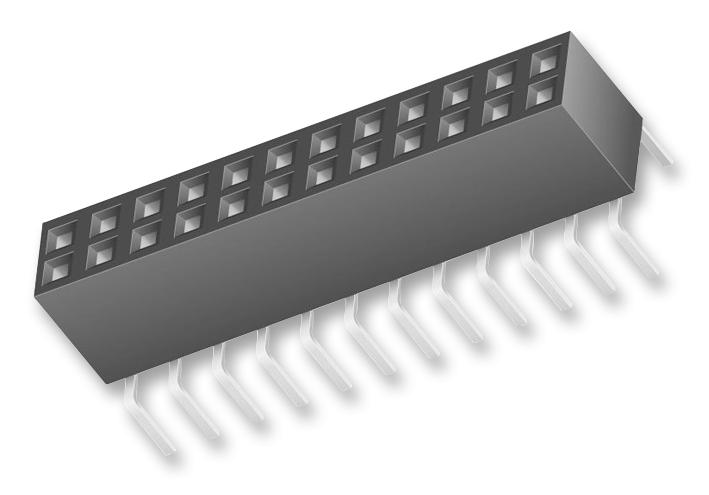

The BCS series from Samtec are Tiger Claw pass through socket strips. These through hole socket strips mates with Samtec TSW, MTSW, HTSW, HMTSW, TSS, ZSS, DW, EW, ZW, HW, TSM, MTLW and PHT series of connectors.
- Orderable with single and dual row (-S/-D) options
- Pitch spacing is 2.54mm (1 to 50 contacts per row)
- Featured with pass through entry (-PE) option
- Black liquid crystal polymer insulator material
- Contact material is phosphor bronze
- 10?" gold plated contacts
- Tiger Claw contact system
- Contact resistance is 10mohm
- Complies with UL E111594 and CSA 090871
- 0
- 000 standards
- High operating temperature range of -55?C to 125?C
Industrial
Other details
Brand | SAMTEC |
Part Number | BCS-104-L-D-PE |
Quantity | Each |
Technical Data Sheet EN |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
Quantity | Price |
2 | ₹ 368.59 |
3-5 | ₹ 364.83 |
5-10 | ₹ 357.3 |
10+ | ₹ 349.78 |
Bulk discount will be automatically applied during checkout based on quantity.
