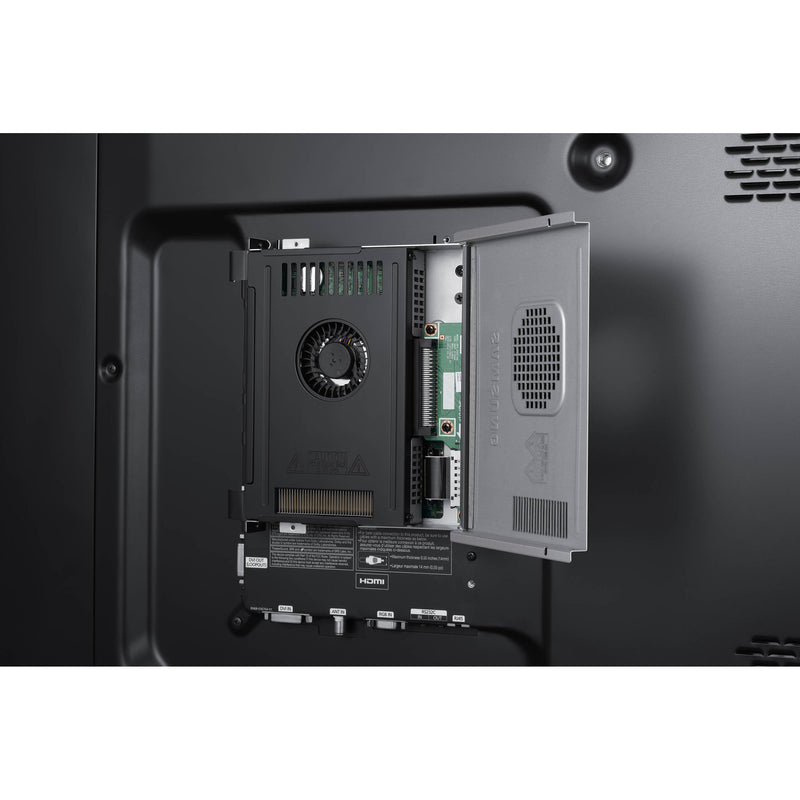

Provided by third party: The Samsung Plug-in Module is a slim and lightweight PC that simply plugs in to the SMART Signage, with no need for external connection cables. By transferring power and signals internally, the need for extra computers and clutter, can be avoided. Without having to maneuver heavy desktops or laptops, the Samsung Plug-in Module also helps users save time and effort whilst reducing the risk of damage or injury to the product.
| General |
| Device Type | Digital signage player |
| Width | 7.9 in |
| Depth | 7.1 in |
| Height | 1.4 in |
| Weight | 2.65 lbs |
| Display |
| Output Resolution on External Monitor | 3840 x 2160 |
| Processor |
| Manufacturer | AMD |
| Type | RX425BB |
| Installed Qty | 1 |
| Number of Cores | Quad-Core |
| Clock Speed | 2.5 GHz |
| RAM |
| Form Factor | SO-DIMM 204-pin |
| Technology | DDR3 SDRAM |
| Installed Size | 4 GB |
| Connectivity |
| Connections | LAN (Gigabit Ethernet)
2 x USB 2.0
2 x USB 3.0
Microphone
Audio line-out
DisplayPort output |
| Miscellaneous |
| Compliant Standards | FCC Class A certified, CSA, UL, TUV, VCCI, C-Tick, BSMI, cUL, NEMKO, CCC, KCC, KC |
| Environmental Parameters |
| Min Operating Temperature | 50 �F |
| Max Operating Temperature | 104 �F |
| Humidity Range Operating | 10 - 80% |
