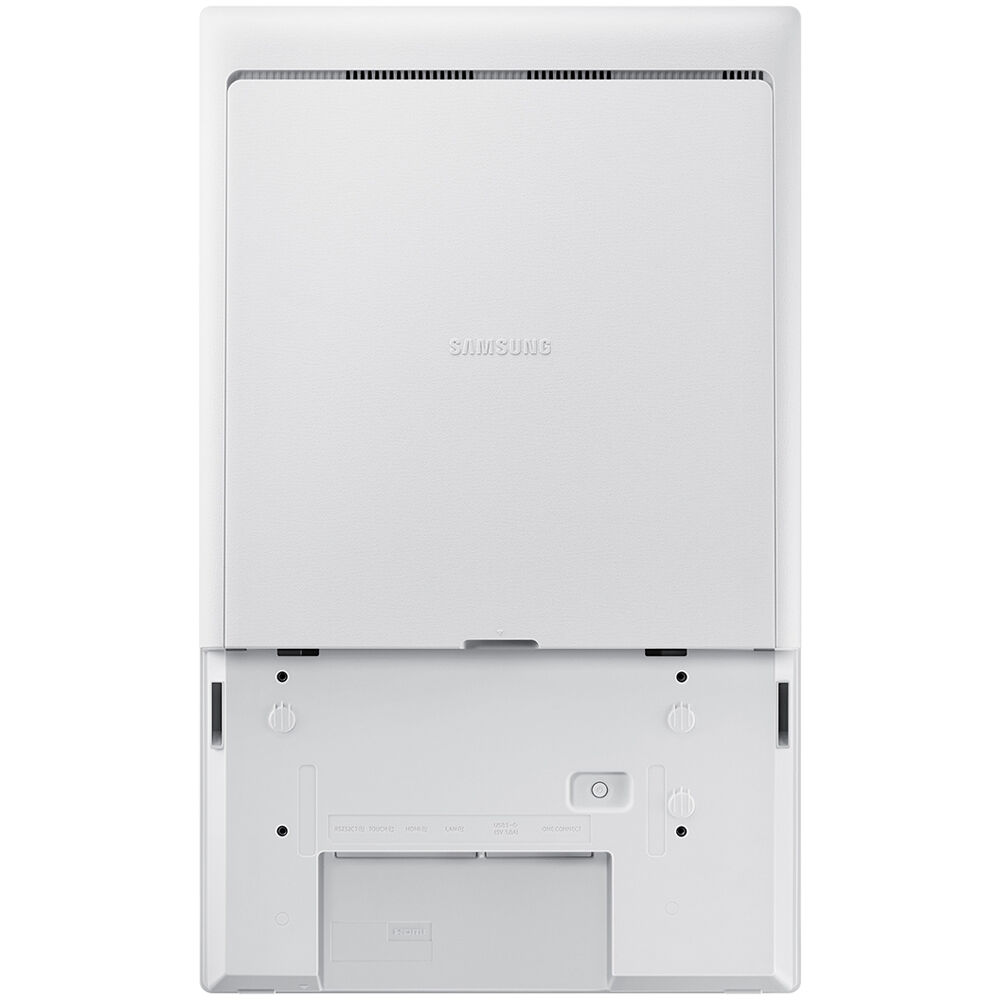

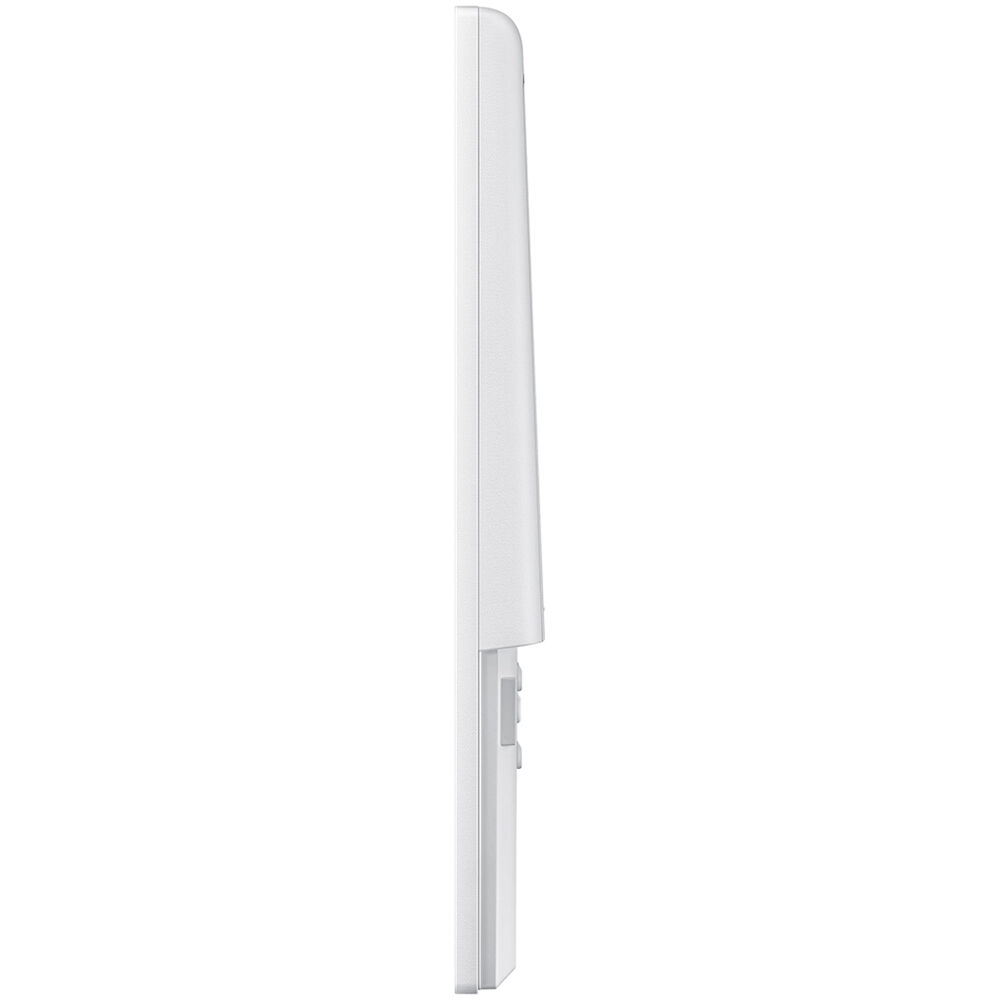

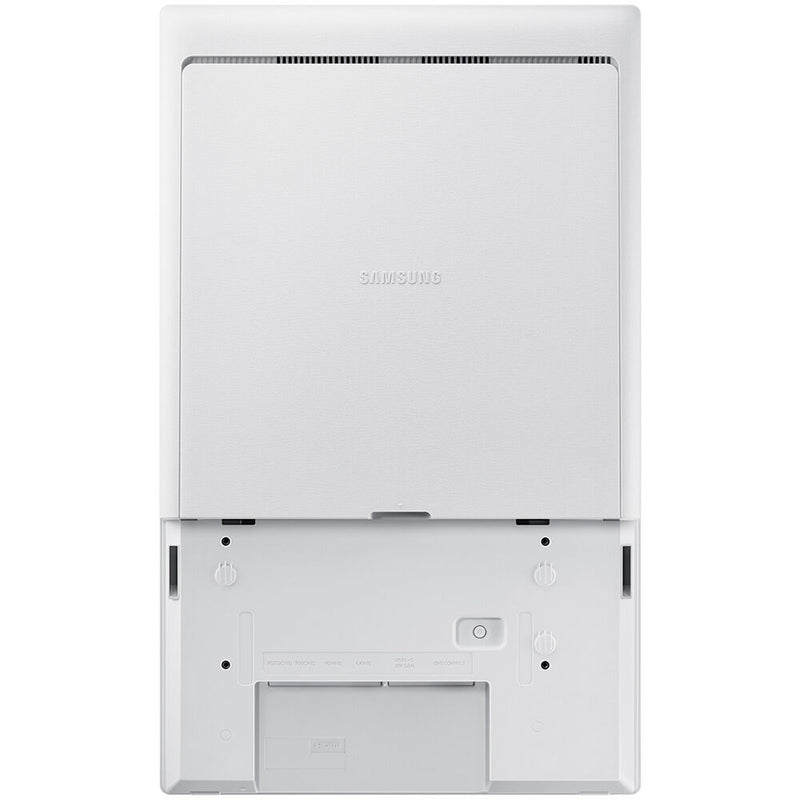

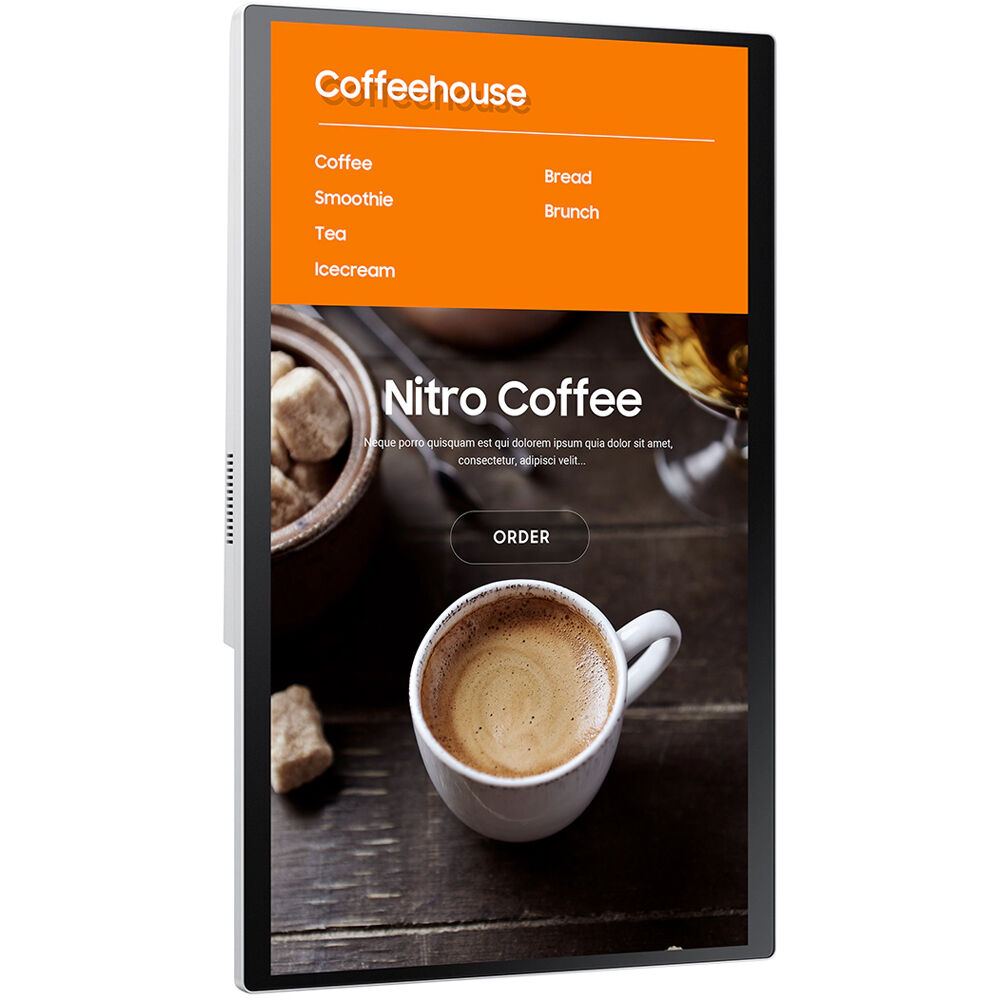

Samsung KM24A Tizen Kiosk 24" Full HD Touchscreen Commercial Monitor (Screen Only)

Display Only

The KM24A is a 24" interactive display. For true all-in-one kiosk functionality, you will want to combine it with the KM24A-P Kiosk Connection Box. The connection box connects to the display via Samsung One Connect to enable modular functionality, including credit card, barcode, QR code, and NFC sensors, along with a built-in printer. It also provides a stable base for countertop and wall mounting. Furthermore, you can create a free-standing floor display by mounting the control box to the Samsung STN-KM24A Stand for 24" Kiosk. Control box and floor stand are sold separately.

Anti-Microbial and Shatter Resistant Screen

The Samsung Kiosk screen is treated with an antimicrobial coating to protect the panel from degradation, and a shatter-resistant film to ensure the screen stays intact in the event of a break. Please note, this helps mitigate the hazards of shattered glass, but it does not protect the screen from physical impact.

Secure Self Service

Three-layer security protection powered by Samsung Knox technology supports application development on a secured platform, guarding important customer data and minimizing security attacks.

Control and Monitor Your Fleet from Anywhere

Samsung Kiosk is a proven remote monitoring solution, allowing managers to view display information, check peripheral devices, and resolve errors. Remote control capabilities enable diagnosis of issues and execution of essential functions such as switching the screen on and off. A MagicINFO license must be purchased separately for use of management solution.

Samsung KM24A Specs

Display Size	24"
Native Resolution	1920 x 1080
Maximum Brightness	250 nits / cd/m2
Touchscreen Technology	Capacitive
Inputs	1x HDMI 1x Proprietary
Outputs	No
Wireless	Wi-Fi
USB I/O	1x USB-B (Unspecified Version) (Touchscreen Control) 1x USB-A (Unspecified Version) (Audio/Charging/Photo/Video)
Ethernet I/O	1x RJ45
Other I/O	1x 1/8" / 3.5 mm Serial (RS-232C) Control Input
Built-In Speakers	Yes, 1x 5 W
Media Card Reader	No

Display Size	24"
Panel Type	IPS-Type LCD
Aspect Ratio	16:9
Display Orientation	Portrait
Native Resolution	1920 x 1080
Maximum Brightness	250 nits / cd/m2
Contrast Ratio	1000:1
Response Time	14 ms (GtG)
Refresh Rate	60 Hz
Color Gamut	72% NTSC
Viewing Angle (H x V)	178 x 178°
Horizontal Frequency	48 to 75 kHz
Vertical Frequency	56 to 84.5 Hz
Pixels Per Inch (ppi)	92 ppi
Finish	Anti-Glare / Matte, Anti-Bacterial

Touchscreen Technology	Capacitive
Multi-Touch Points	10
Haze Level	25%

TV Tuner

No

Inputs	1x HDMI 1x Proprietary
Outputs	No
HDCP Support	Yes
Wireless	Wi-Fi
NFC	No
USB I/O	1x USB-B (Unspecified Version) (Touchscreen Control) 1x USB-A (Unspecified Version) (Audio/Charging/Photo/Video)
Ethernet I/O	1x RJ45
Other I/O	1x 1/8" / 3.5 mm Serial (RS-232C) Control Input
Ambient Light Sensor	No
Multi-Input Support (PIP/PBP)	No

Built-In Speakers	Yes, 1x 5 W
Speaker Configuration	1-Channel

Smart TV	Tizen 4.0
CPU	Quad-Core: Up to 1.7 GHz Cortex A72
Storage	8 GB
RAM	3 GB LPDDR4
Media Card Reader	No
Built-In Mic	No

Power Consumption	Operational: 49.5 W Standby: 0.5 W
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Adapter Type	Internal

Operating Conditions	32 to 104°F / 0 to 40°C at 10 to 80% Humidity
Certifications	ENERGY STAR
Mounting-Hole Pattern	200 x 200 mm
Environmental Resistance	Dust-Resistant (IP5X)
Impact Resistance	No
Bezel Thickness	17.9 mm (Bottom/Top) 9.4 mm (Right/Left)
Duty Cycle	16 Hours / 7 Days
Dimensions	21.6 x 13.2 x 1.9" / 547.9 x 334.4 x 48.8 mm
Weight	9.7 lb / 4.4 kg
