Description

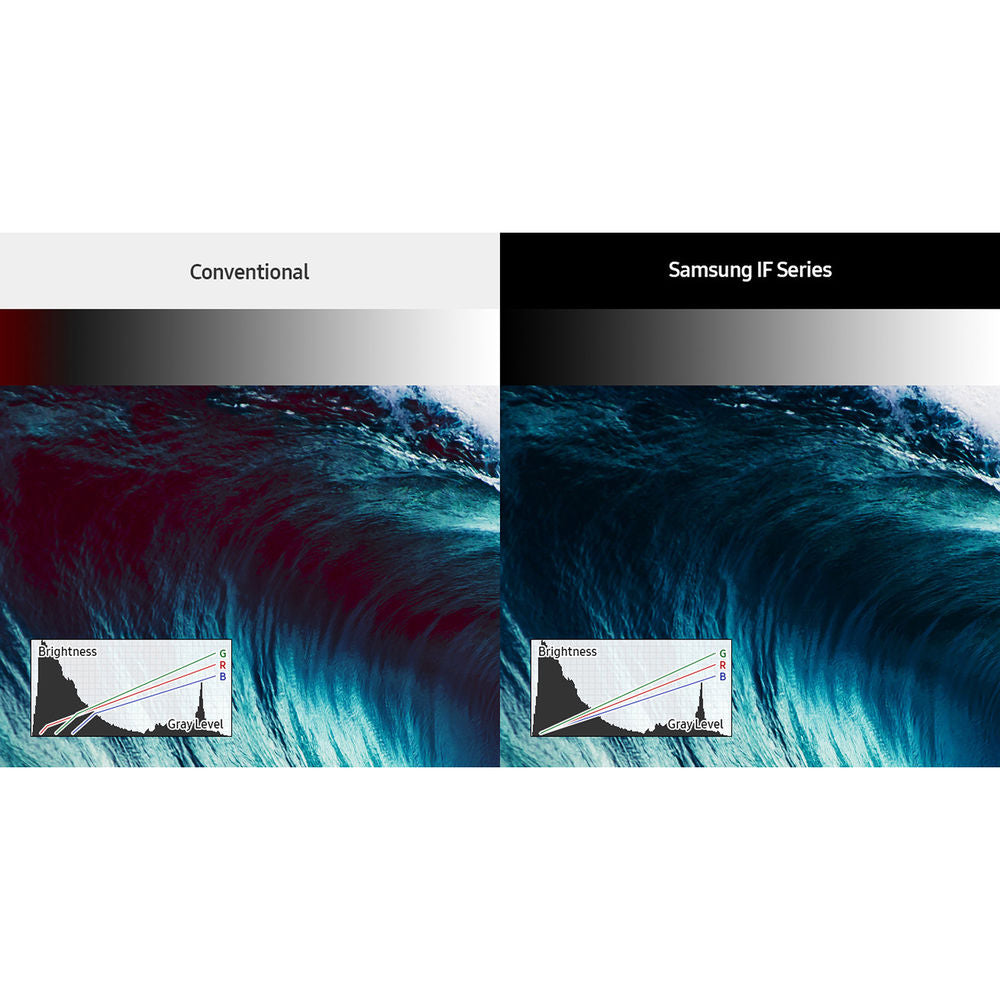

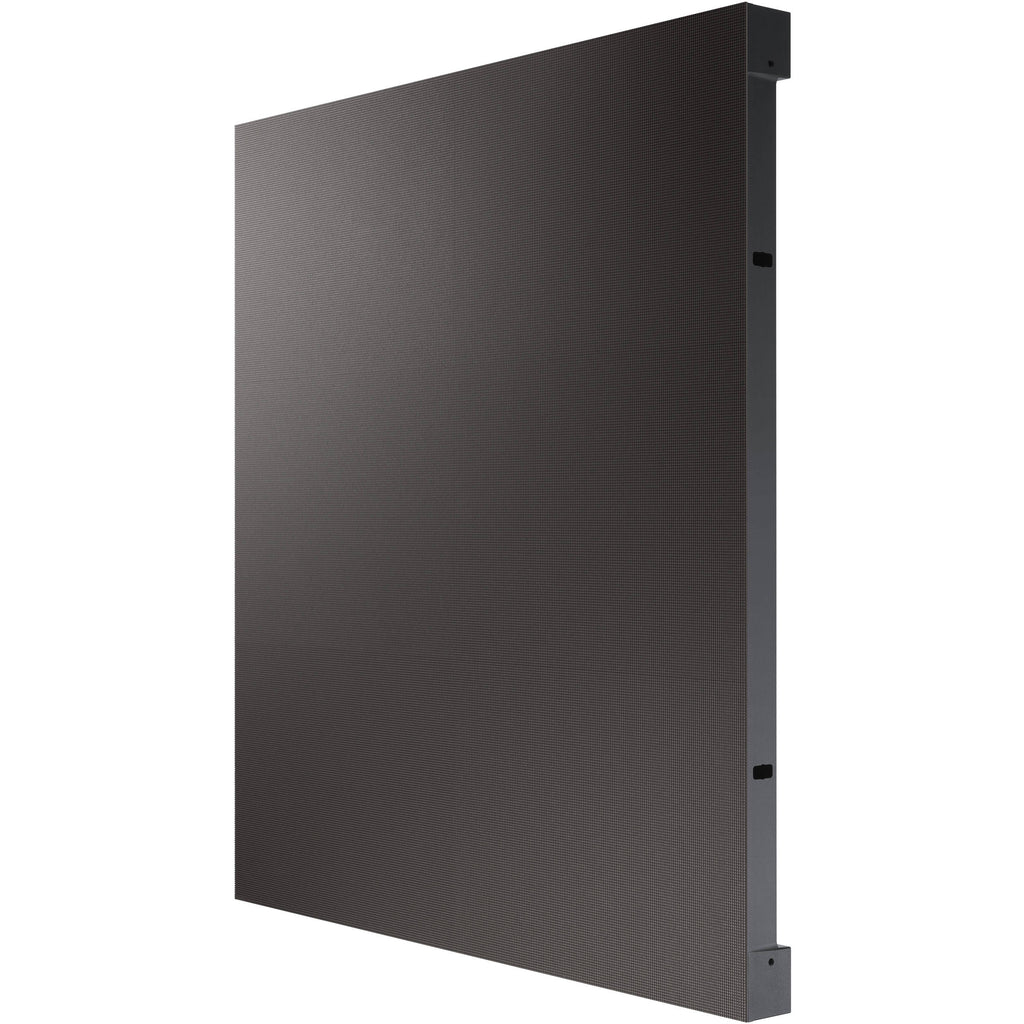

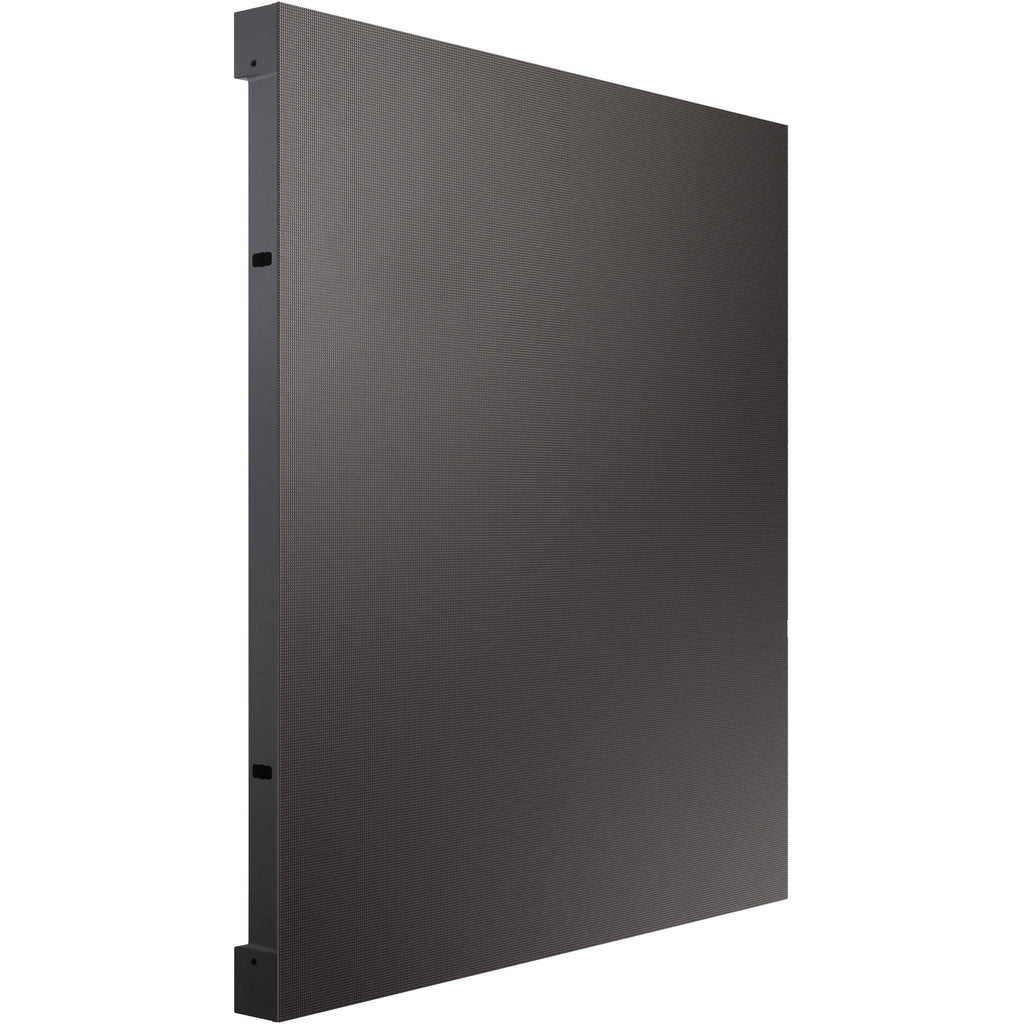

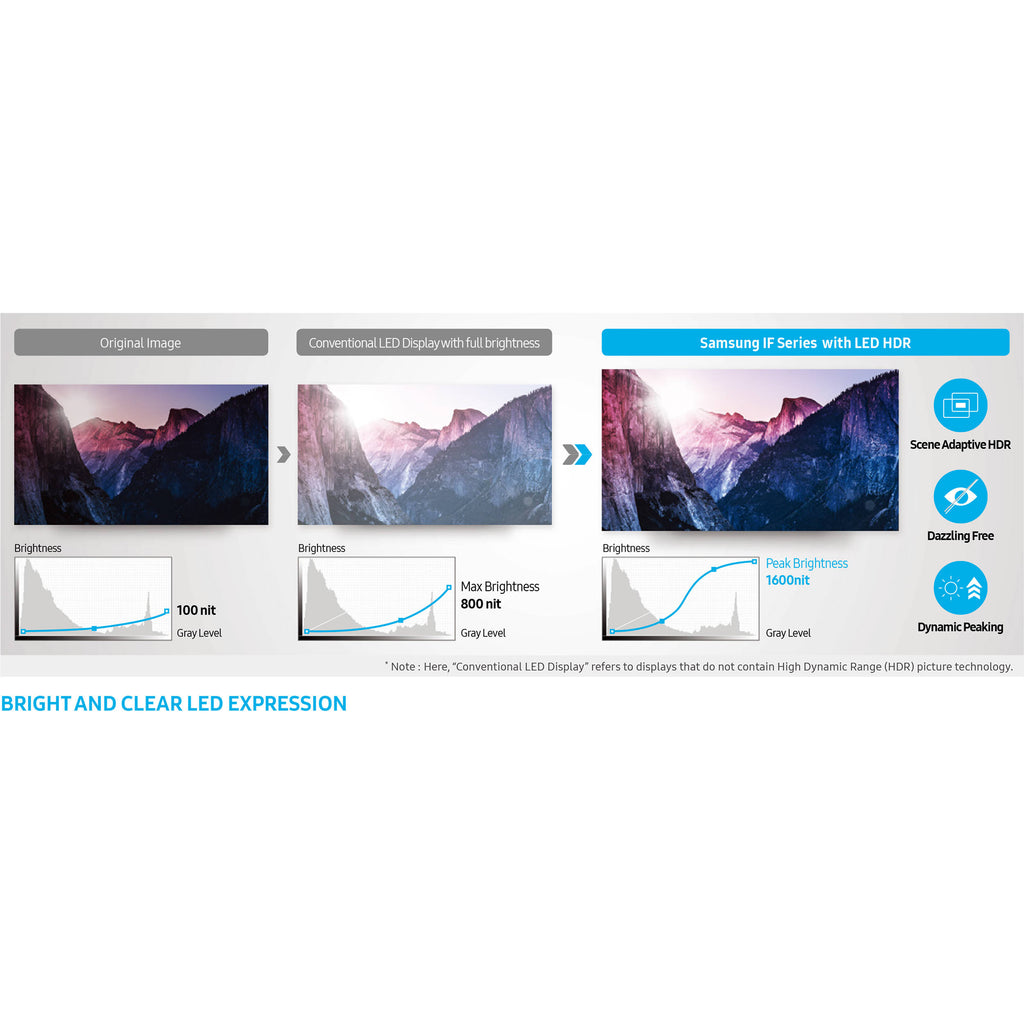

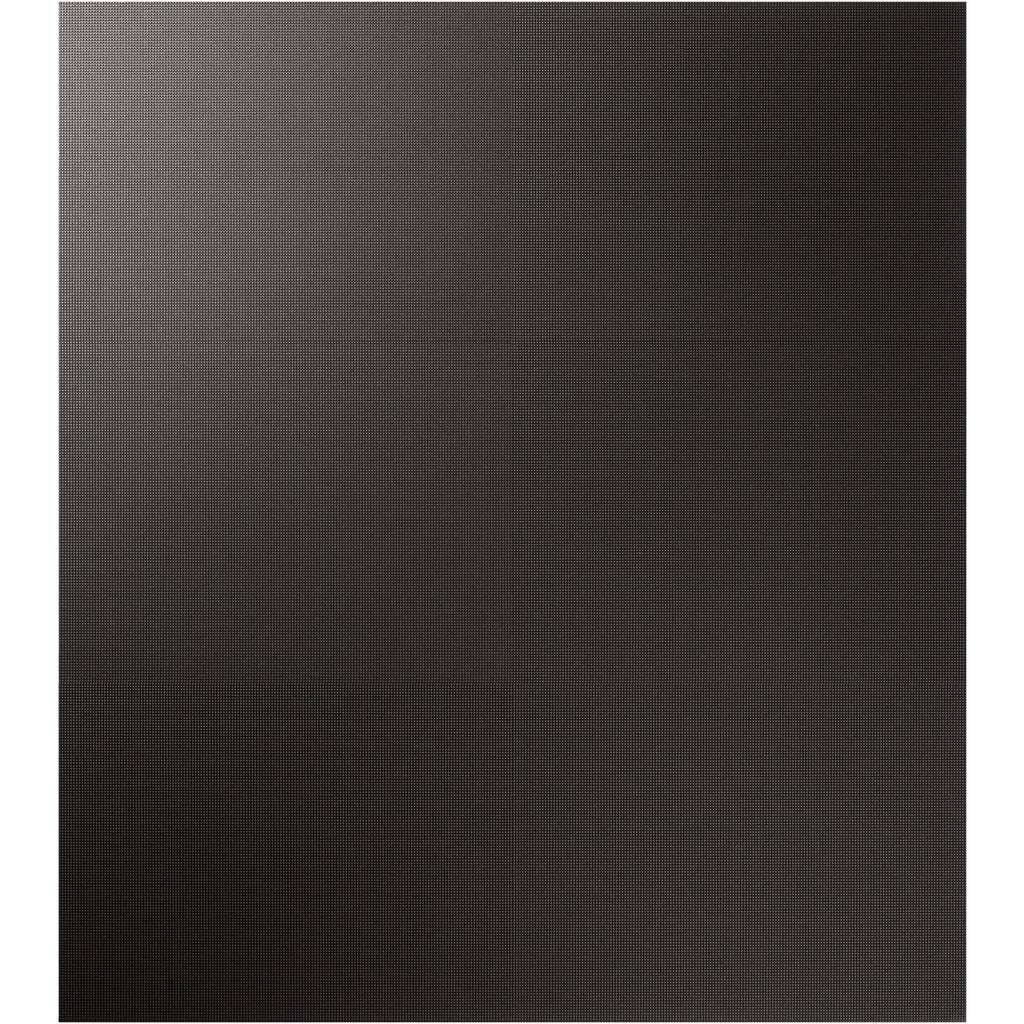

Equipped with an LED HDR scene adaptation technology and customized algorithms, the IF015H 1.5mm Pixel Pitch Indoor LED Signage Display Cabinet from Samsung analyzes and optimizes gradation and brightness levels within individual content scenes while also preventing dazzling. Incorporating a grayscale management algorithm, it maintains consistent Red/Green/Blue gradation for improved color accuracy and is suitable for low-brightness indoor environments such as galleries, museums, and shops.

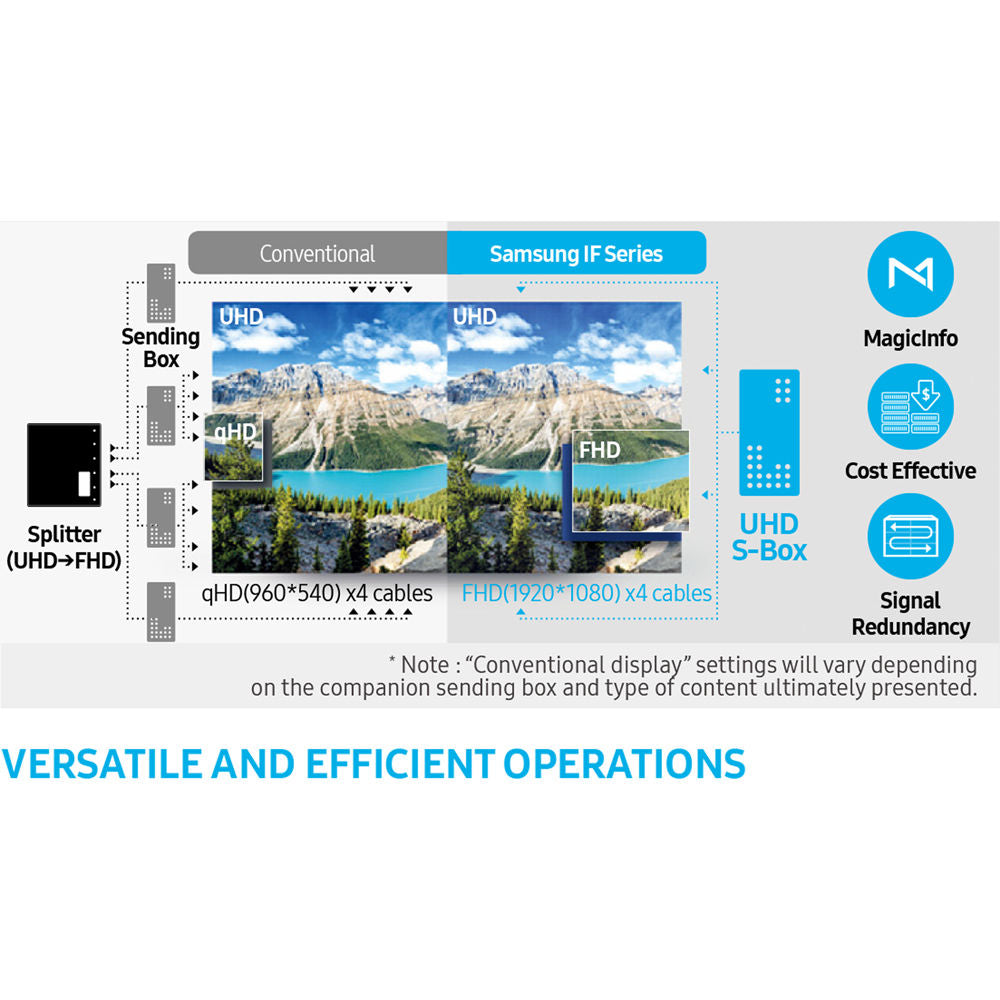

The LED Signage Box (S-Box) transmits UHD content across multiple screens from a single source, eliminating the need for an expensive splitter or multiple external boxes. You can use the existing cable structures to easily configure signal redundancy. The integrated Samsung MagicInfo content platform makes content creation, scheduling, and deployment easier. With LED Signage Manager, the unit quickly identifies common performance errors such as LED dot disruptions, power fluctuations, and temperature irregularities.
- Dynamic peaking
- Embedded receiver
- Advanced color calibration

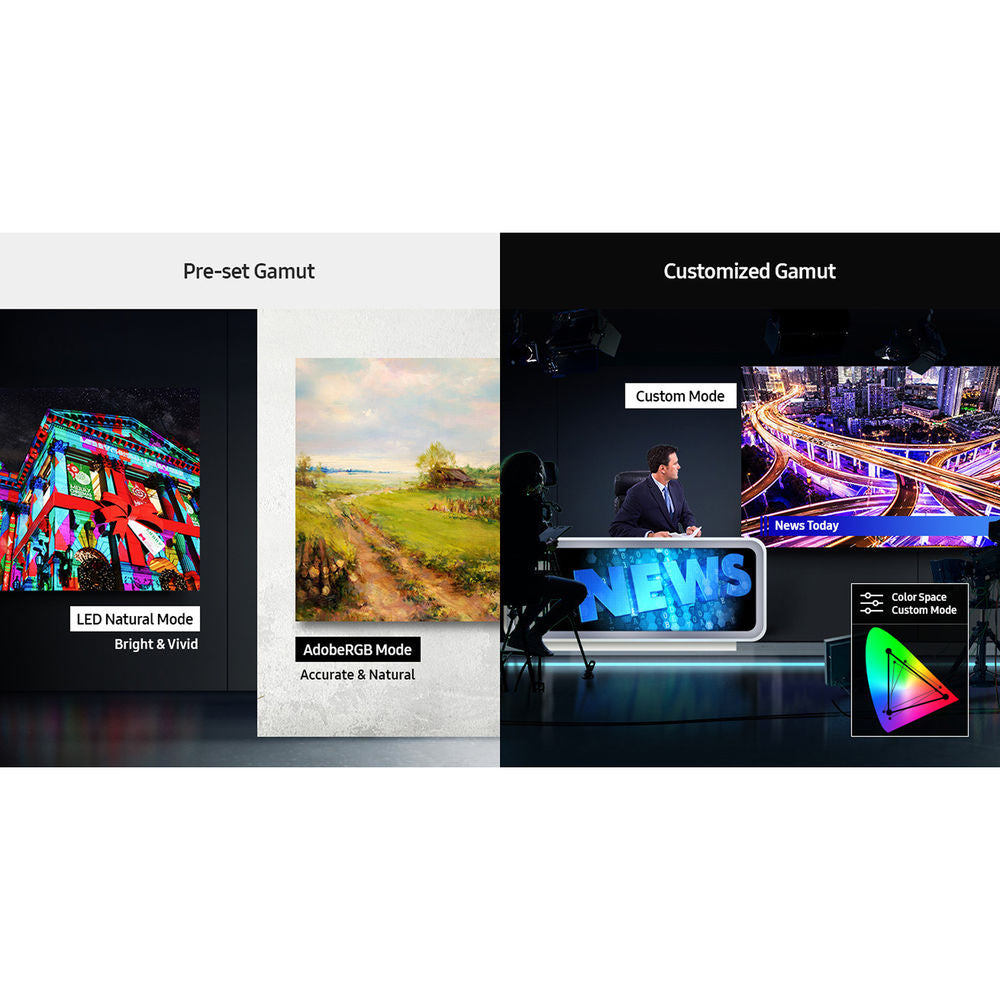

- Compatible with color gamut settings such as sRGB, Adobe RGB, and LED Natural Mode spectra

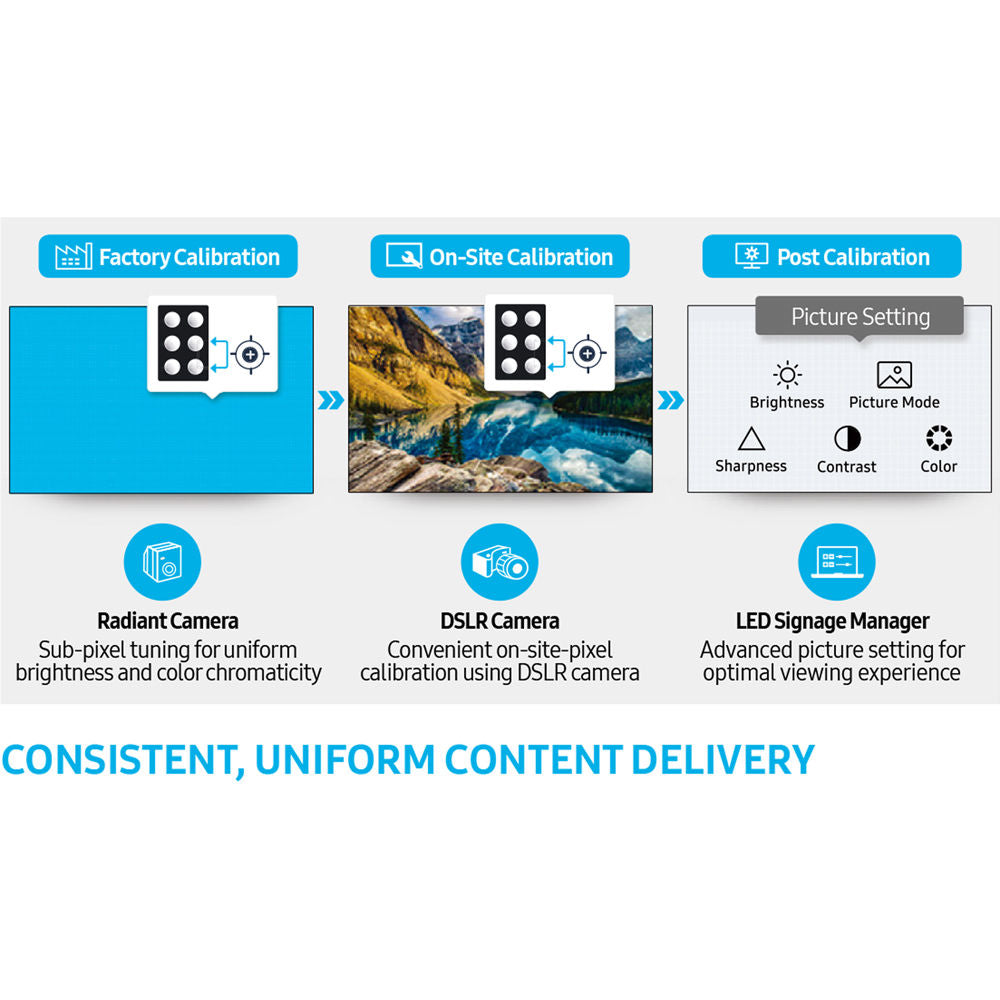

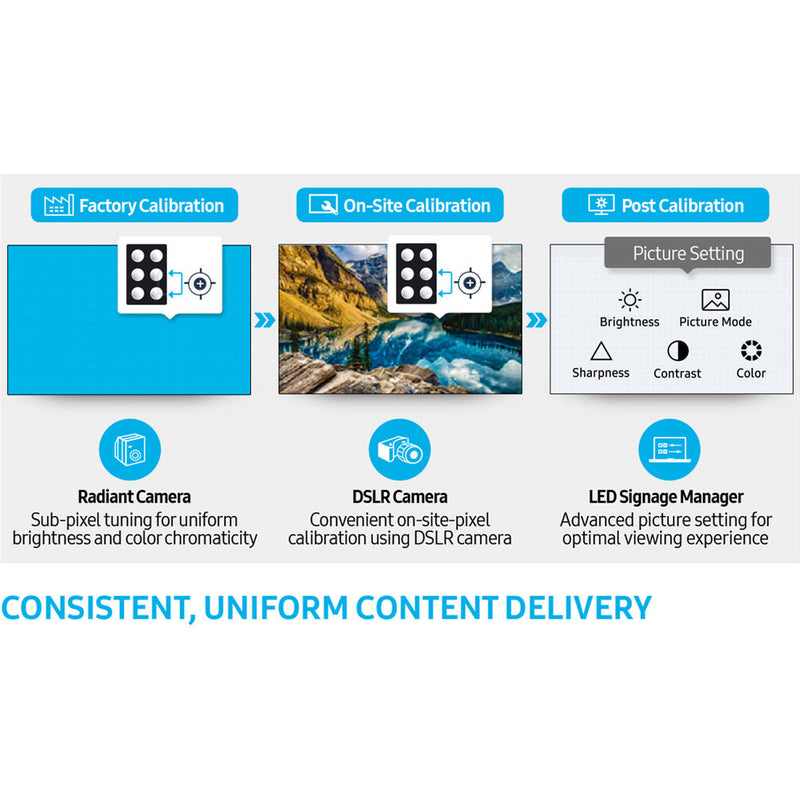

- Radiant camera for sub-pixel tuning for uniform brightness and color chromaticity
- Onsite pixel calibration using DSLR camera
- LED Signage Manager with advanced picture setting

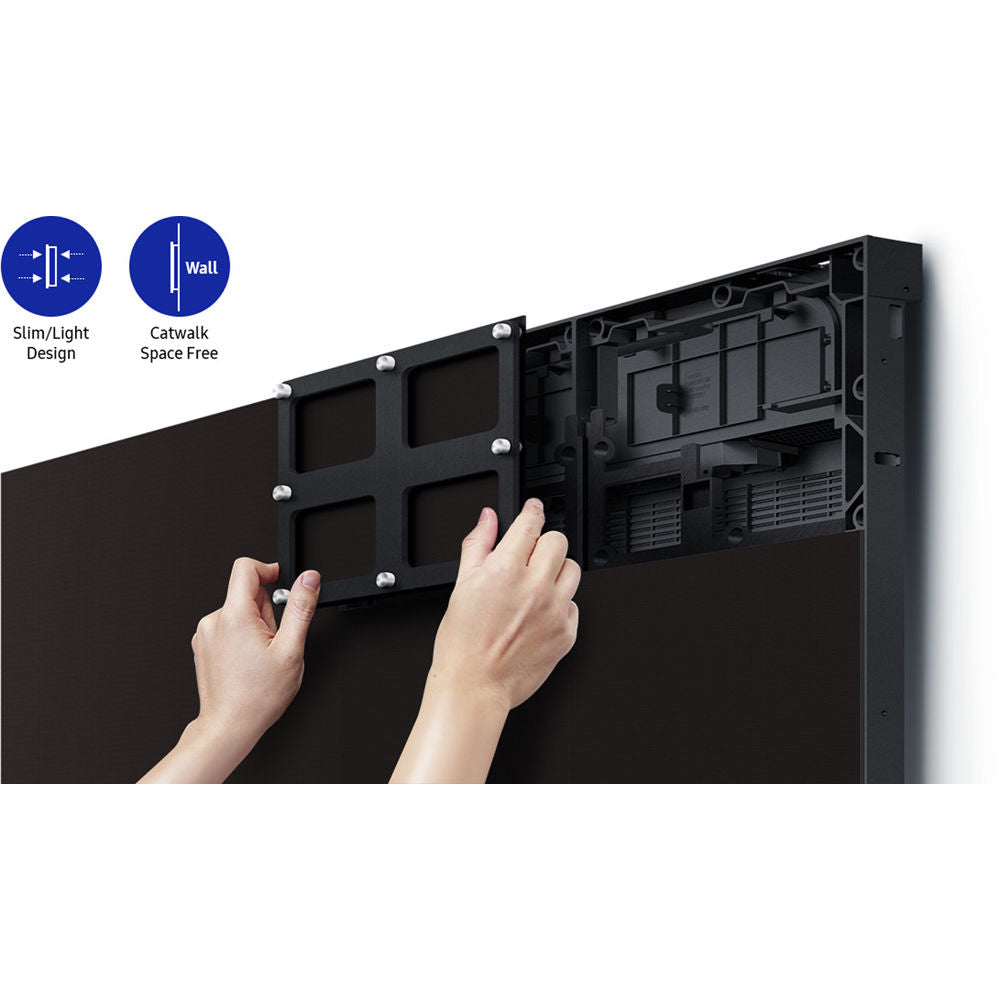

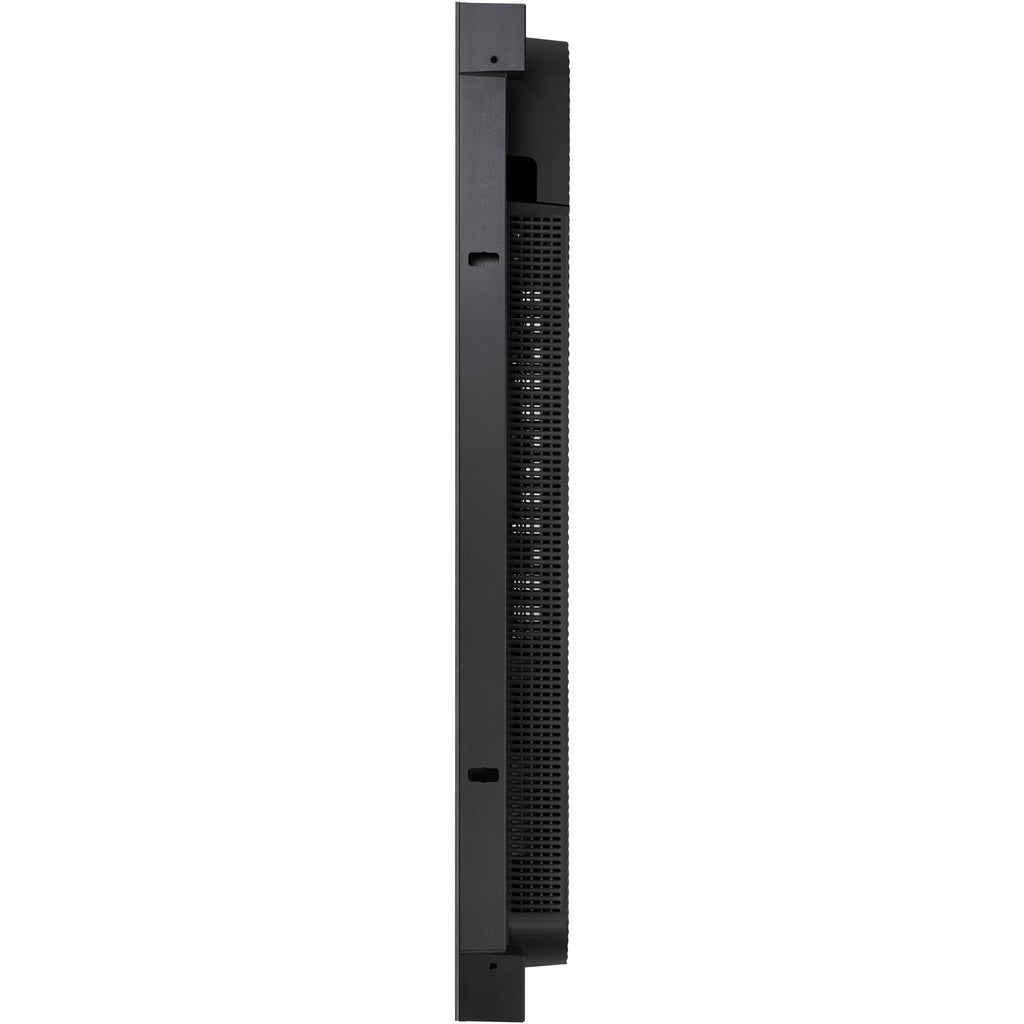

- Full-front access to critical signage components and complementary rear access for easy installation and maintenance

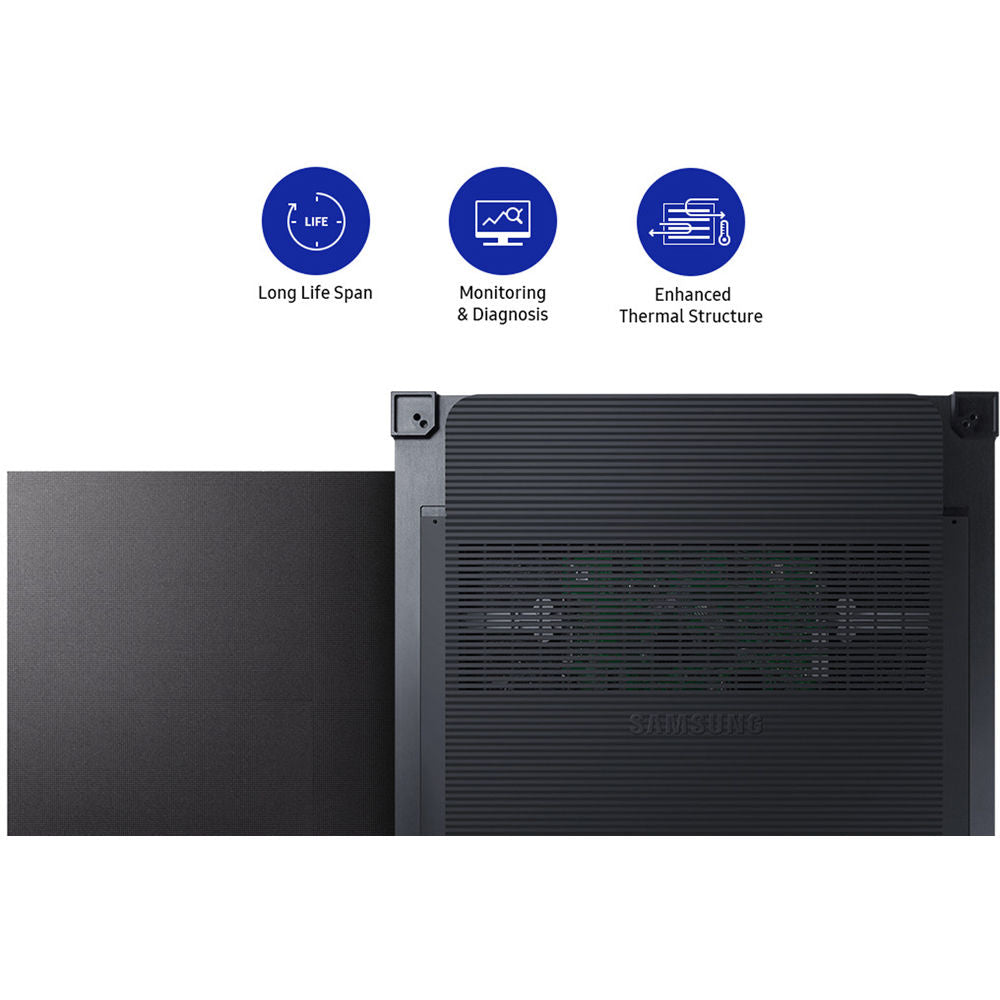

- Advanced temperature and ventilation management capabilities

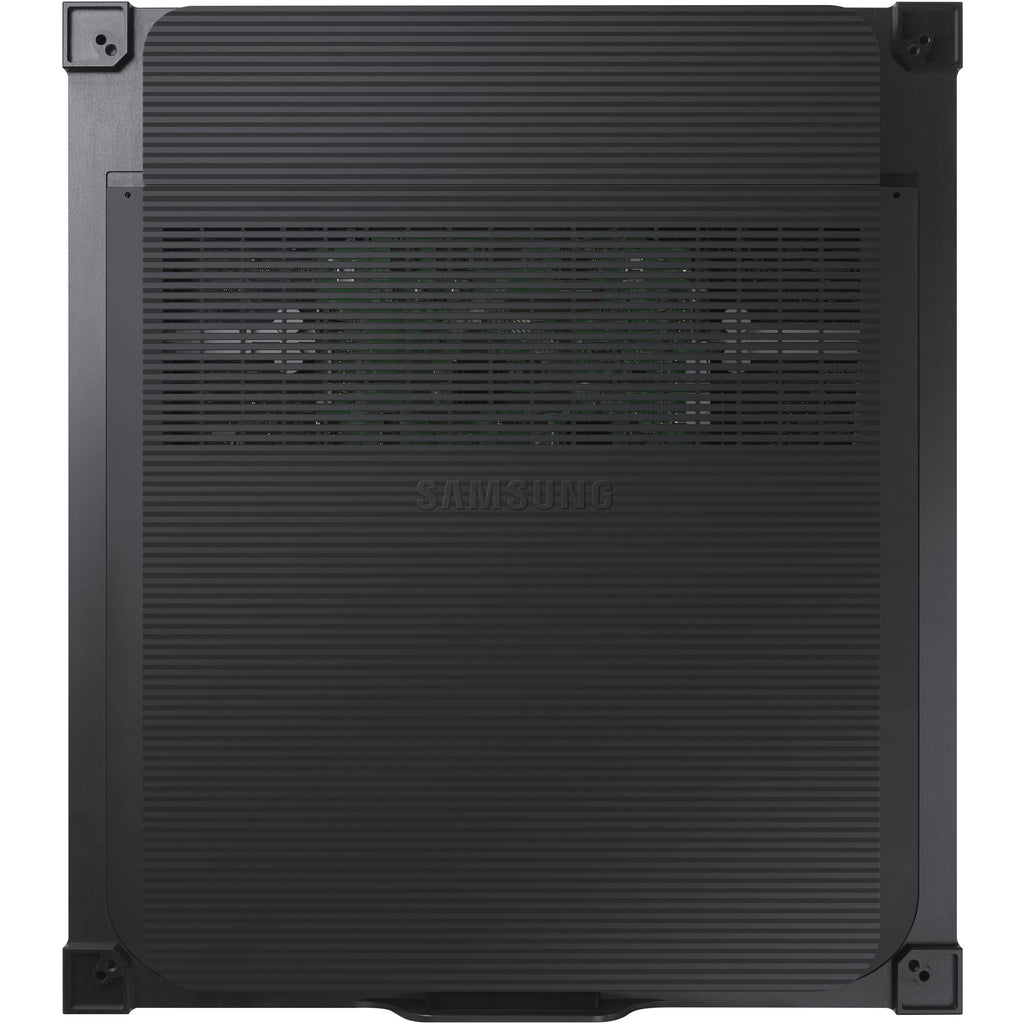

- Fanless design to minimize the impact of dust and rigid particle exposure
| Pixel Pitch | 1.5 mm |
| Diode Type | LED |
| Pixel Configuration | 1 red, 1 green, 1 blue |
| Pixel Density | 41,290 ft 2 (444,444 m 2 ) |
| Resolution | 320 x 360 pixels |
| Brightness | After Calibration: 800 cd/m 2 |
| Contrast Ratio | 5000:1 |
| Viewing Angle | Horizontal/Vertical: 160°/160° |
| Bit Depth | 16-bit per color |
| Color Temperature | Default: 6500K Adjustable: 2800 to 10,000K |
| Video Rate | 50/60 Hz |
| Input Power | 100 to 240 VAC, 50/60 Hz |
| Maximum Power Consumption | 772 W/m 2 / 200 W/Cabinet |
| Typical Power Consumption | 257 W/m 2 / 67 W/Cabinet |
| Heat Dissipation | Maximum: 245 BTU/SF per hour |
| Working Temperature | 32 to 104°F (0 to 40°C) |
| IP Rating | IP20 |
| LED Lifetime | 100,000 hours to half brightness |
| Certification | EMC Class A, Safety 60950 |
| Service | Front service and/or rear service |
| Mount | Surface mount |
| Dimensions | 18.9 x 21.3 x 2.6" (480 x 540 x 65 mm) |
| Weight | 13.2 lb (6 kg) |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
