Description
Samson SWMC88HQ6-K Overview
- 1 Description
- 2 Easy Setup
- 3 Wireless Handheld Microphone
- 4 Receiver Module

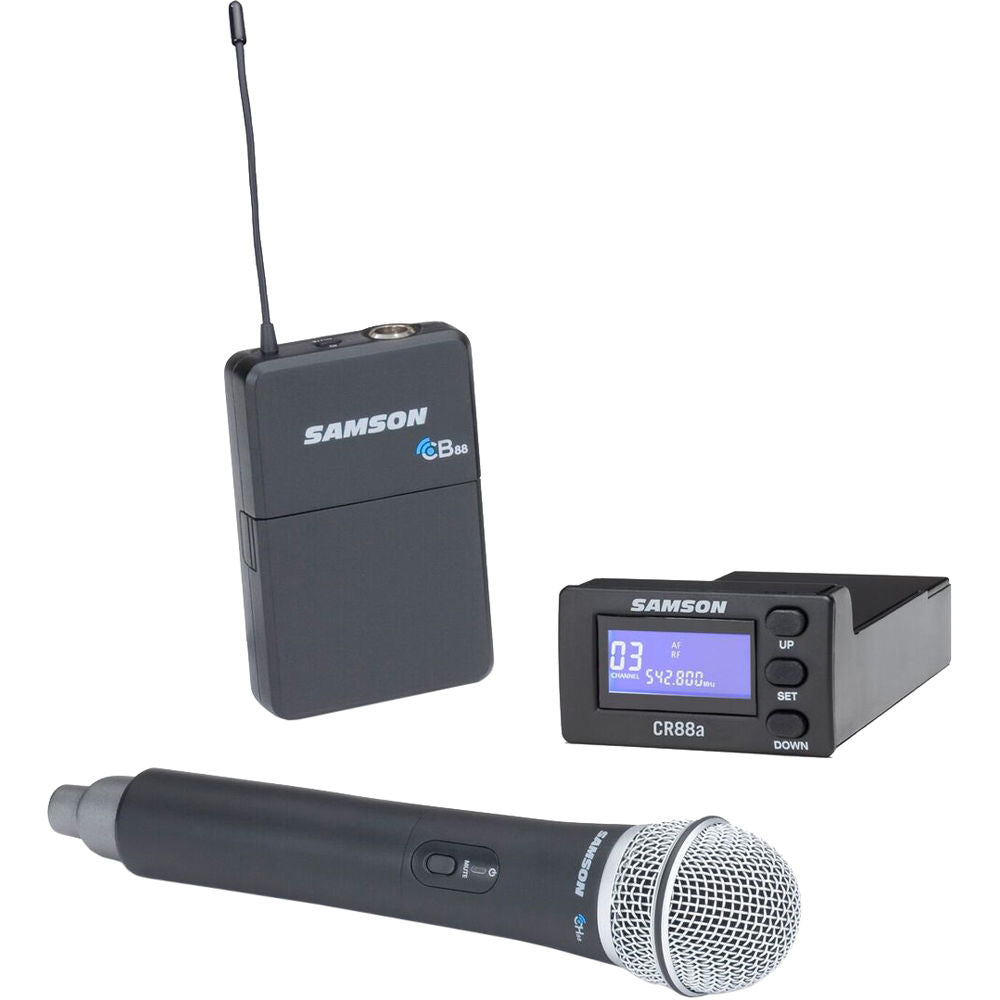

Add a second cordless microphone to your Expedition XP310w or XP312w PA system with the Samson Concert 88a Wireless Handheld Microphone System . Ideal for singers, DJs, and presenters, this system features a handheld microphone that inhibits feedback and a receiver module that conveniently and easily installs in the back of your Expedition PA speaker.
With up to 100 available frequencies and simple syncing via IR, you can quickly get started and find a strong channel. Two AA batteries (available separately) will power the microphone for up to eight hours, and the mic's power switch doubles as a handy mute function. If you move beyond the system's 100' line-of-sight operating range, the integrated tone key mitigates undesired signal transmission.
Easy Setup

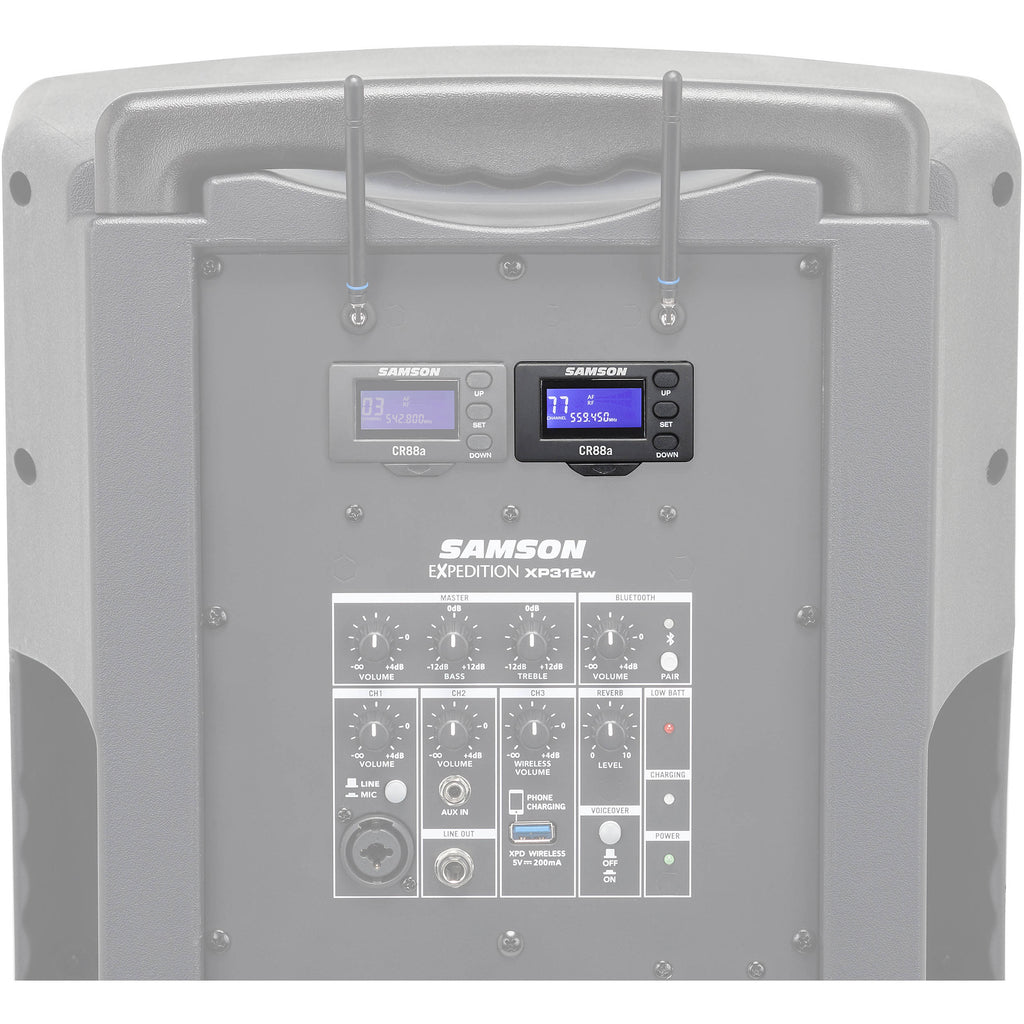

The Concert 88a system is designed for easy setup in a hurry. Simply slide the receiver module into the open receiver slot on the back of your Expedition XP310w or XP312w, power on the PA and microphone, and sync the receiver and transmitter.
As a frequency-agile wireless system, the Concert 88a offers up to 100 frequency presets to help you achieve reliable signal transmission. By operating from 470 to 494 MHz in the UHF spectrum, it avoids interference from Bluetooth and Wi-Fi signals.
As a frequency-agile wireless system, the Concert 88a offers up to 100 frequency presets to help you achieve reliable signal transmission. By operating from 470 to 494 MHz in the UHF spectrum, it avoids interference from Bluetooth and Wi-Fi signals.
Wireless Handheld Microphone
The CH88 handheld transmitter is outfitted with the Q6 dynamic microphone capsule, which features a supercardioid polar pattern to reject stage bleed and allow higher gain before feedback.
Two AA batteries can power the transmitter for up to eight hours of operating time. Use the power switch to mute the mic between performances or turn it off for battery conservation.
Beneath the battery cover, you'll find a plastic screwdriver for adjusting the transmitter's input sensitivity. Generally avoid the maximum gain setting as it can cause distortion when the mic is used on loud sources.
Two AA batteries can power the transmitter for up to eight hours of operating time. Use the power switch to mute the mic between performances or turn it off for battery conservation.
Beneath the battery cover, you'll find a plastic screwdriver for adjusting the transmitter's input sensitivity. Generally avoid the maximum gain setting as it can cause distortion when the mic is used on loud sources.

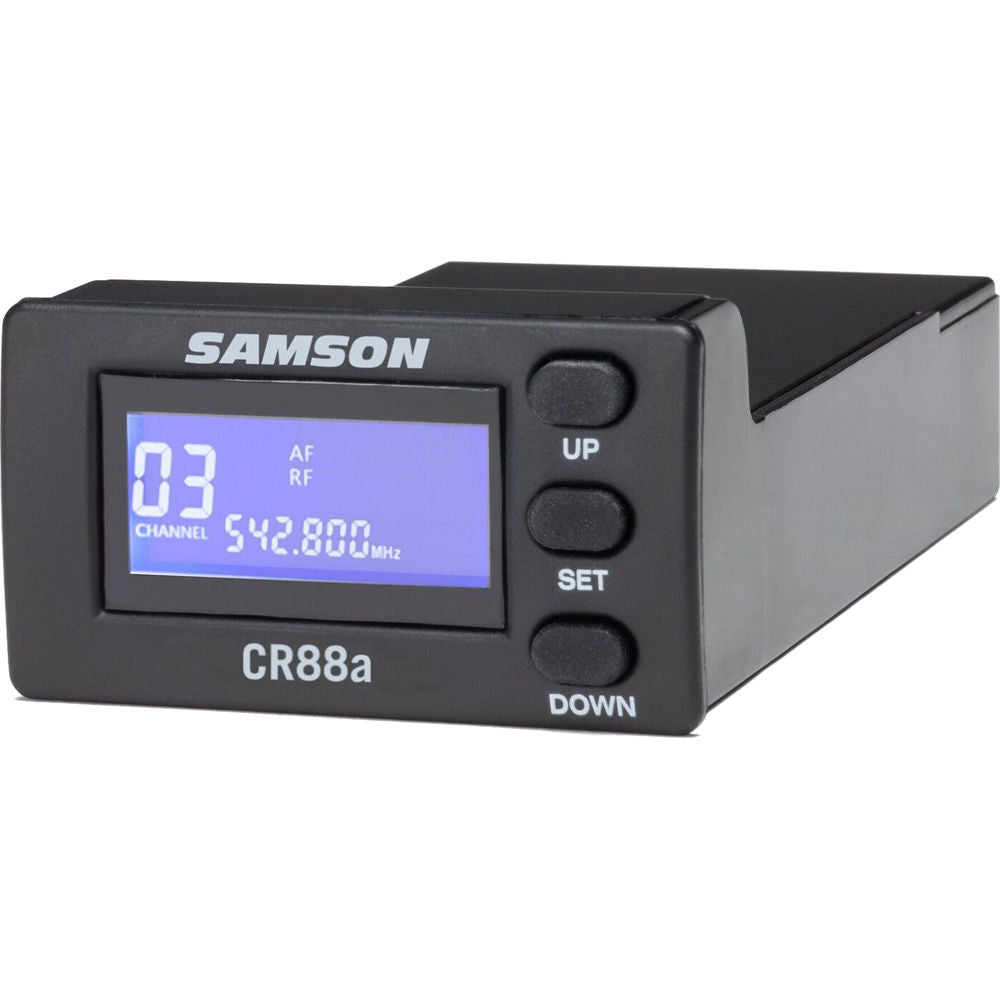

Receiver Module
The receiver module is powered through its connection to your Expedition PA speaker, so it requires no batteries or power cables.
The backlit LCD screen shows vital information including the selected channel and frequency as well as AF and RF levels.
Press the up/down buttons to choose a channel, then use the set button to sync the transmitter to the same channel.
The backlit LCD screen shows vital information including the selected channel and frequency as well as AF and RF levels.
Press the up/down buttons to choose a channel, then use the set button to sync the transmitter to the same channel.
UPC: 809164224563
In the Box
- Samson Concert 88a Wireless Handheld Microphone System for XP310w or XP312w PA System (Band K: 470 to 494 MHz)
- CR88a Receiver Module
- Samson CH88 Wireless Handheld Transmitter (K: 470 to 494 MHz)
- Limited 2-Year Warranty
Table of Contents
- Description
- Easy Setup
- Wireless Handheld Microphone
- Receiver Module
Samson SWMC88HQ6-K Specs
System
| Wireless Transmission | Analog UHF |
| Number of RF Channels | 100 |
| Included Transmitters | 1 x Handheld |
| Diversity | Non-Diversity |
| RF Frequency Band | K: 470 to 494 MHz |
| RF Bandwidth | 24 MHz |
| Max Operating Range | 100' / 30.5 m (Line of Sight) |
| Dynamic Range | >100 dBA |
| Encryption | None |
| Modulation | F3E |
| Pilot Tone | 35 kHz |
Receiver
| Form Factor | Receiver Module |
| Mounting Options | Slot-Mount |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x Proprietary Unbalanced Output |
| Audio Output Level | 0 dBu (Max) |
| Frequency Response | 50 Hz to 15 kHz ±3 dB |
| Network I/O | None |
| Word Clock I/O | None |
| Approximate RF Sensitivity | -100 dBm |
| Display & Indicators | 1 x Back-Lit LCD (AF Level, Channel, Frequency, RF Level) |
| Dimensions | 2.2 x 1.3 x 4.4" / 57 x 32 x 112 mm |
| Weight | 1.6 lb / 0.7 kg |
Transmitter
| Form Factor | Handheld |
| RF Output Power | 10 mW (EIRP) |
| Audio I/O | None |
| Pad | None |
| Muting | Off/On Switch |
| Gain Range | 28 dB |
| Signal Processing | None |
| Sync Method | IR |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Not Included) |
| Approx. Battery Life | 8 Hours |
| USB/Lightning Connectivity | None |
| Display & Indicators | 1 x LED (Battery Status, Mute, Power) |
| Dimensions | 2.1 x 10.2 x 2.1" / 5.3 x 25.9 x 5.3 cm |
| Weight | 7.7 oz / 218 g |
Microphone
| Form Factor | Handheld |
| Sound Field | Mono |
| Operating Principle | Pressure Gradient |
| Capsule | Dynamic |
| Polar Pattern | Supercardioid |
| Frequency Range | 50 Hz to 15 kHz |
| Maximum SPL | 134 dB SPL |
Packaging Info
| Package Weight | 0.87 lb |
| Box Dimensions (LxWxH) | 10.8 x 3.1 x 2.6" |
