Product Overview

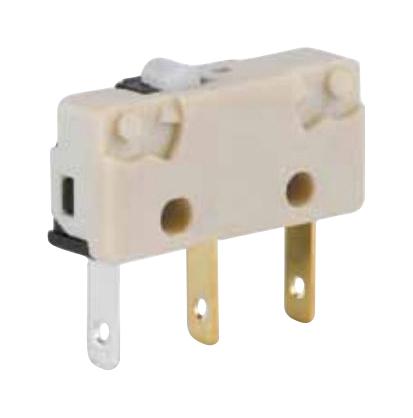

- Subminiature switch
- Thermoplastic housing, long mechanical and electrical life
- 250VAC, 12A maximum rating
- High force operating, normally open (NO) circuits diagram
- Solder terminal, PA66GF25 for terminal types 03 to 15 only body
- Silver contacts material, 6A, 125/250VAC UL/C-UL ratings
- 6 (3)A, 250V~ 5E4 T85µ approved EN/IEC ratings
- Without lever actuators and actuator position
- Temperature range from -40°C to +85°C
- Dimension is 19.9 x 9.7 x 6.4mm
Product details
Technical Specifications
Microswitch Type
Subminiature
Contact Configuration
SPDT
Microswitch Actuator
Pin Plunger
Switch Terminals
Solder Lug
Contact Voltage AC Nom
250V
Other details
| Brand |
SAIA-BURGESS |
| Part Number |
X4G503N1BB |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
