Sachtler Video 18 S2 Fluid Head

Supports 4 to 48.5 lb

Bowl Mount: 100mm

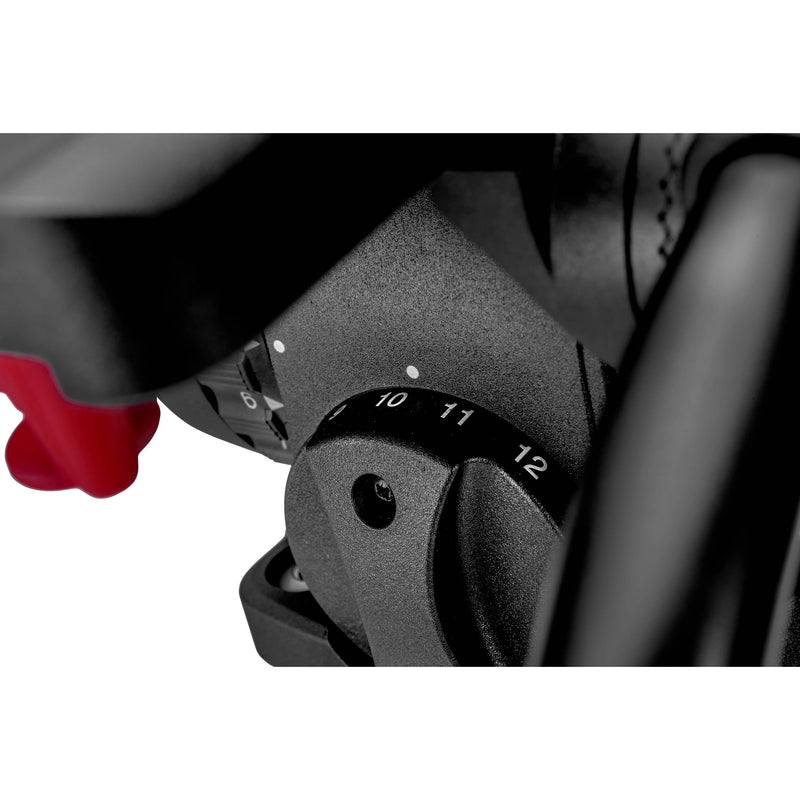

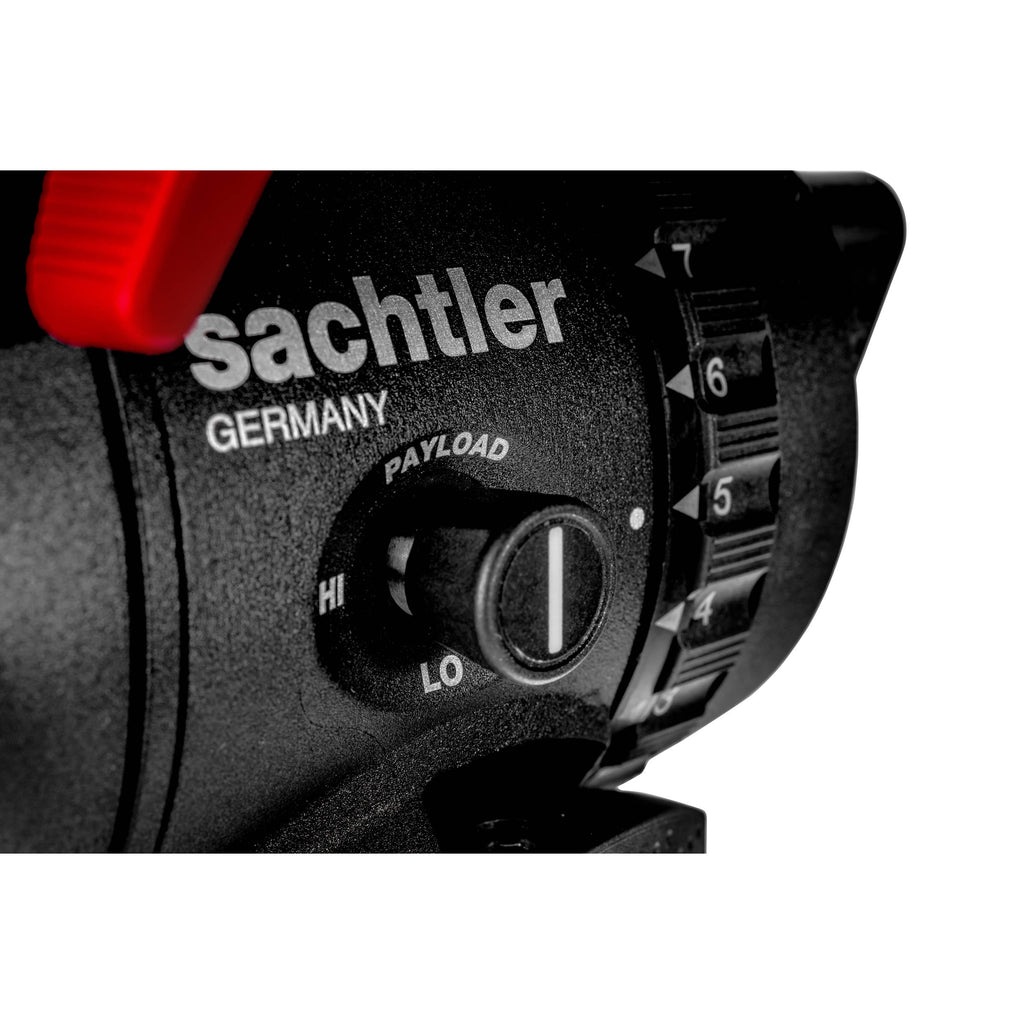

Counterbalance: 16-Step

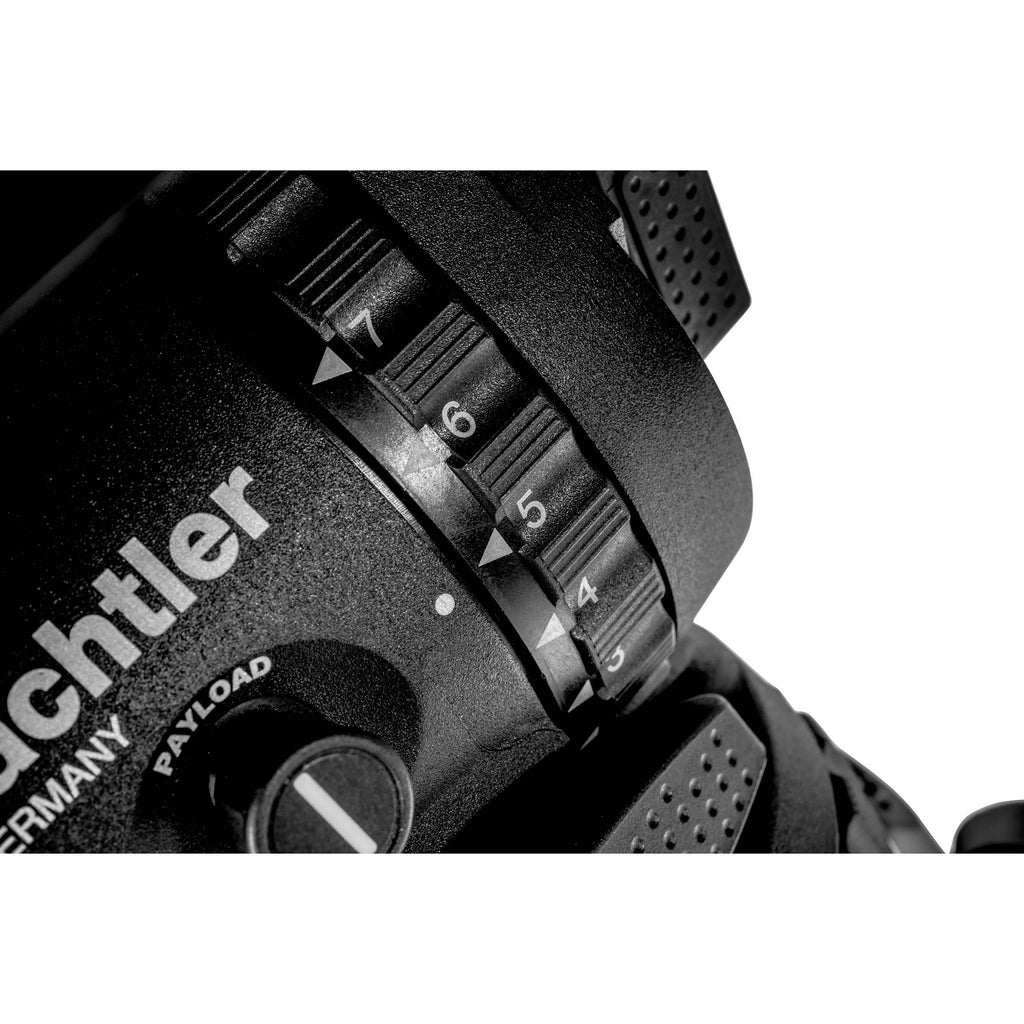

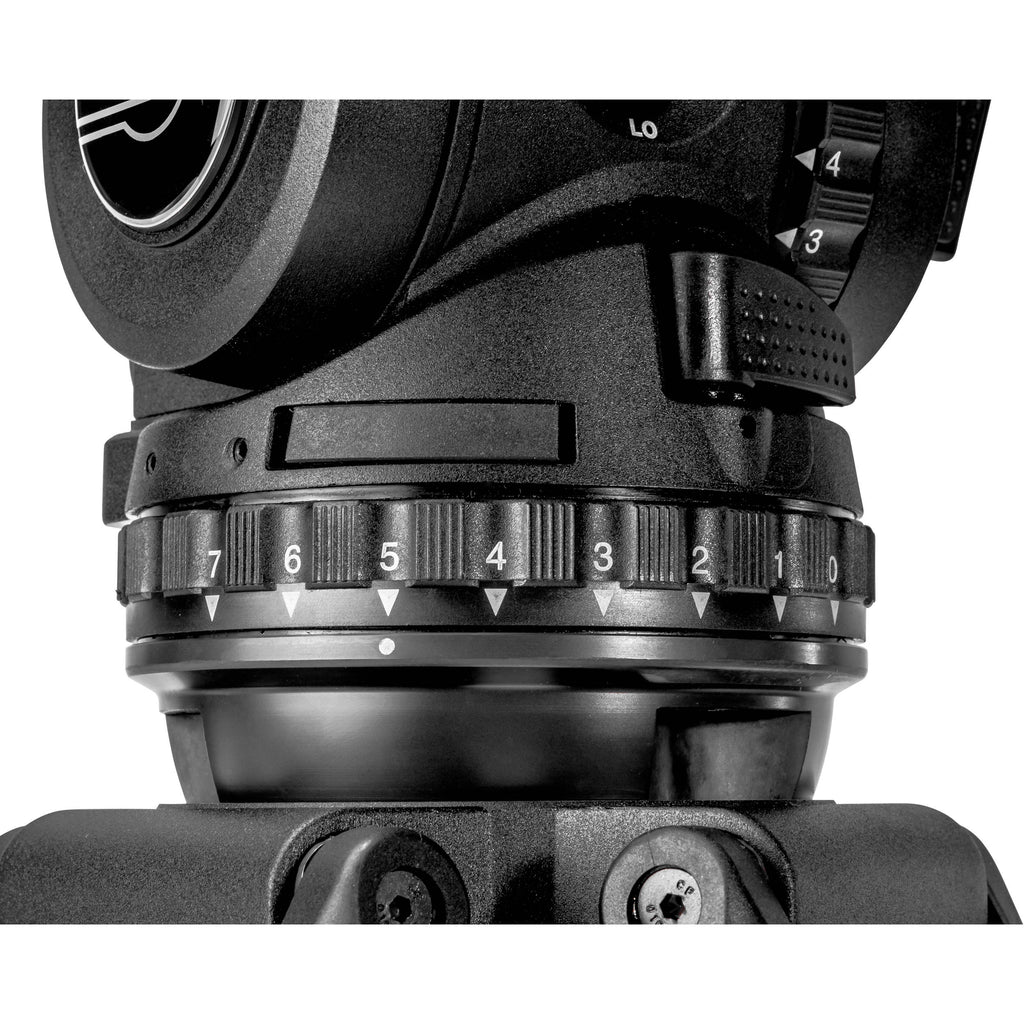

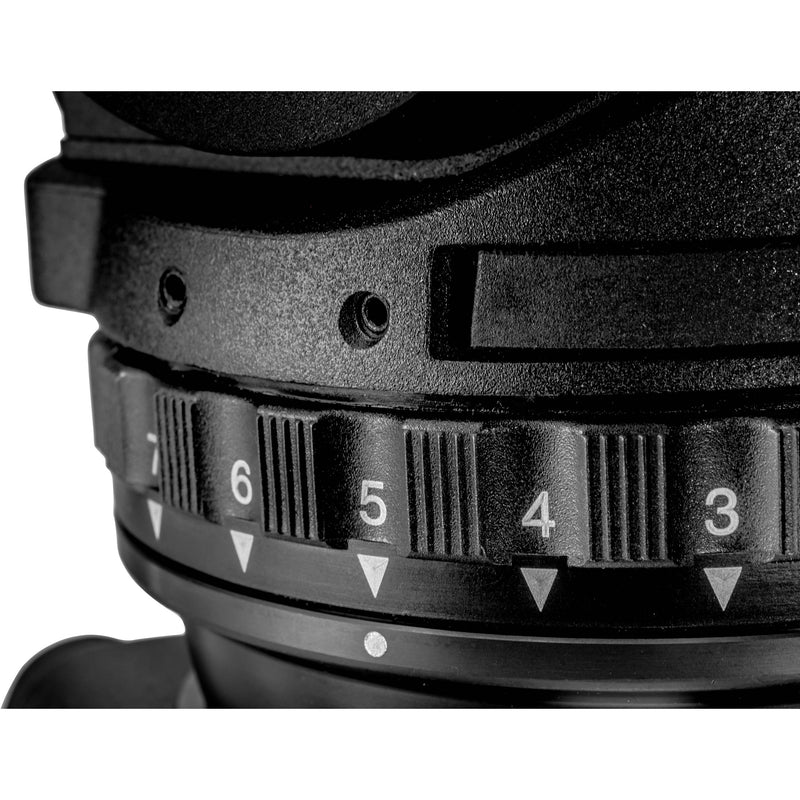

Seven Steps of Drag

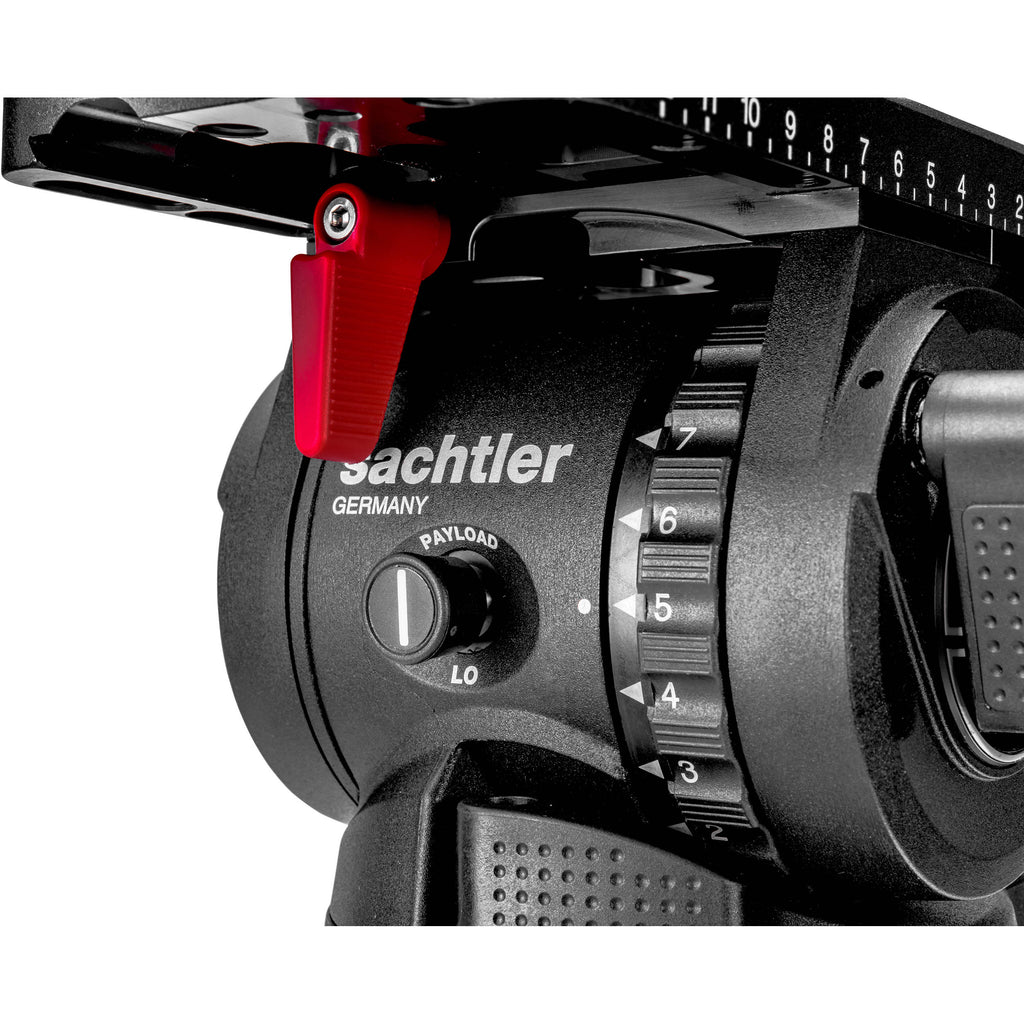

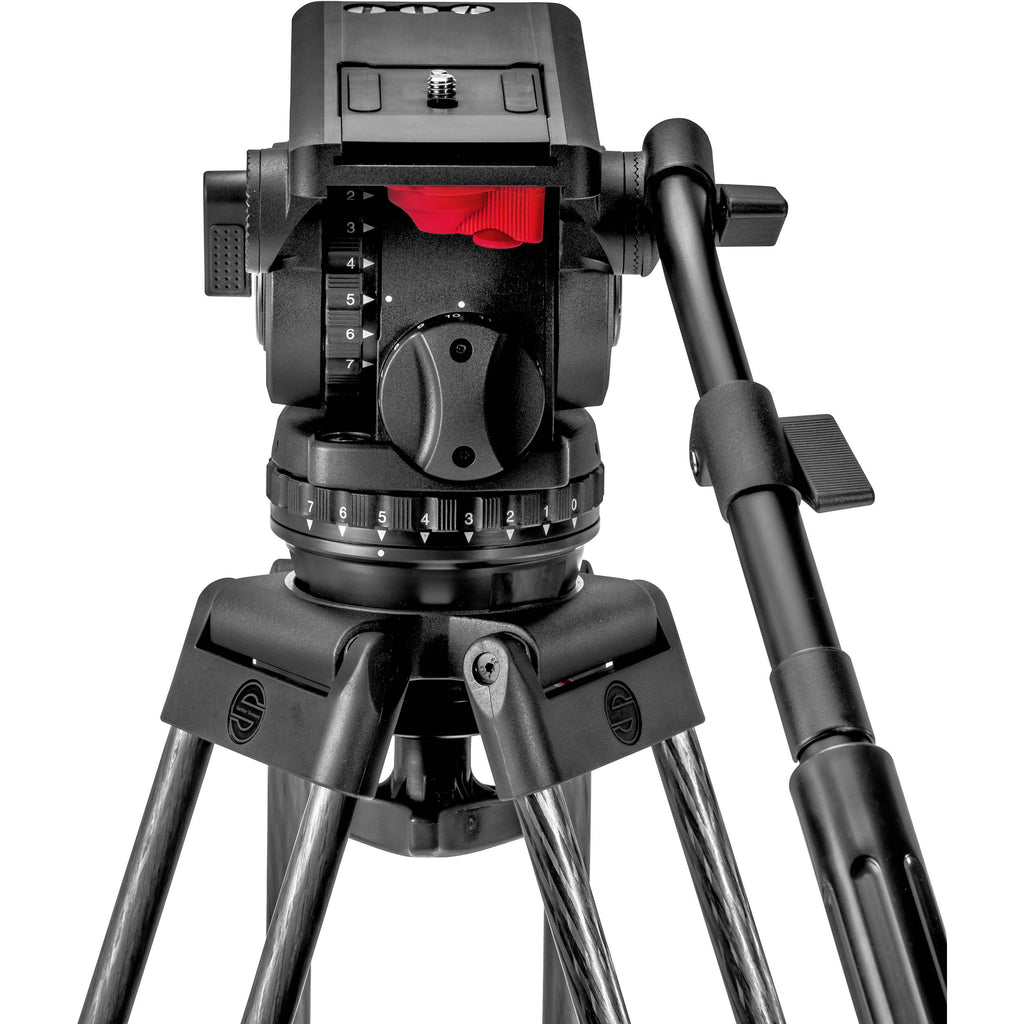

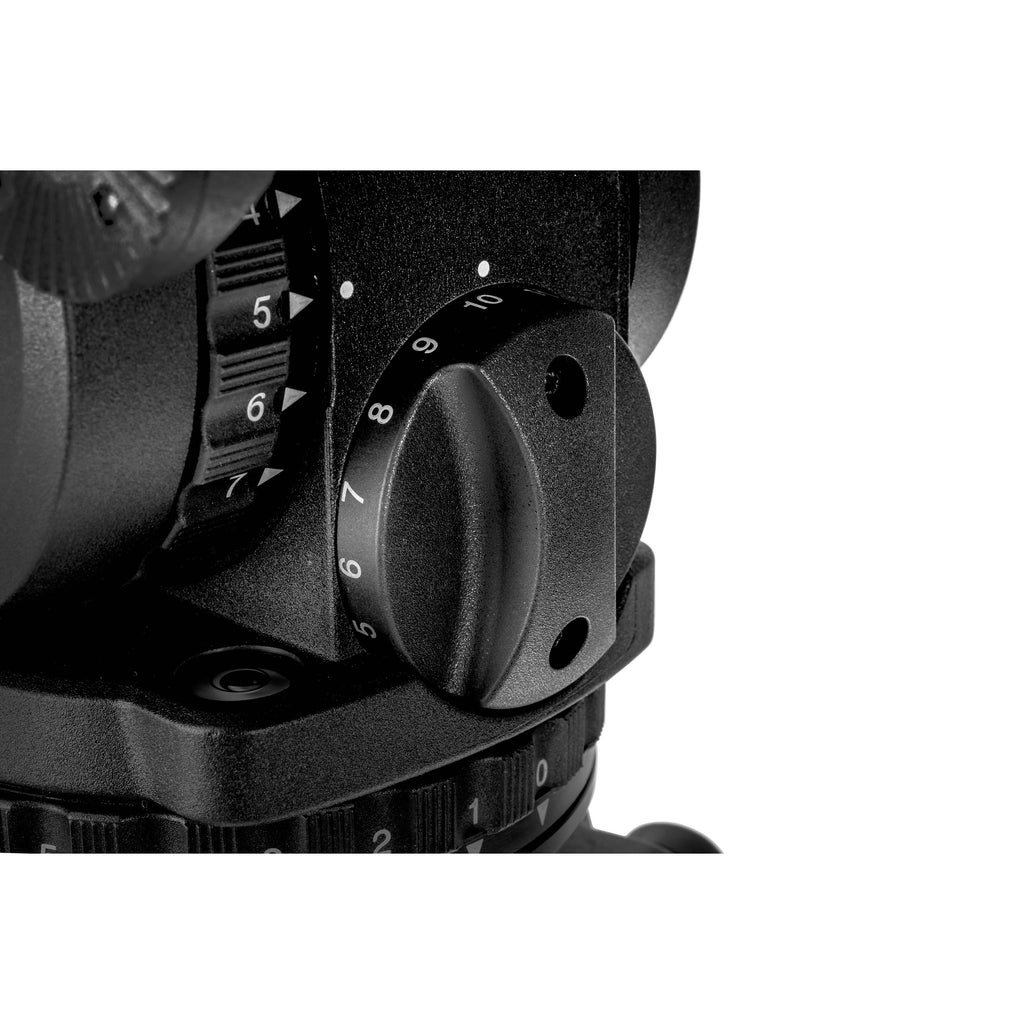

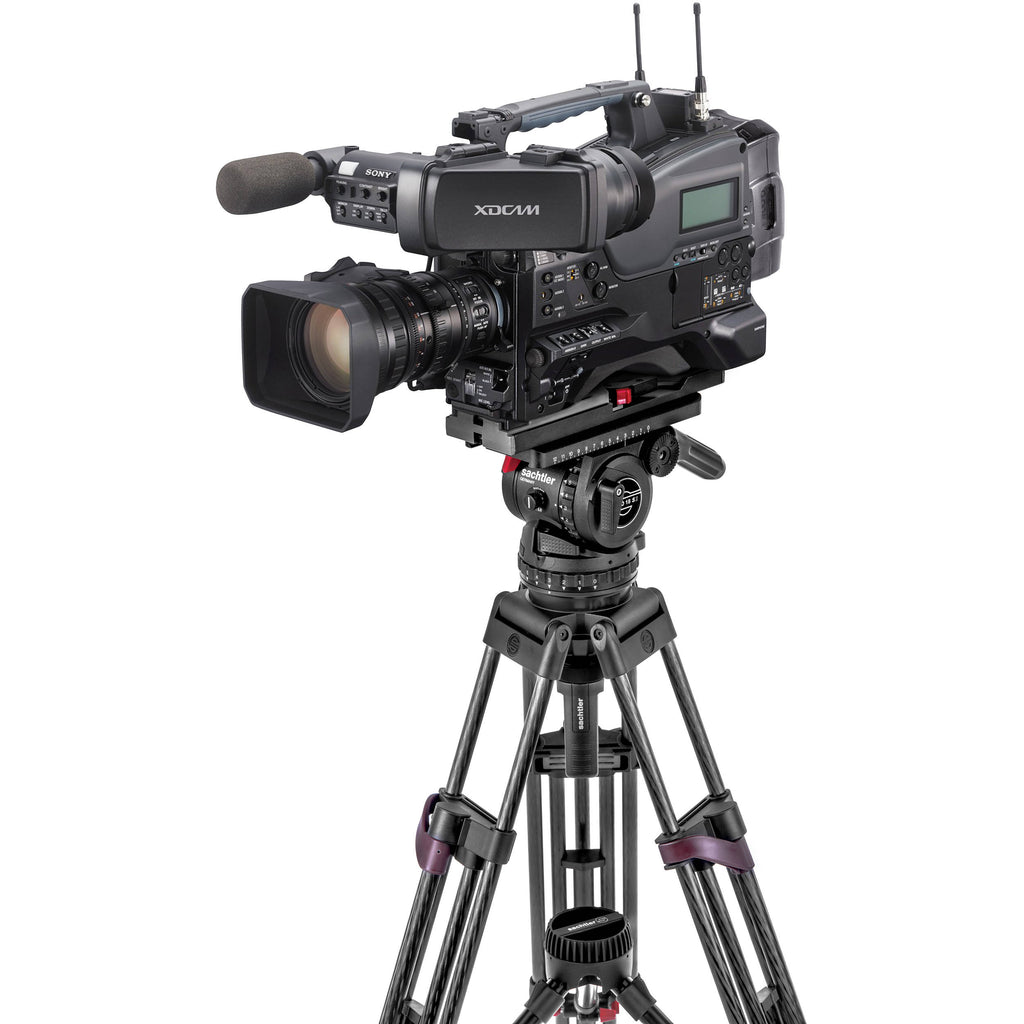

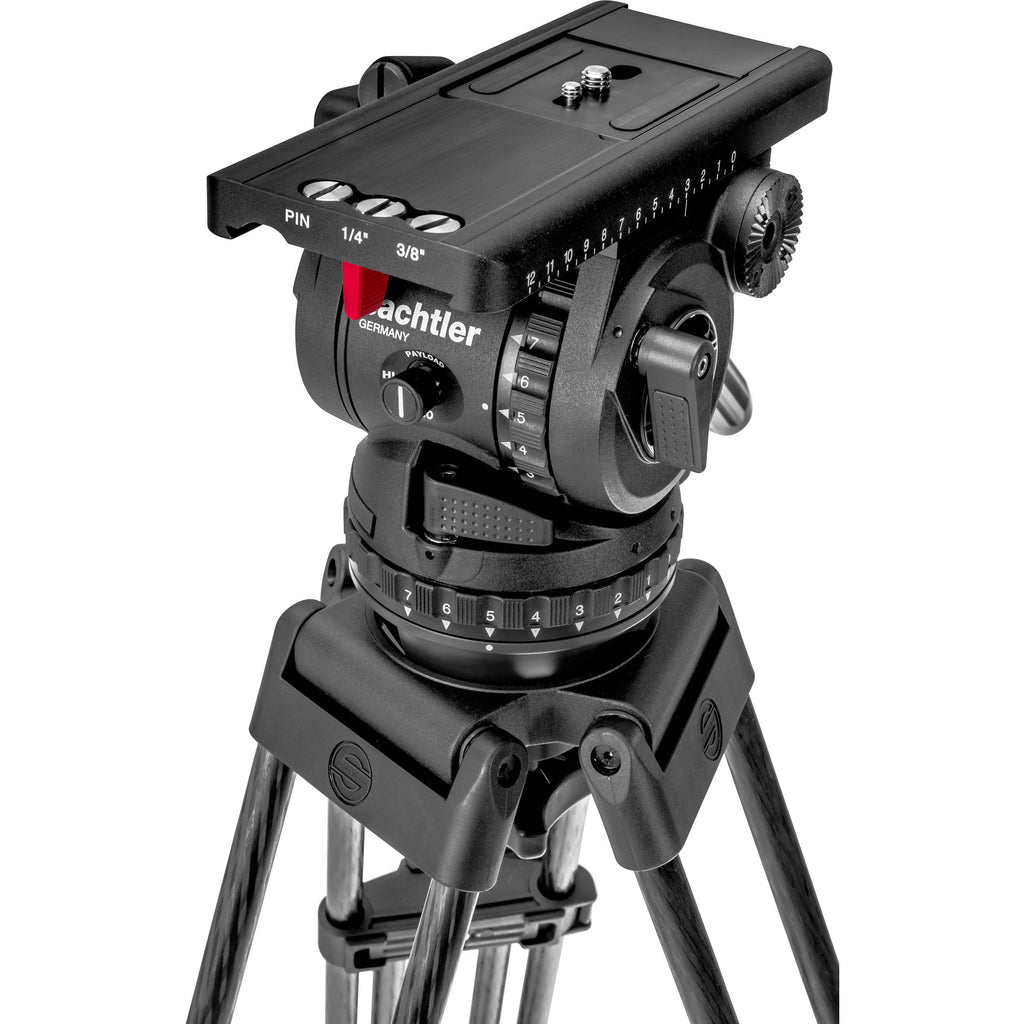

Able to handle DSLR setups weighing four pounds up to ENG and digital cinema cameras weighing 48.5 pounds, the Sachtler Video 18 S2 Fluid Head can fit into a wide range of video productions. Sixteen steps of counterbalance and seven steps of pan and tilt drag, along with locks for each axis, let you easily customize the response of the Video 18 S2 to fit your application, be it studio or field production.

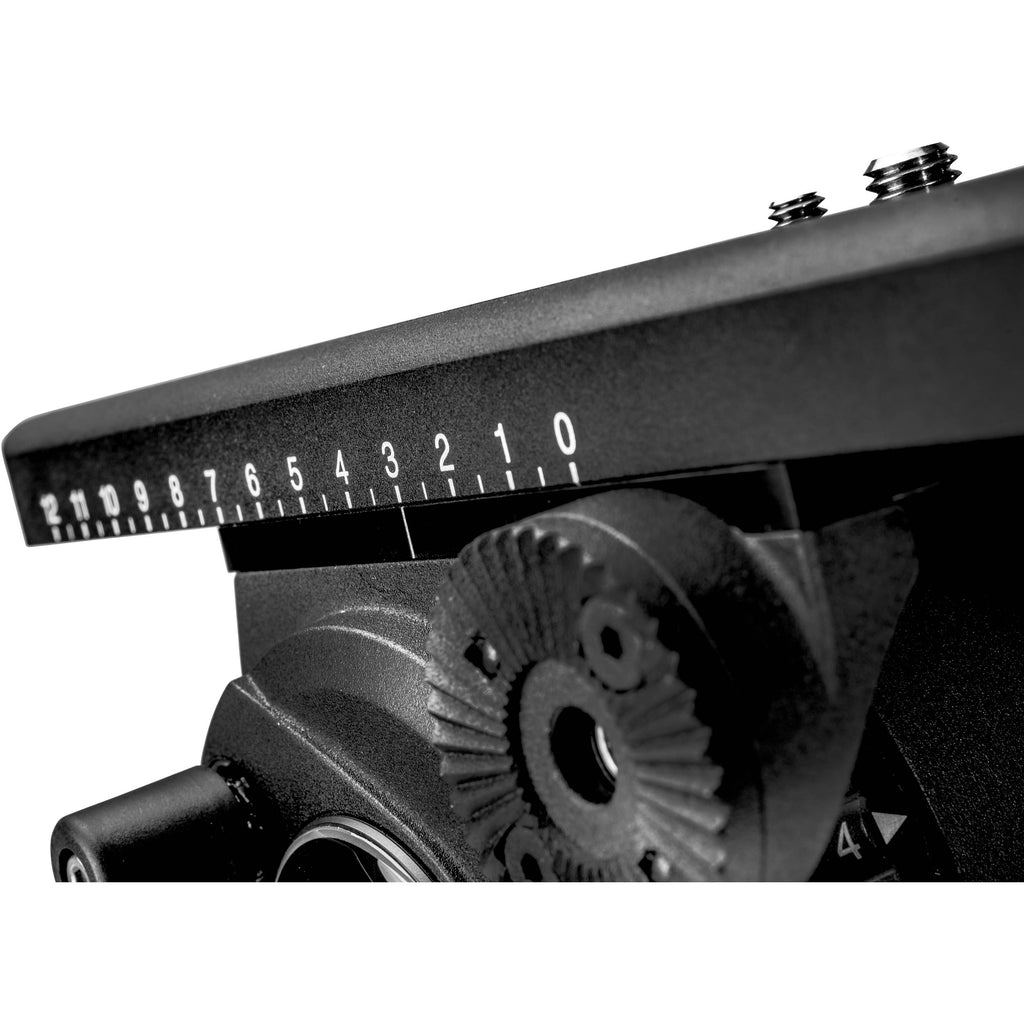

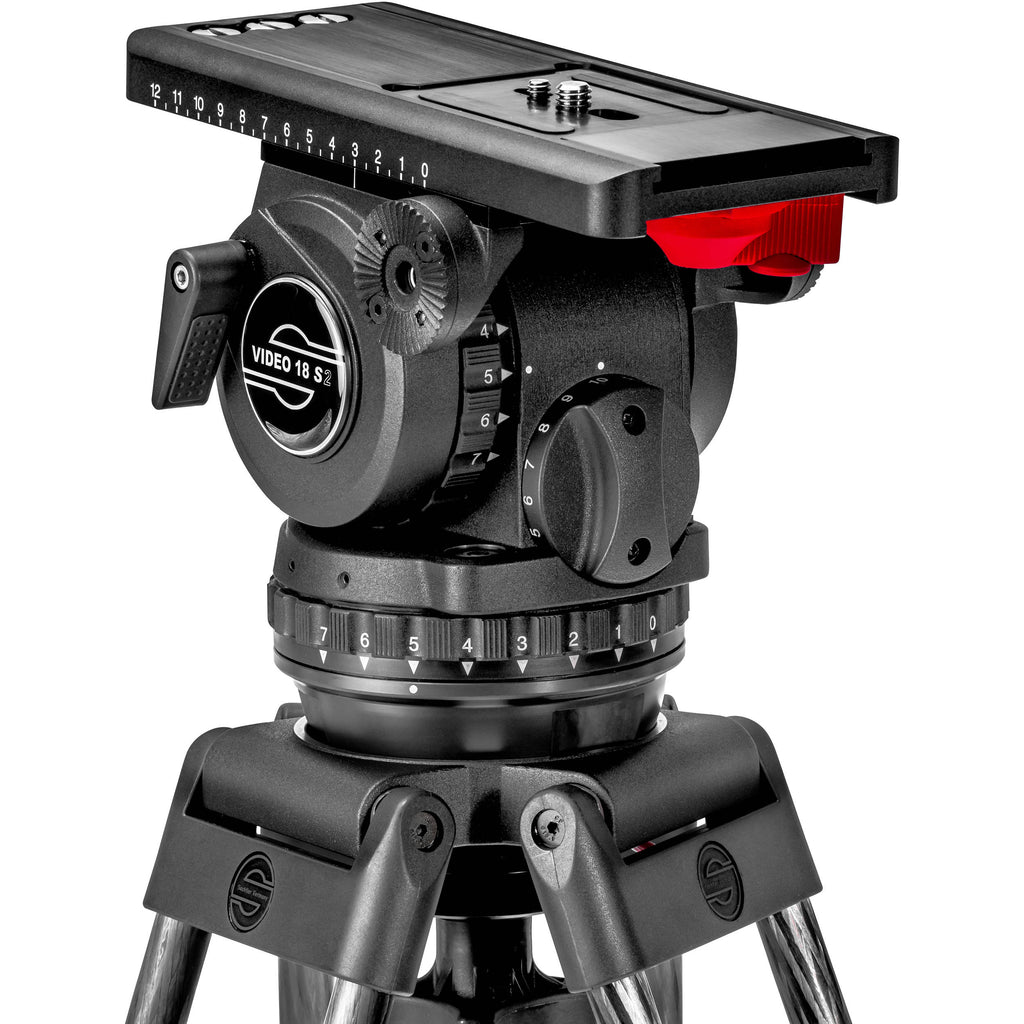

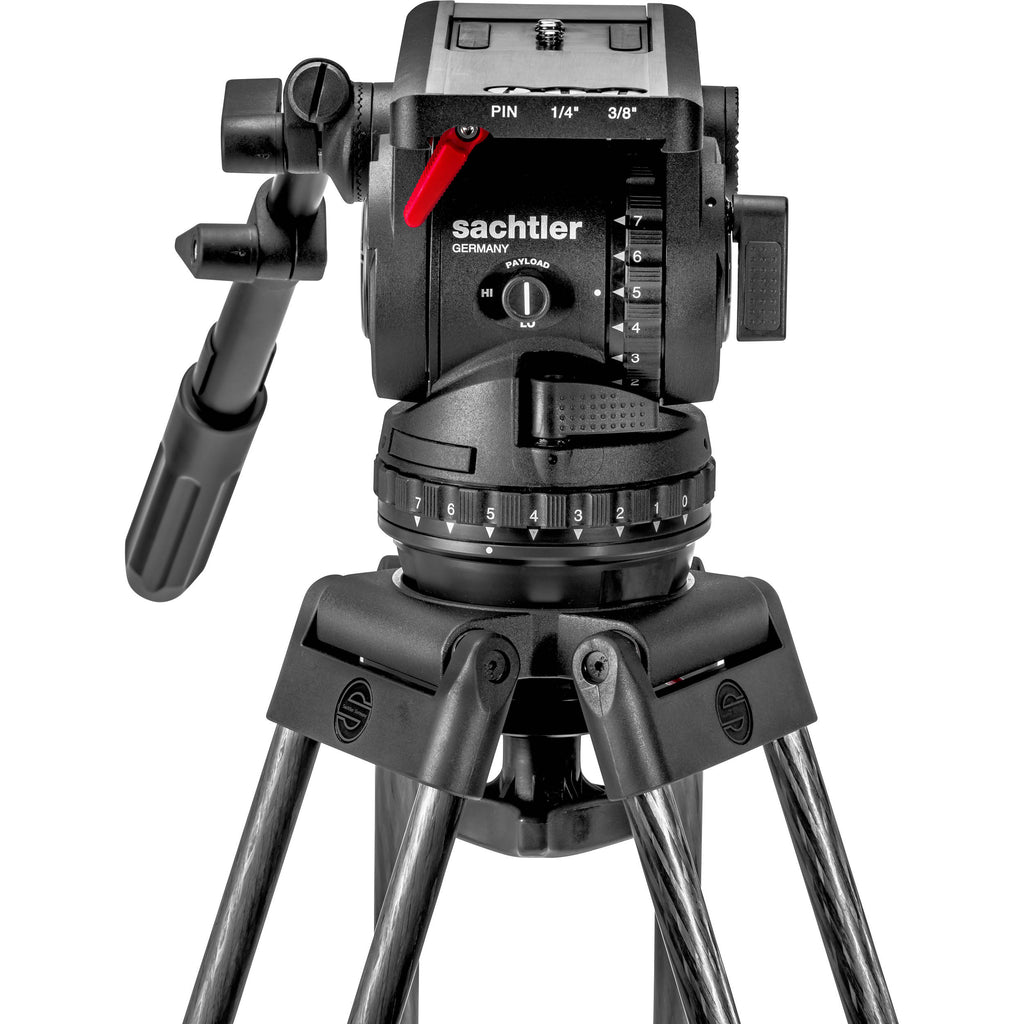

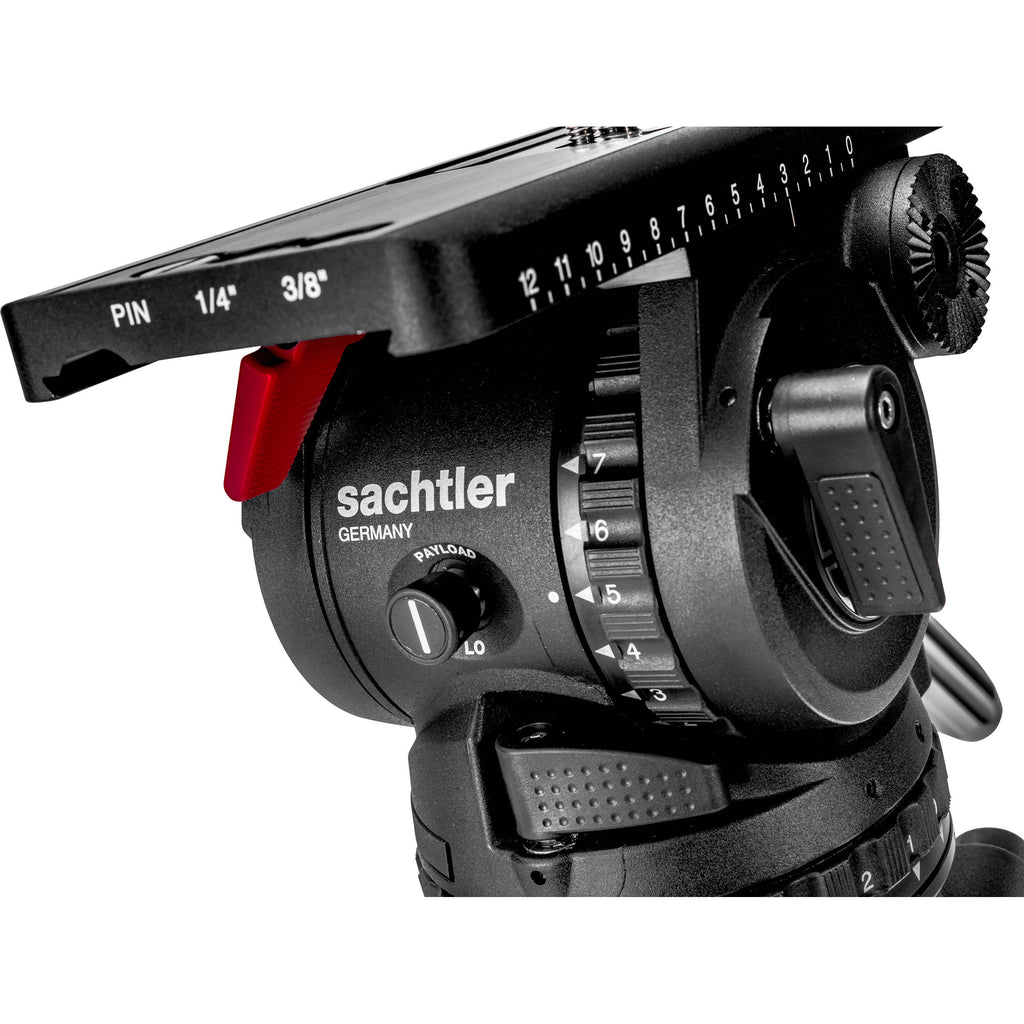

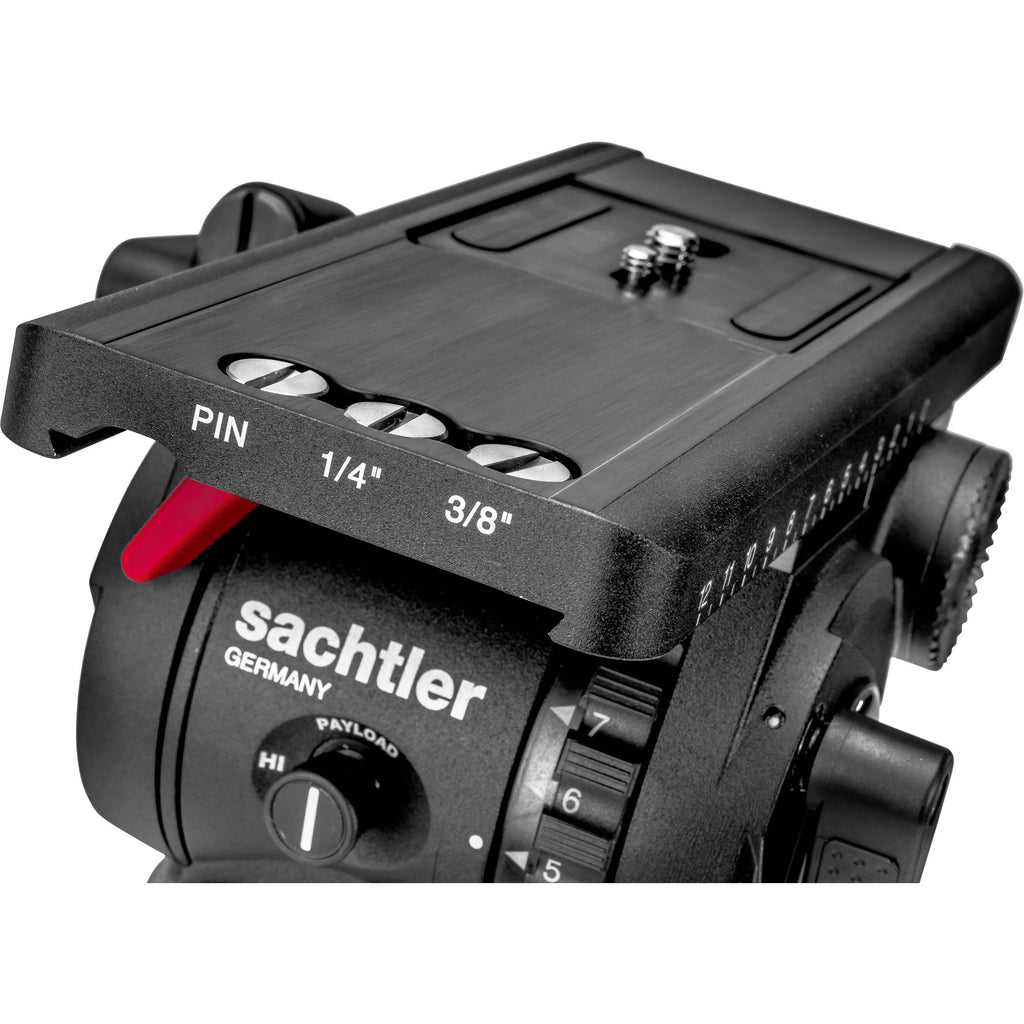

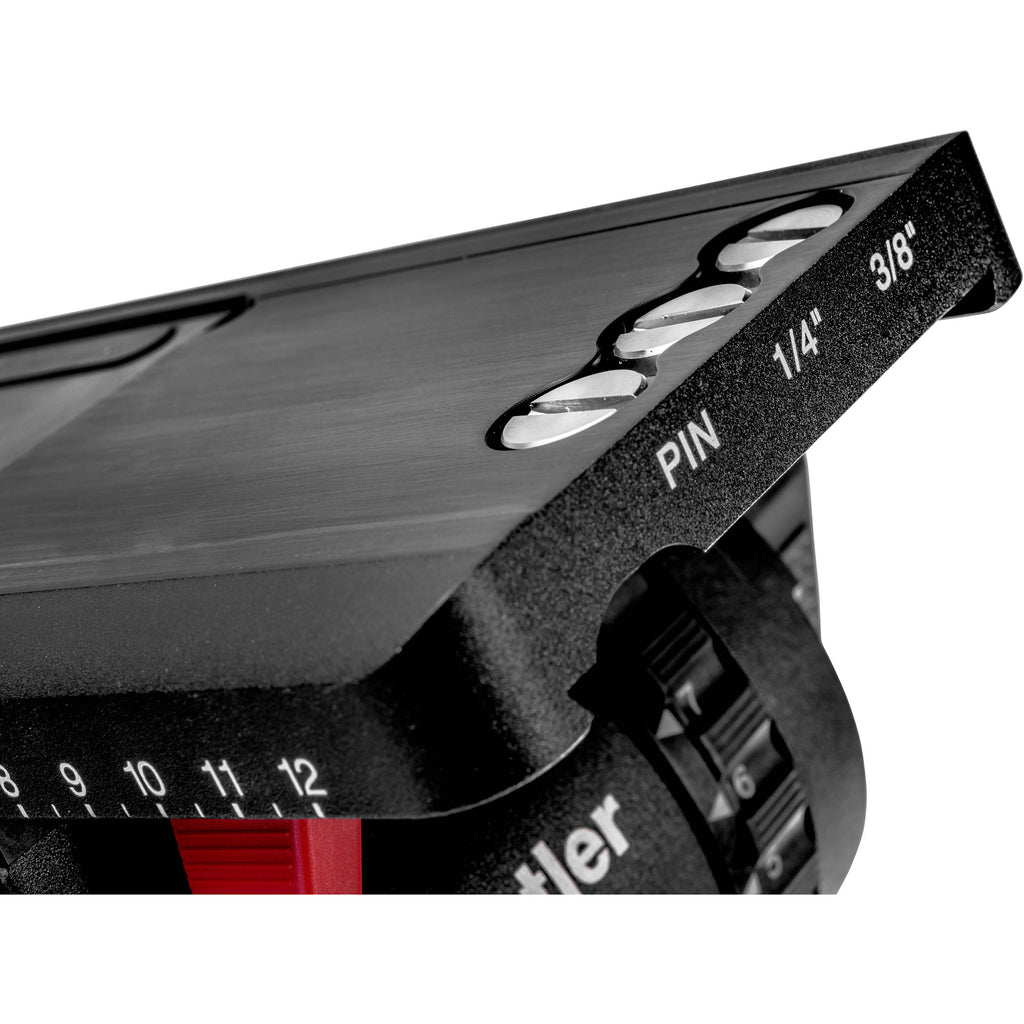

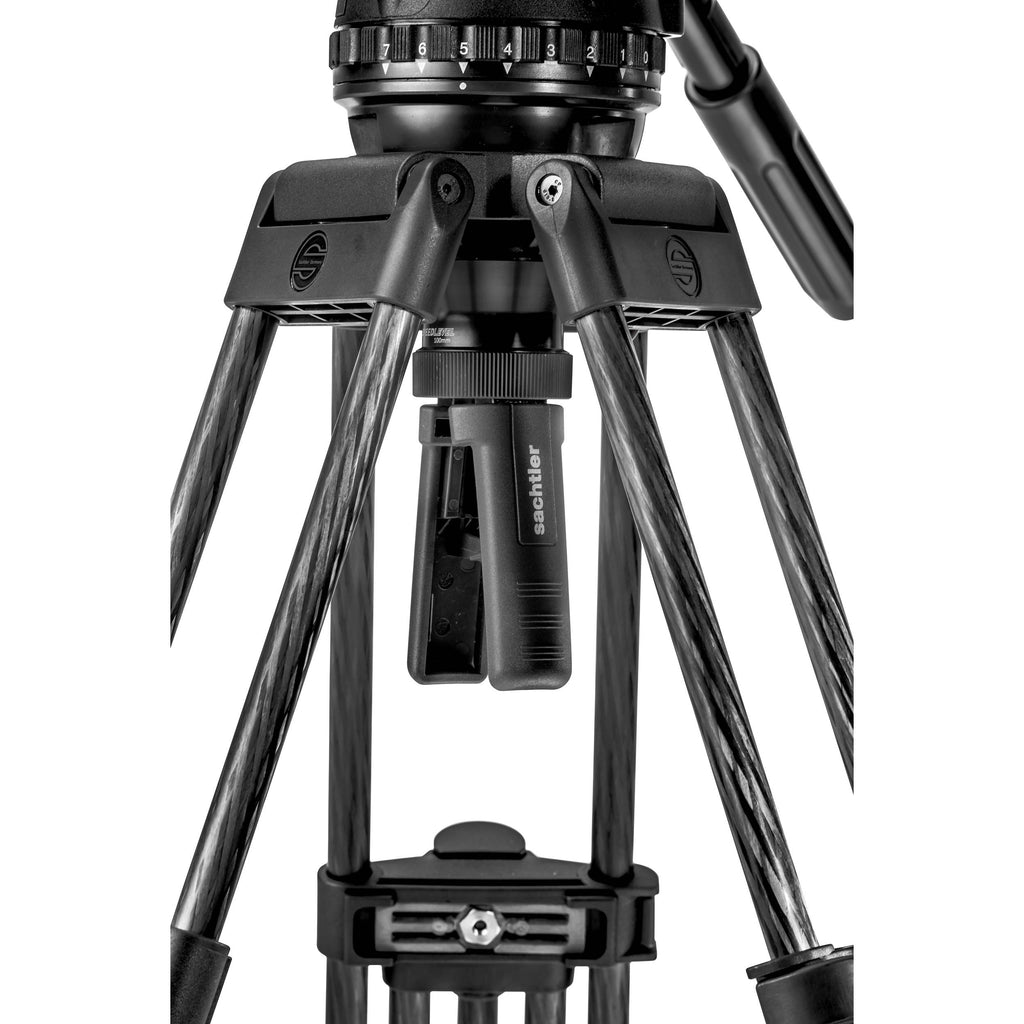

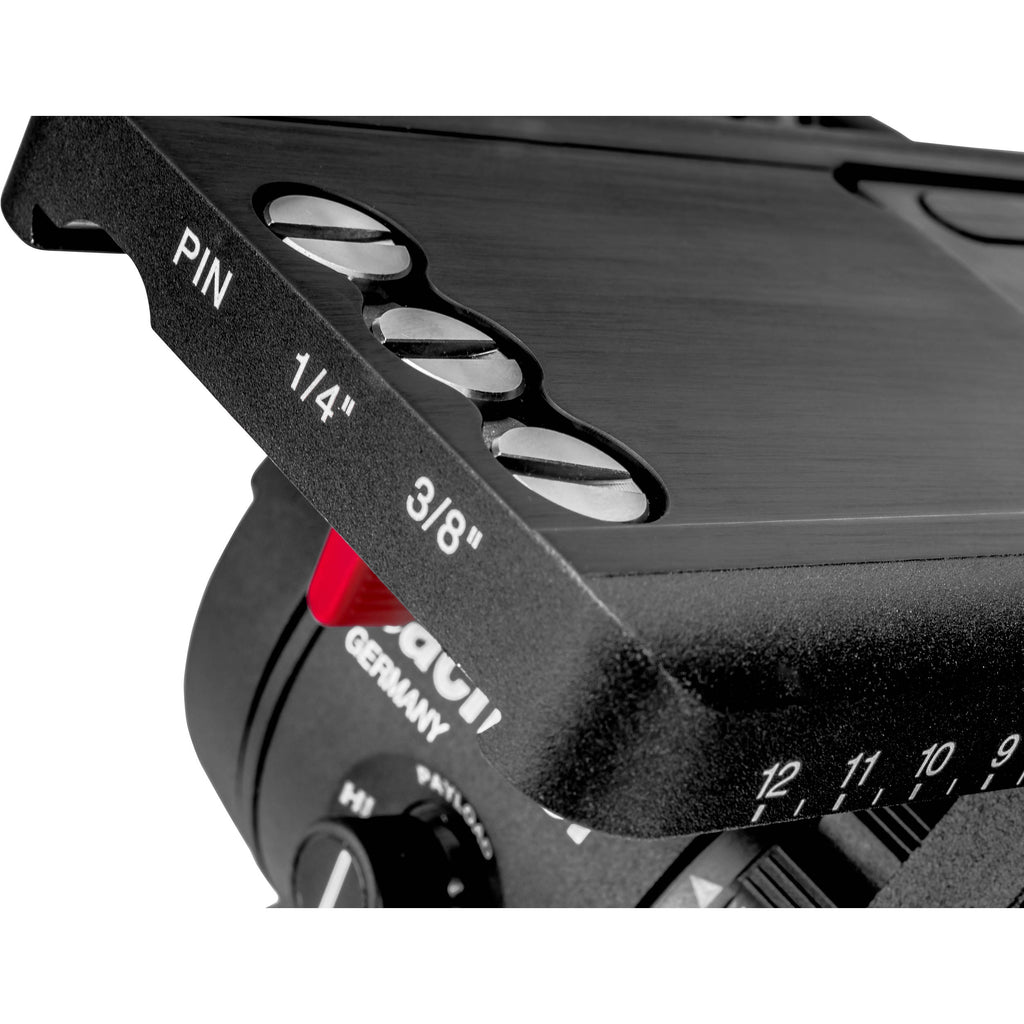

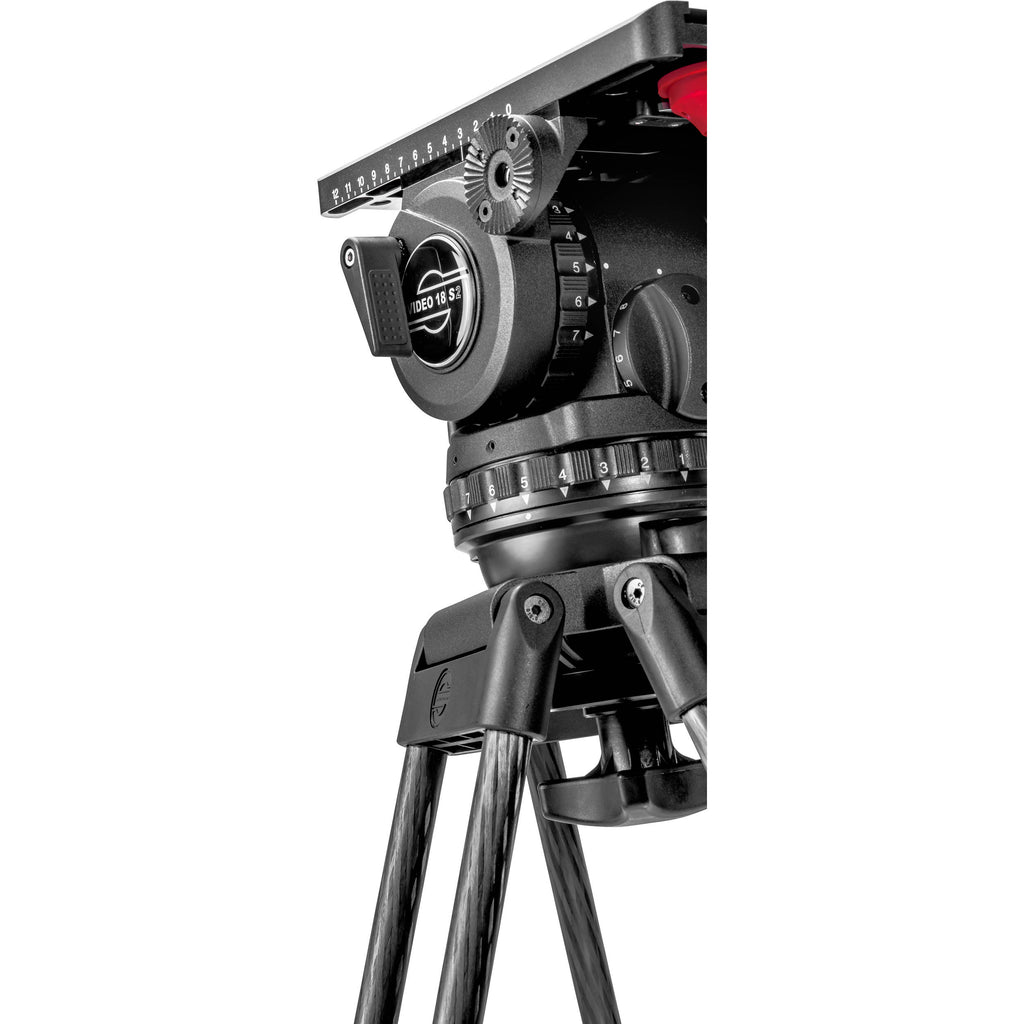

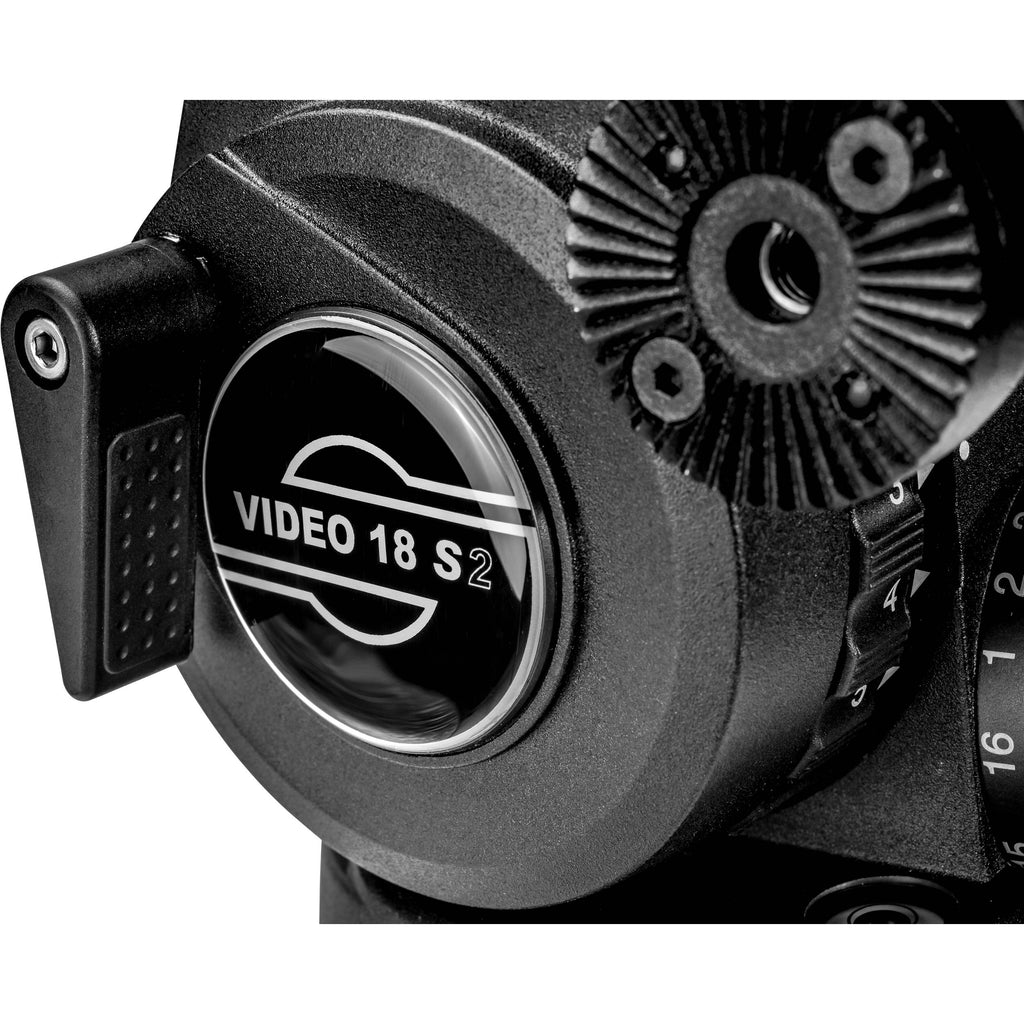

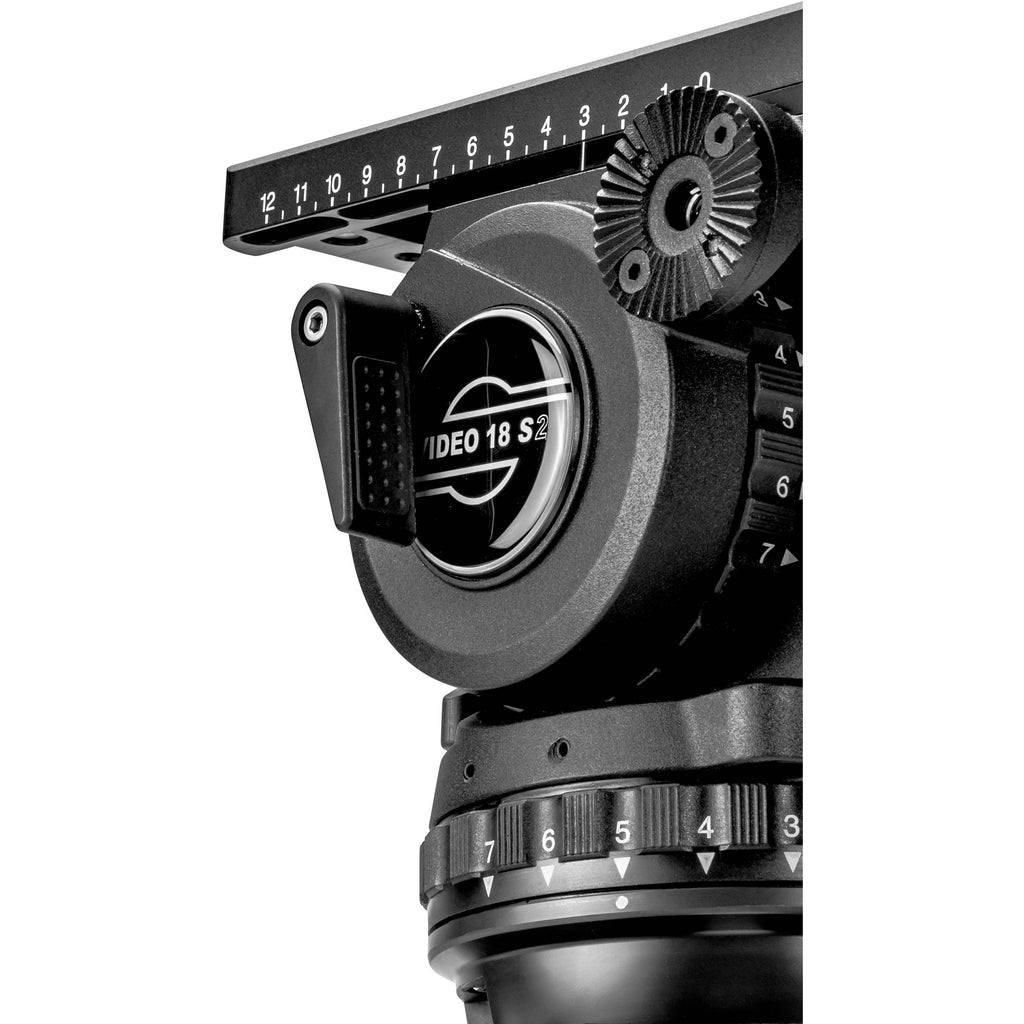

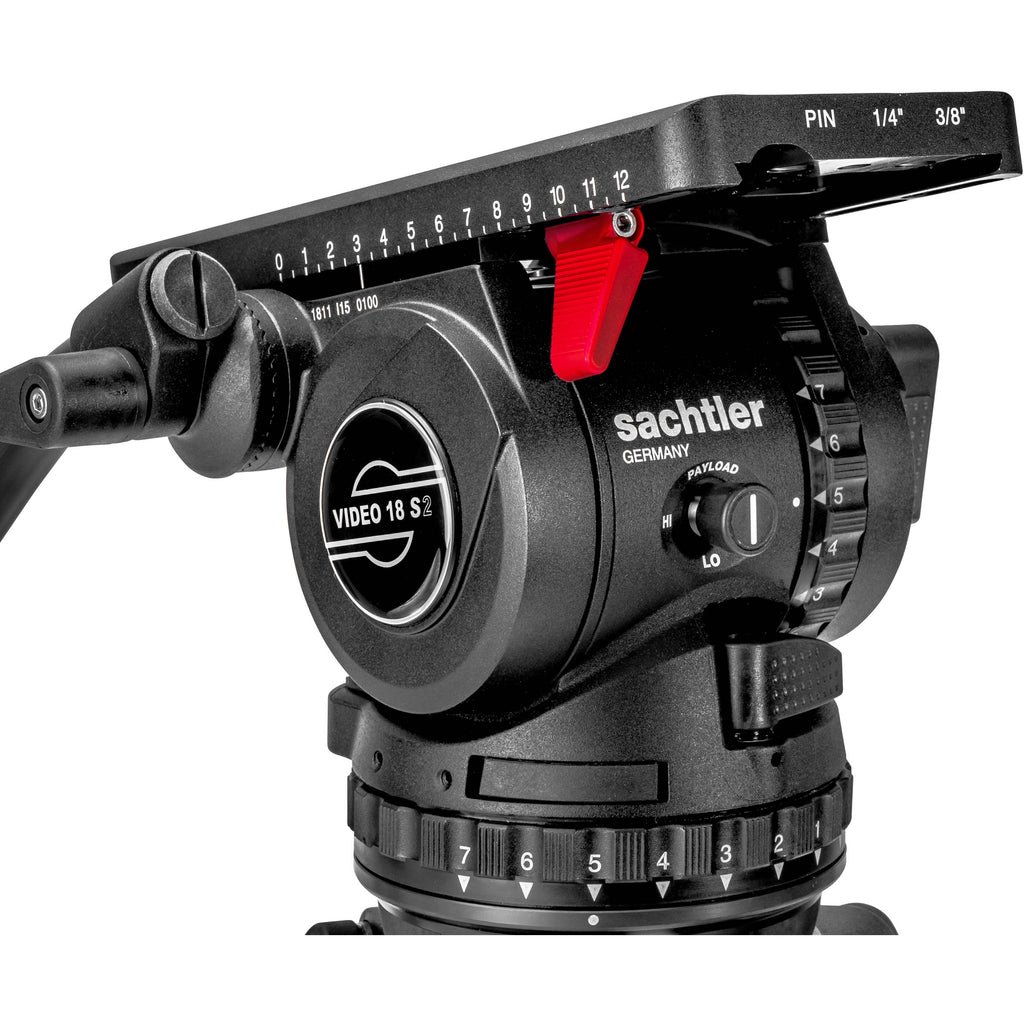

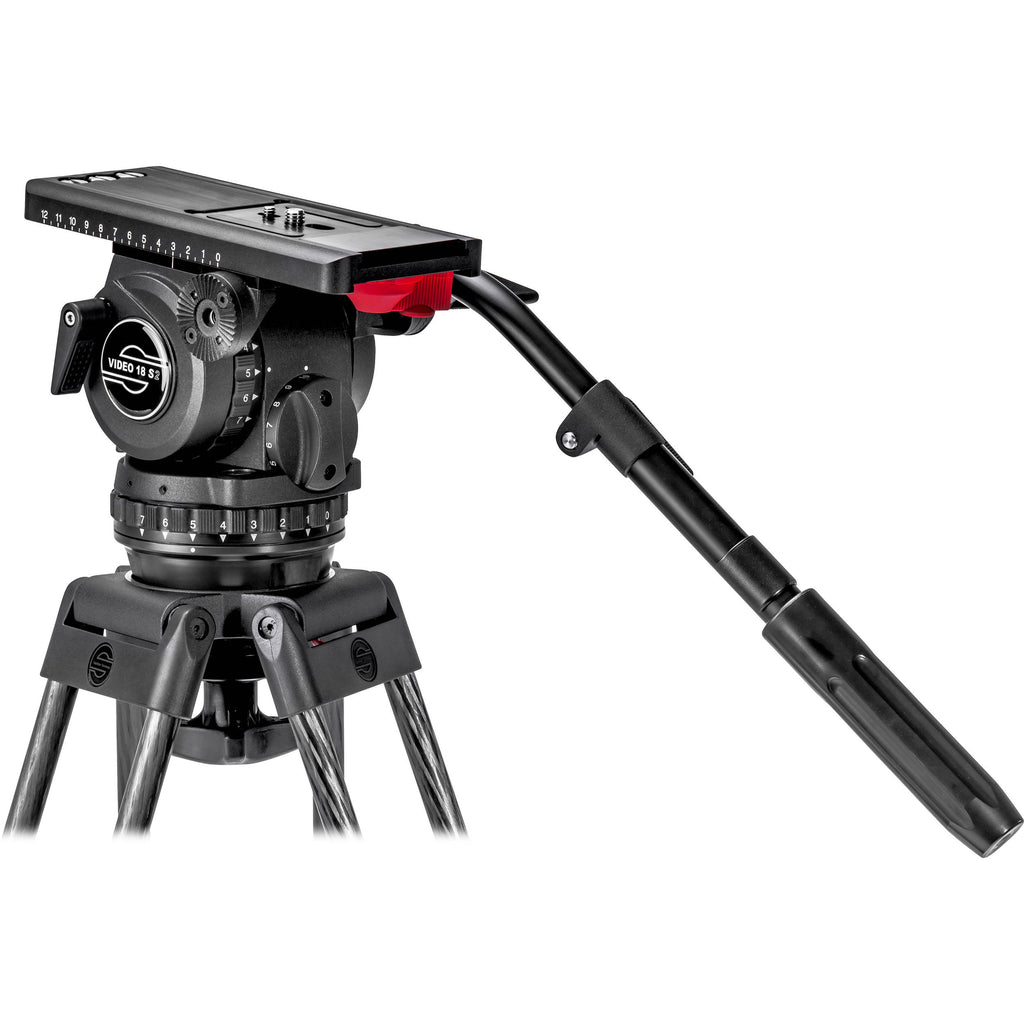

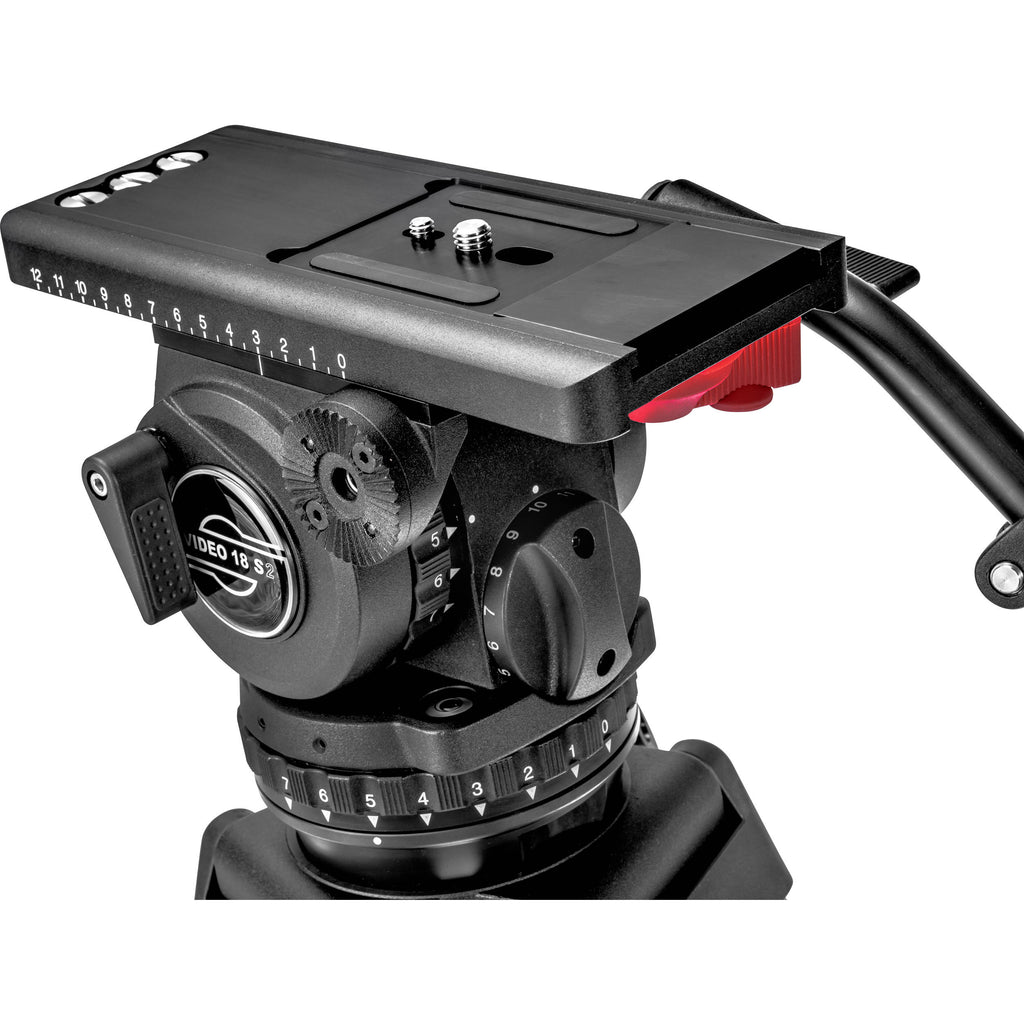

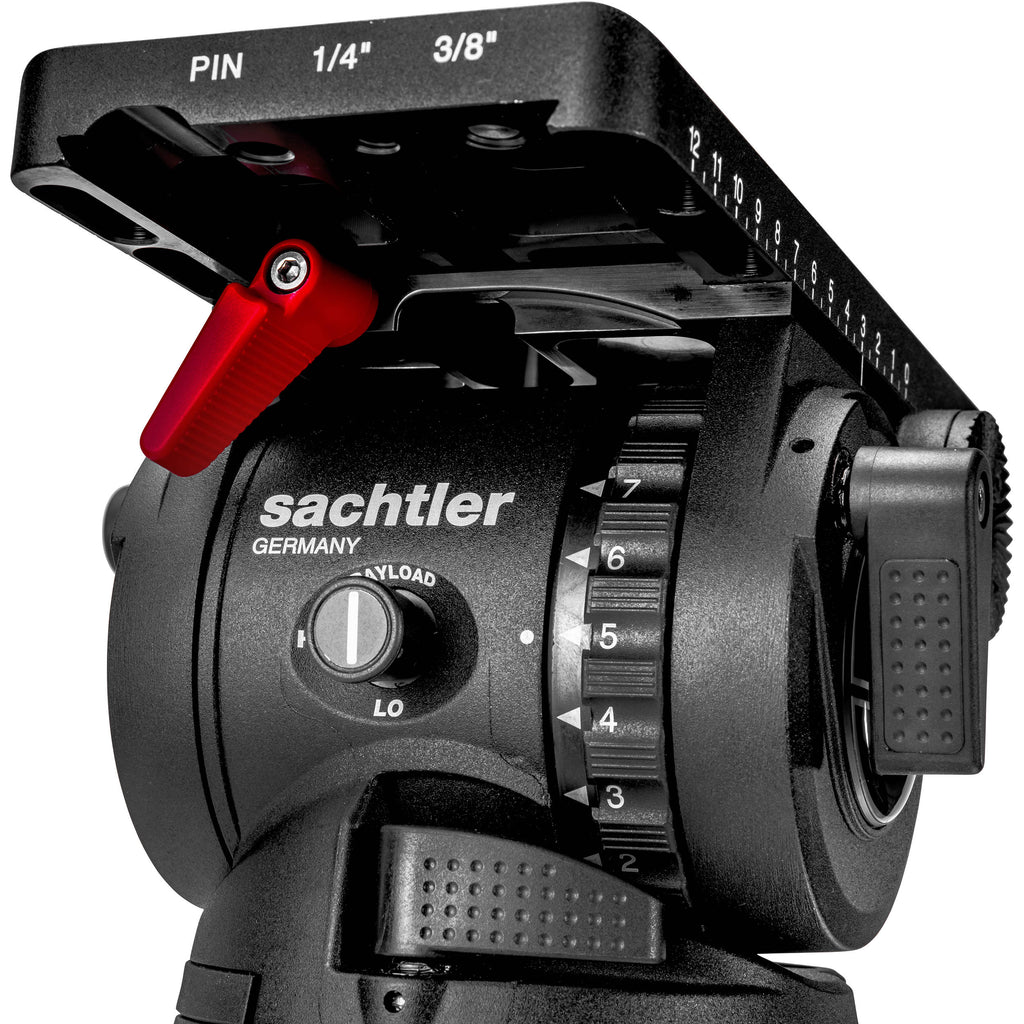

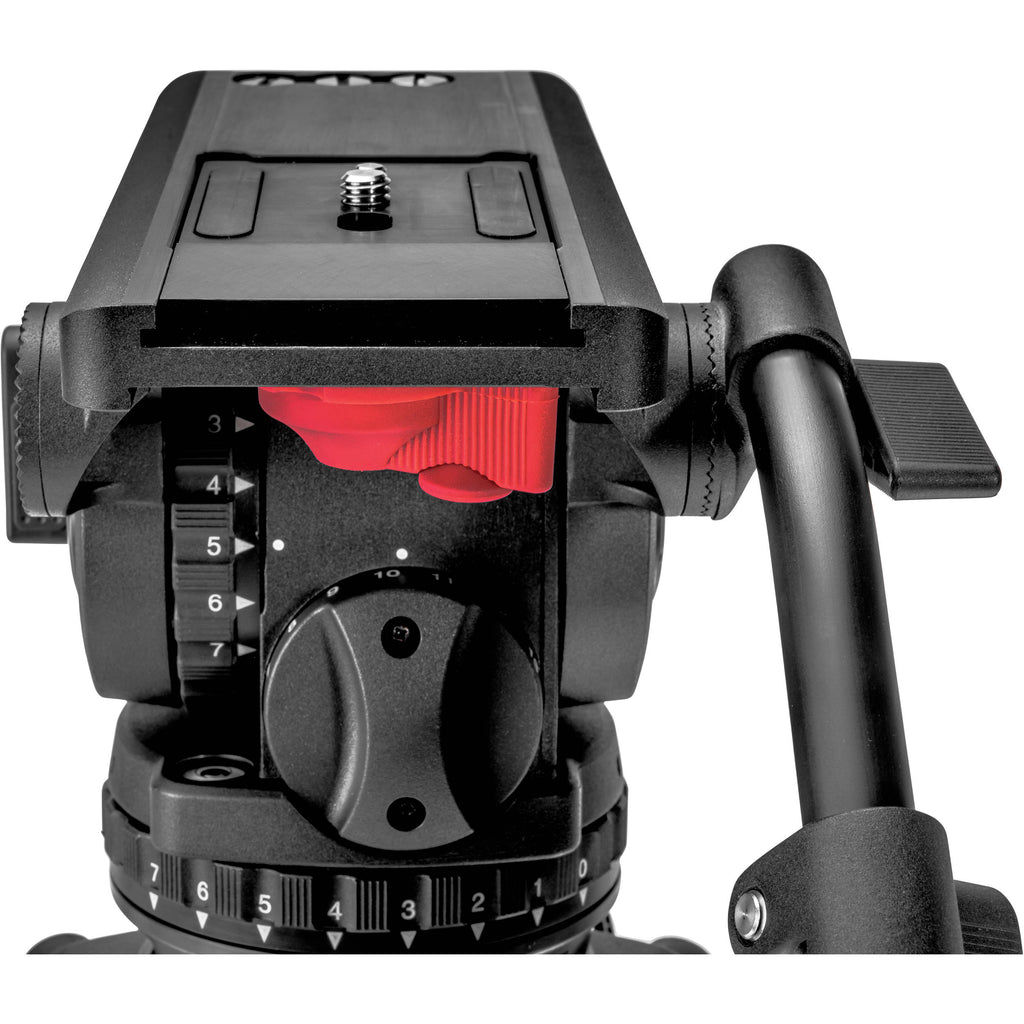

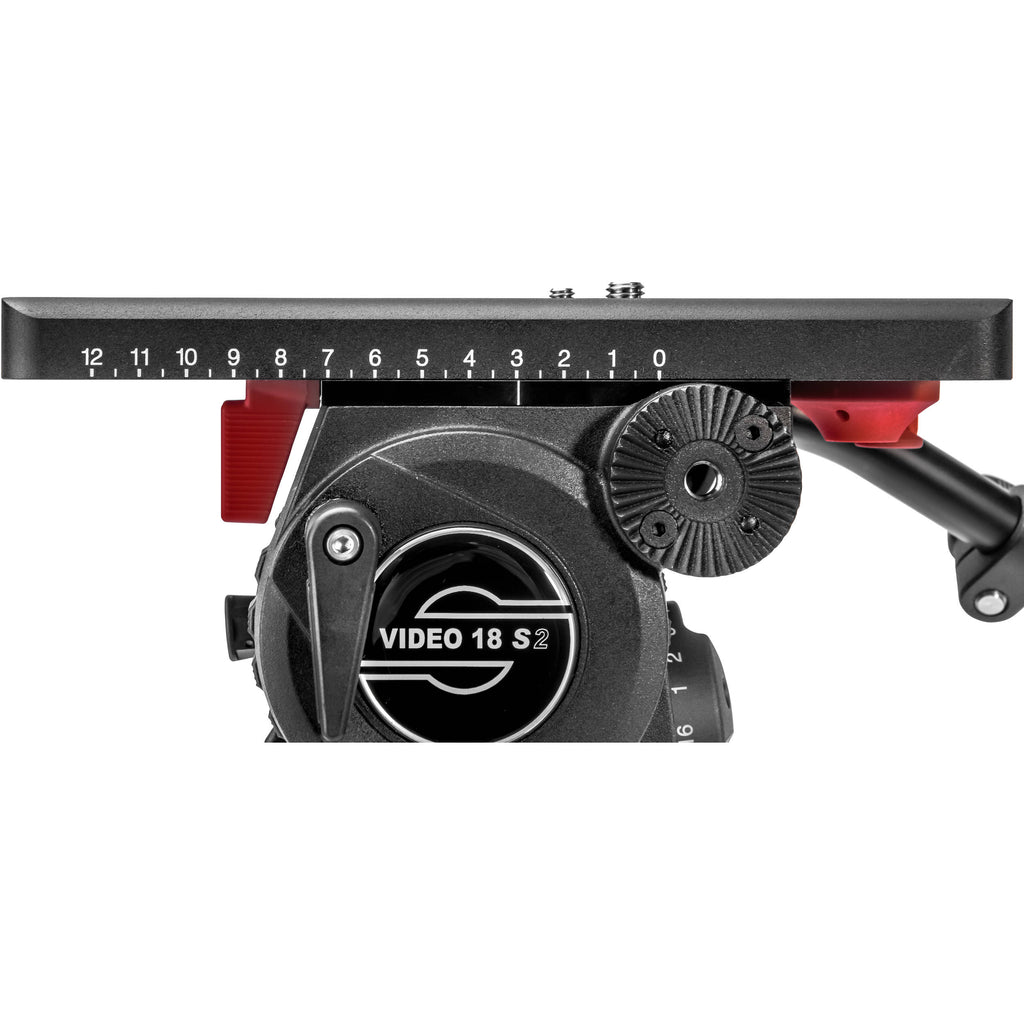

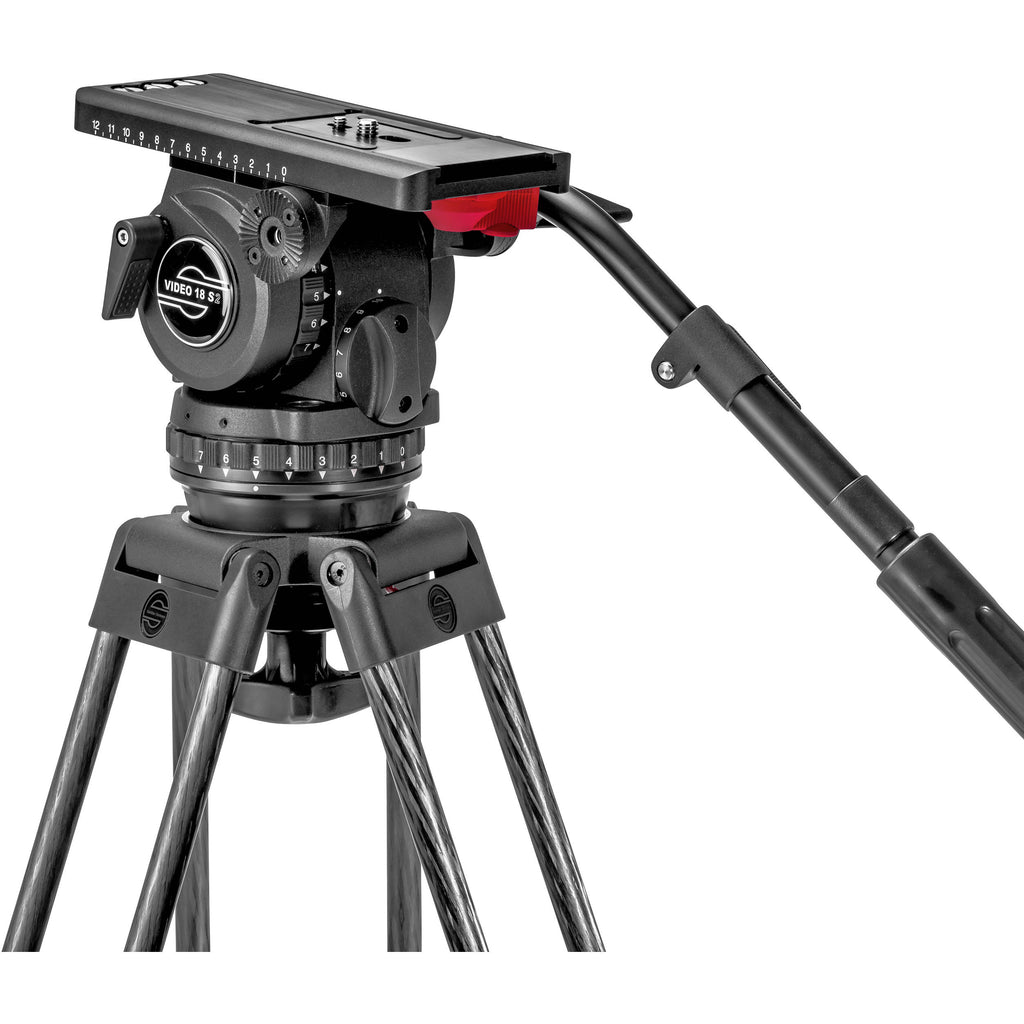

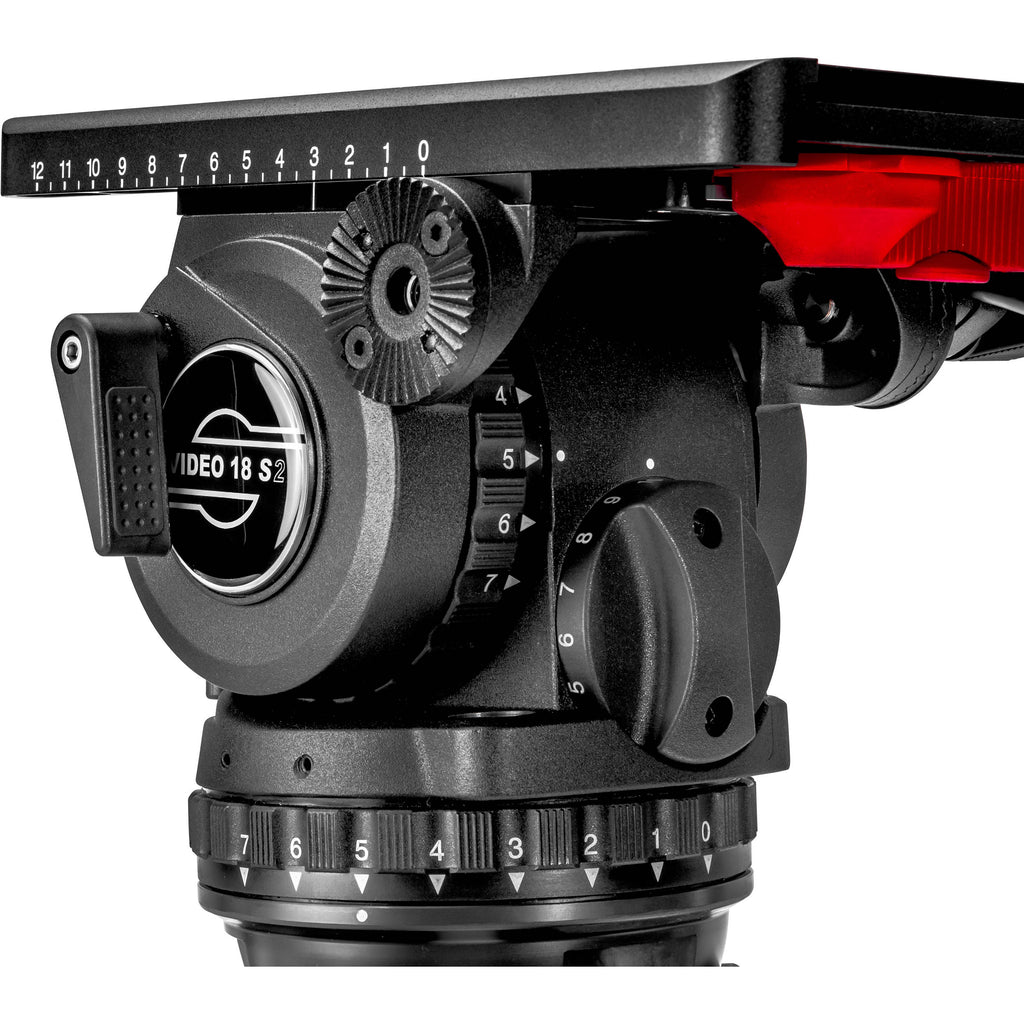

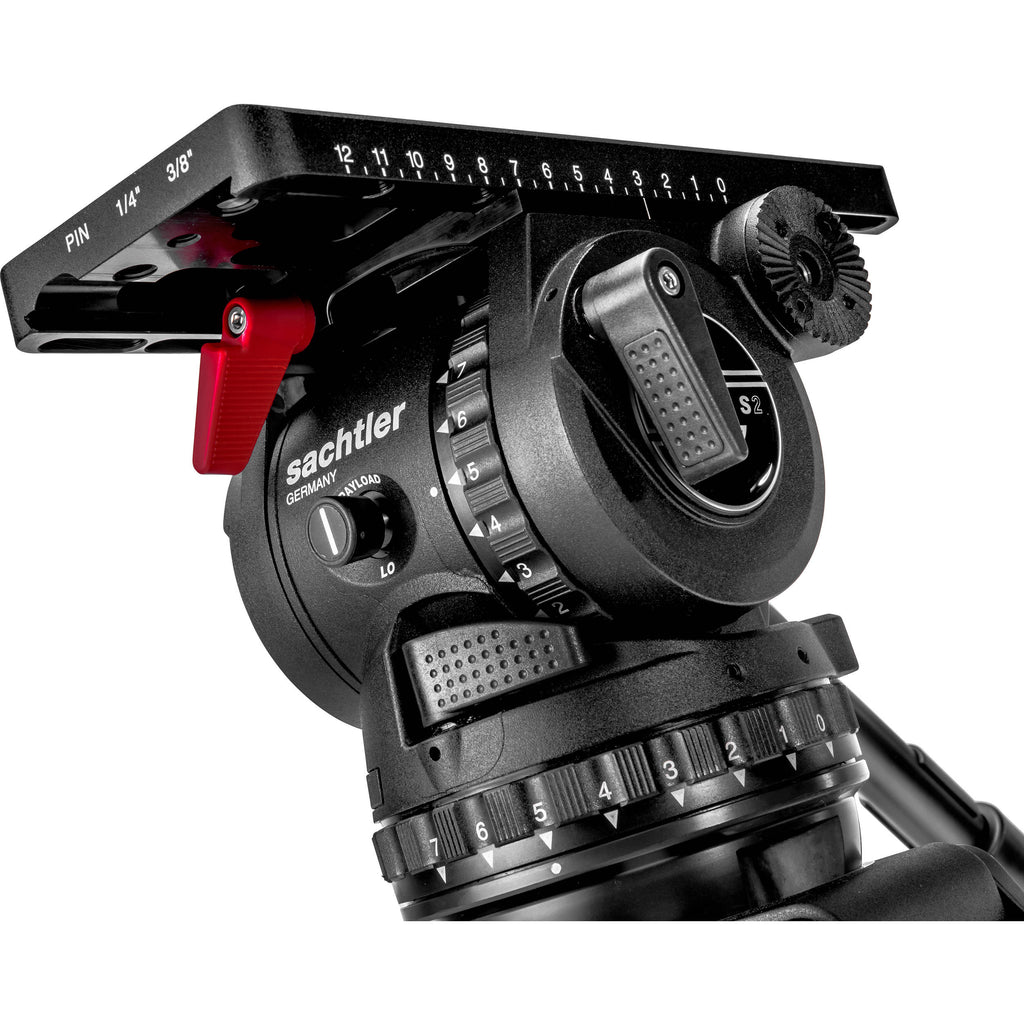

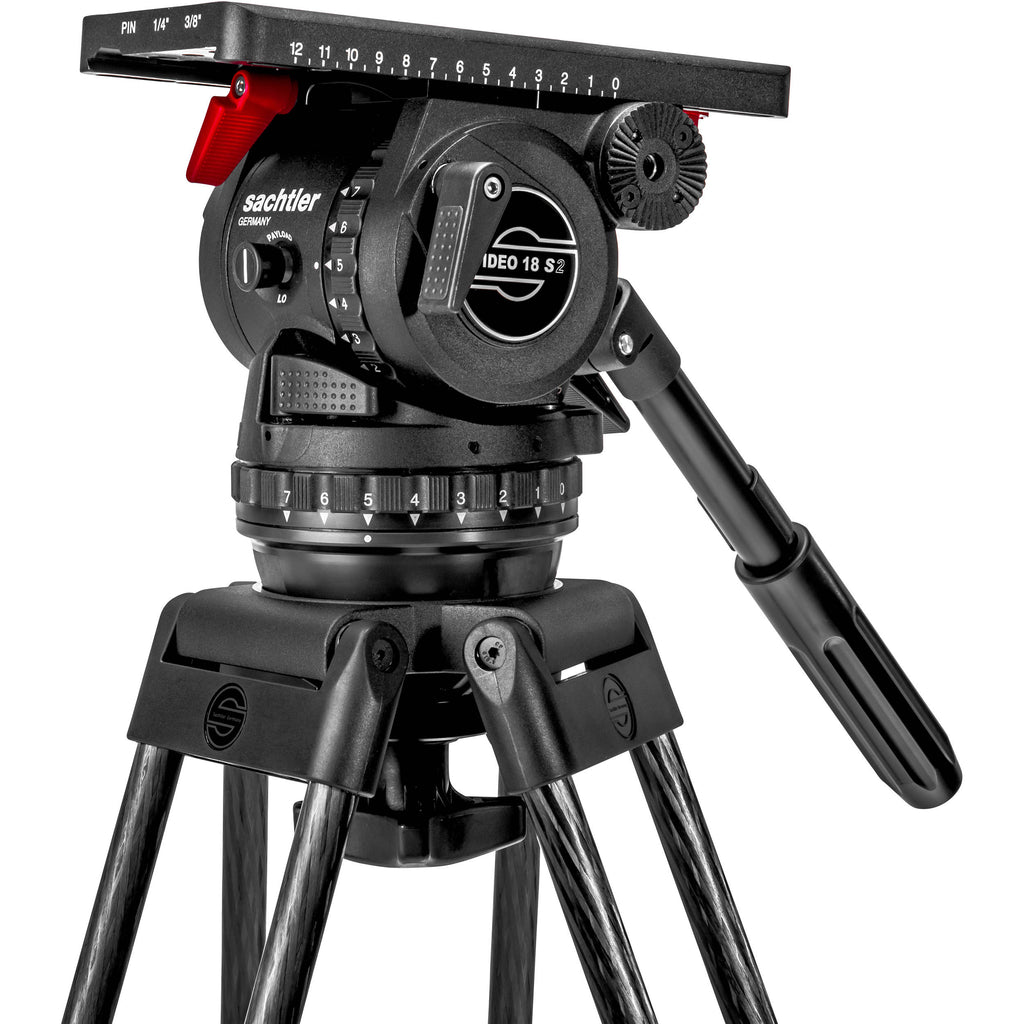

The top of the Video 18 S2 head is dominated by a sliding balance platform that accepts Sachtler's convenient Touch & Go quick release camera plate. Once the plate is secured, the entire platform adjusts to balance your camera setup. At the front of the platform, parking spaces for 1/4"-20, 3/8"-16, and registration pin screws are available for when they are not being used. Both sides of the head feature rosette mounts for pan handles. A right-side pan handle is included with the Video 18 S2. The base of the head terminates in a 100mm bowl mount for coupling with industry-standard tripods, jibs, sliders, or other grip equipment that feature 100mm bowls.

Camera Plate Features	Sliding Balance Plate, Quick Release
Camera Plate Type	Touch & Go Plate 16

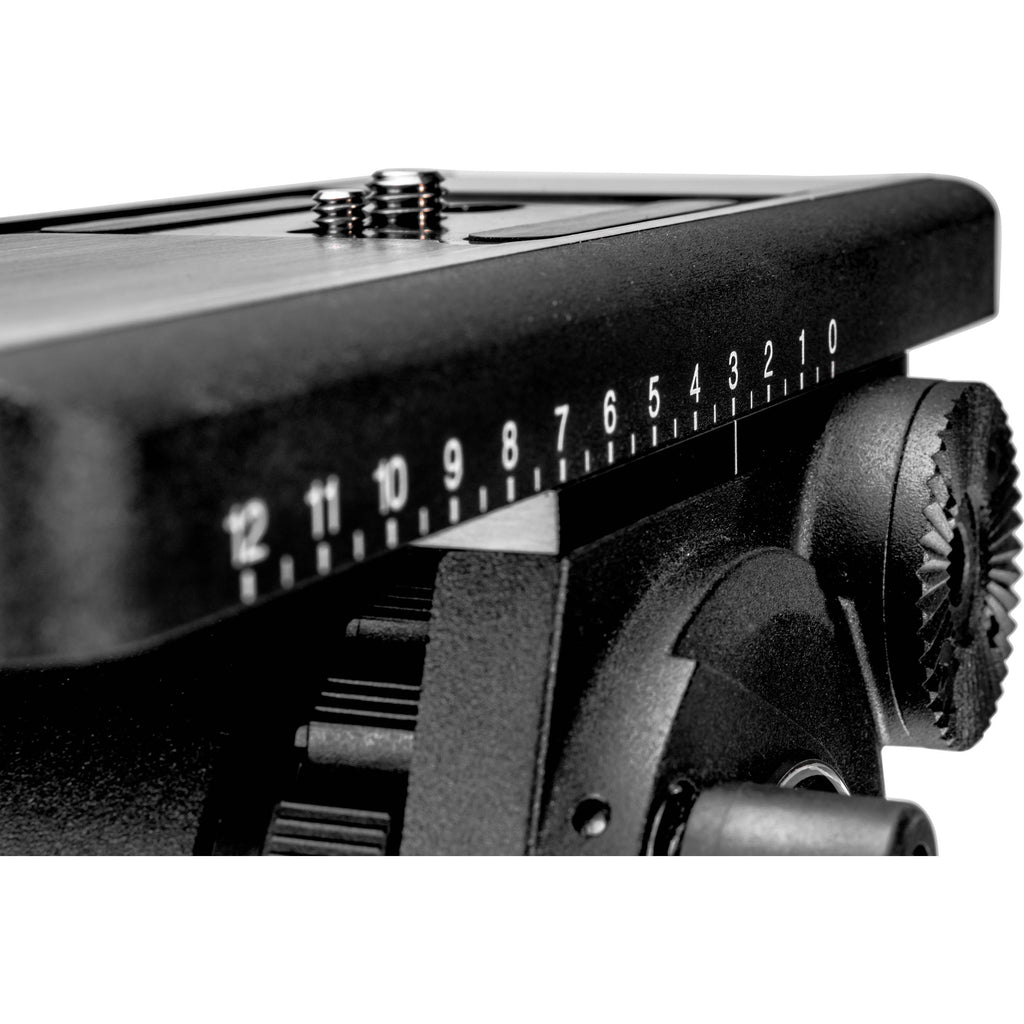

Balance Plate Sliding Range	4.7" / 120 mm

Base Mount

100 mm Half Ball

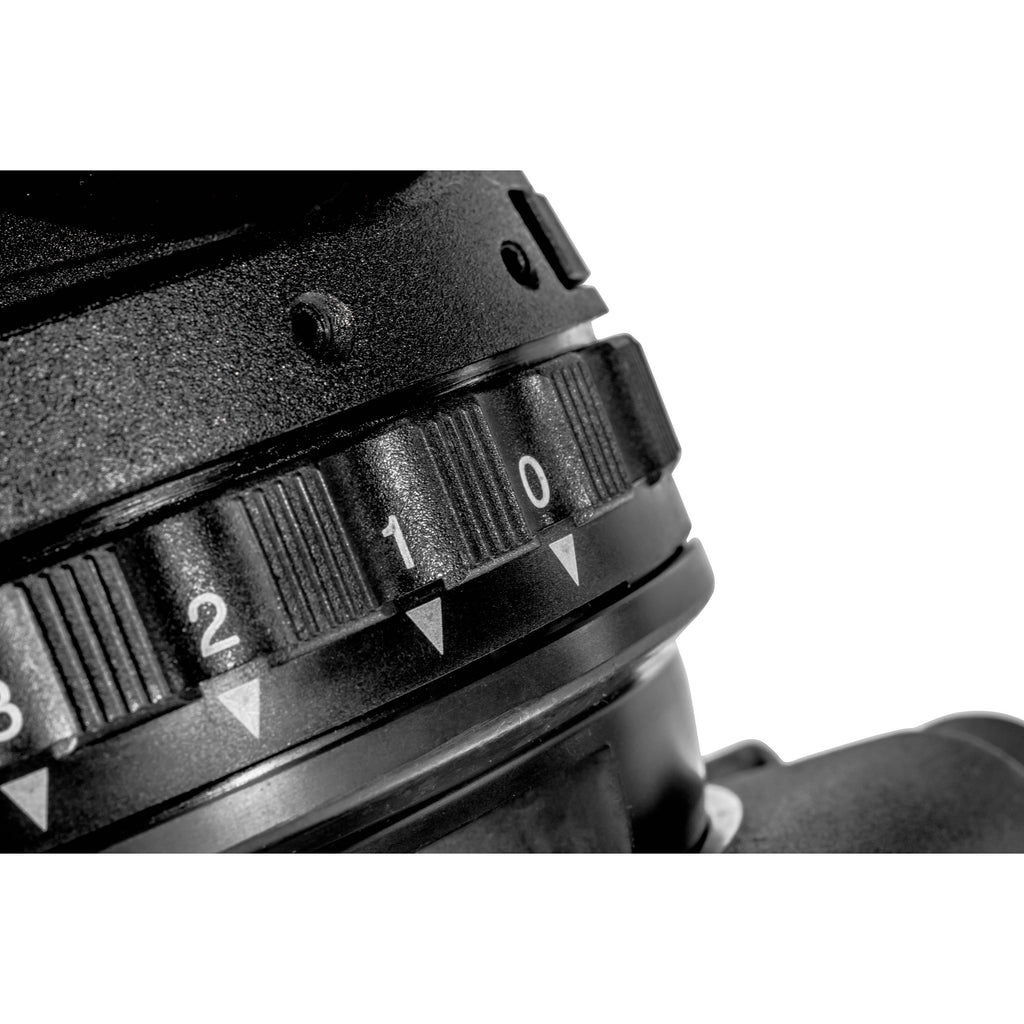

Drag Control	Tilt: 7-Step Plus 0
Vertical Tilt	+90° to -70°
Panning Range	360°
Independent Pan Lock	Yes

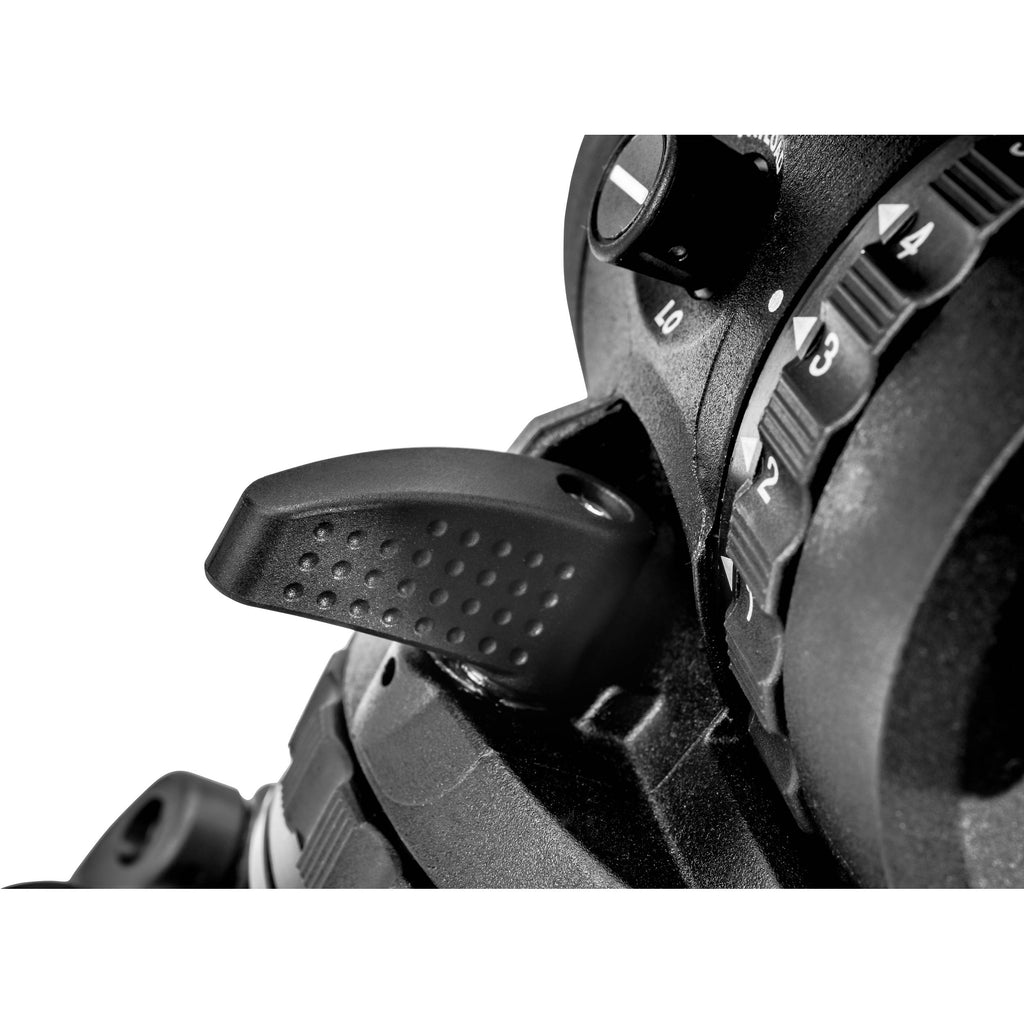

Independent Tilt Lock	Yes

Load Capacity	4.41 to 48.5 lb / 2 to 22 kg
Counter Balance	Incremental 16-Step
Bubble Level	1 x Illuminated
Operating Temperature	-40 to 140°F / -40 to 60°C
Weight	9 lb / 4.1 kg

Package Weight	11.15 lb
Box Dimensions (LxWxH)	18 x 10.3 x 7.9"
