- Video 20 S1 Fluid Head
- Speed Lock CF HD Tripod
- Mid-level Spreader
- Rubber Feet
- Padded Bag
- 16-step Counterbalance
- Supports 4-55 lbs (2-25kg)

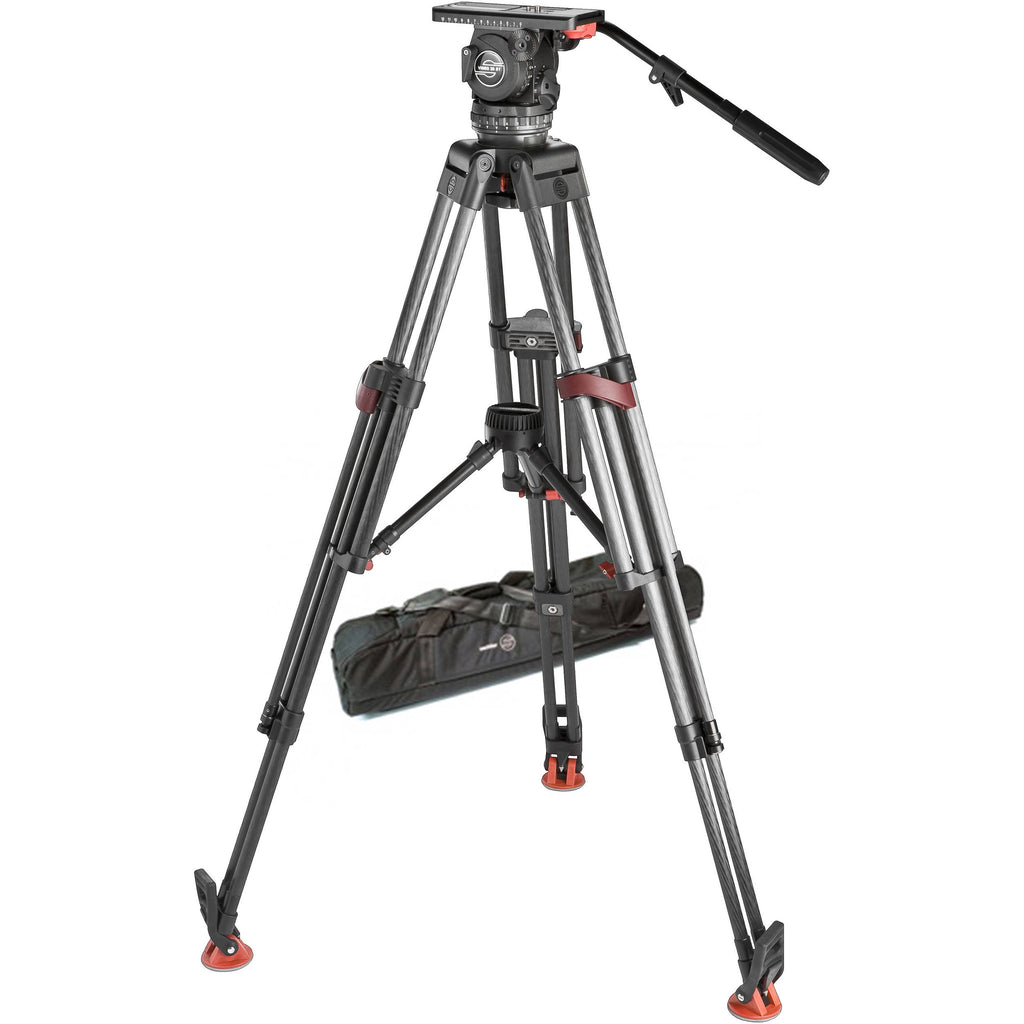

The Sachtler System 20 S1 SL HD MCF brings together the update of a classic fluid head with a solid, quick-action tripod to provide a professional level of support for today's news-gathering videographer. Whether you're shooting with a large ENG camcorder or the latest video DSLR, this system--which also includes mid-level spreader, rubber feet, and a carry bag--will give you the quick, easy balance and flexible control you need.

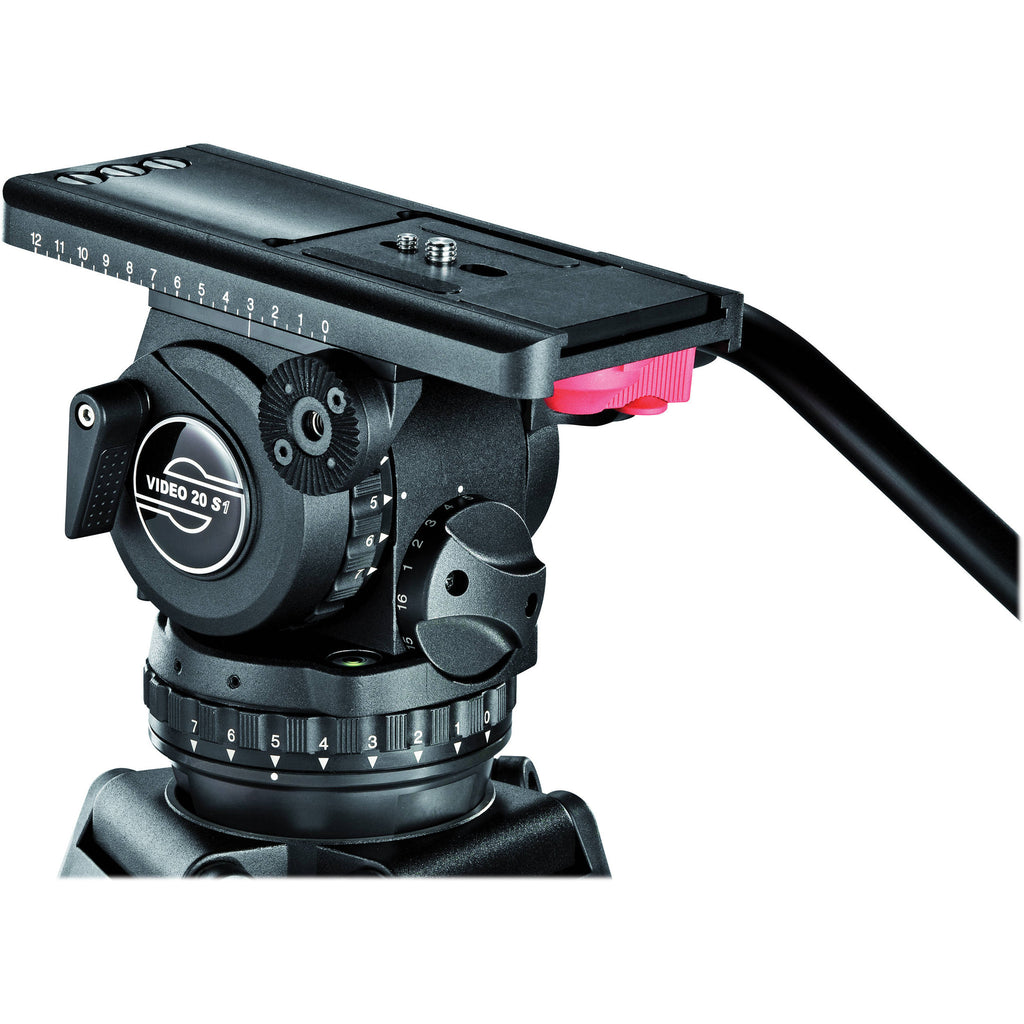

- Video 20 S1 Fluid Head
- This relaunch of the legendary Video 20 head incorporates a wider payload range and a faster, simpler balancing system. The increased range means that even lightweight cameras--such as video DSLRs--can be used effectively, aided by a 16-step counterbalance system that allows for fine degrees of tuning. Like its predecessor, the Video 20 S1 can also easily handle heavier ENG and EFP camcorders, with a Boost Button included for sudden shifts in payload range. Other features include 7 levels of drag, a self-illuminating bubble level, a Touch and Go plate for speedy mounting and removal, and Sachtler's already proven Speedbalance technology.
- Speed Lock CF Tripod
- The Speed Lock CF is among the fastest two-stage tripods in the world. This extremely sturdy and twist-resistant carbon fiber tripod ensures that you're already shooting while everyone else is still setting up. Simply release the three easy-to-reach clamps and you're ready for action. The patented clamping system lets you adjust the tripod smoothly and safely, even with a camera mounted, while the carbon fiber construction ensures minimal load-free weight, increasing stability and twist resistance.

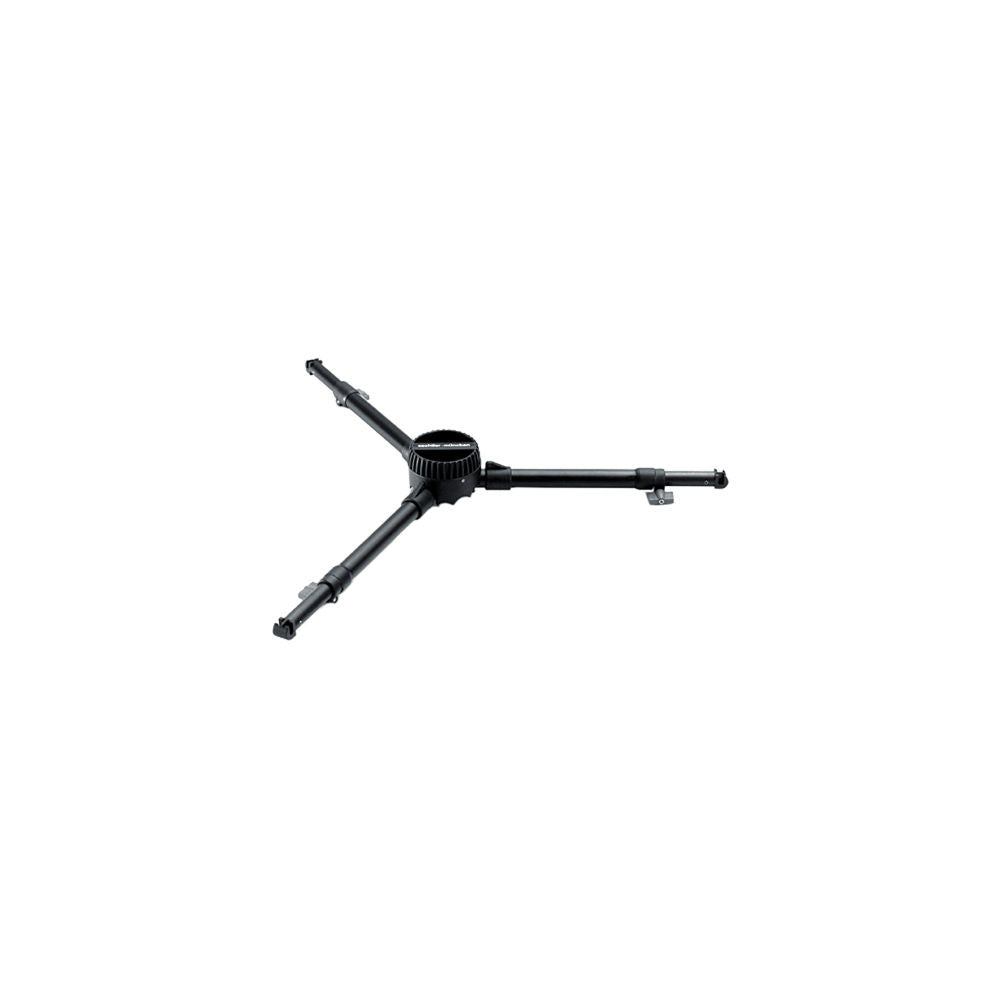

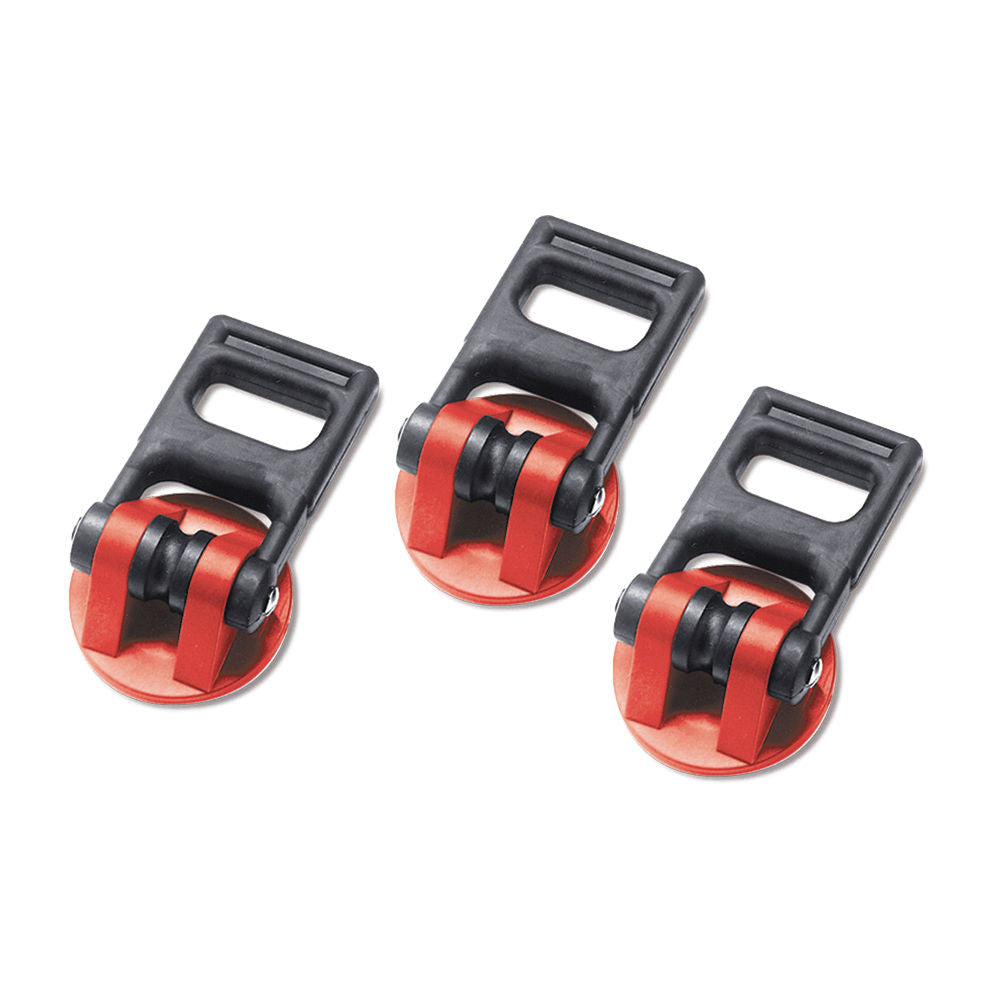

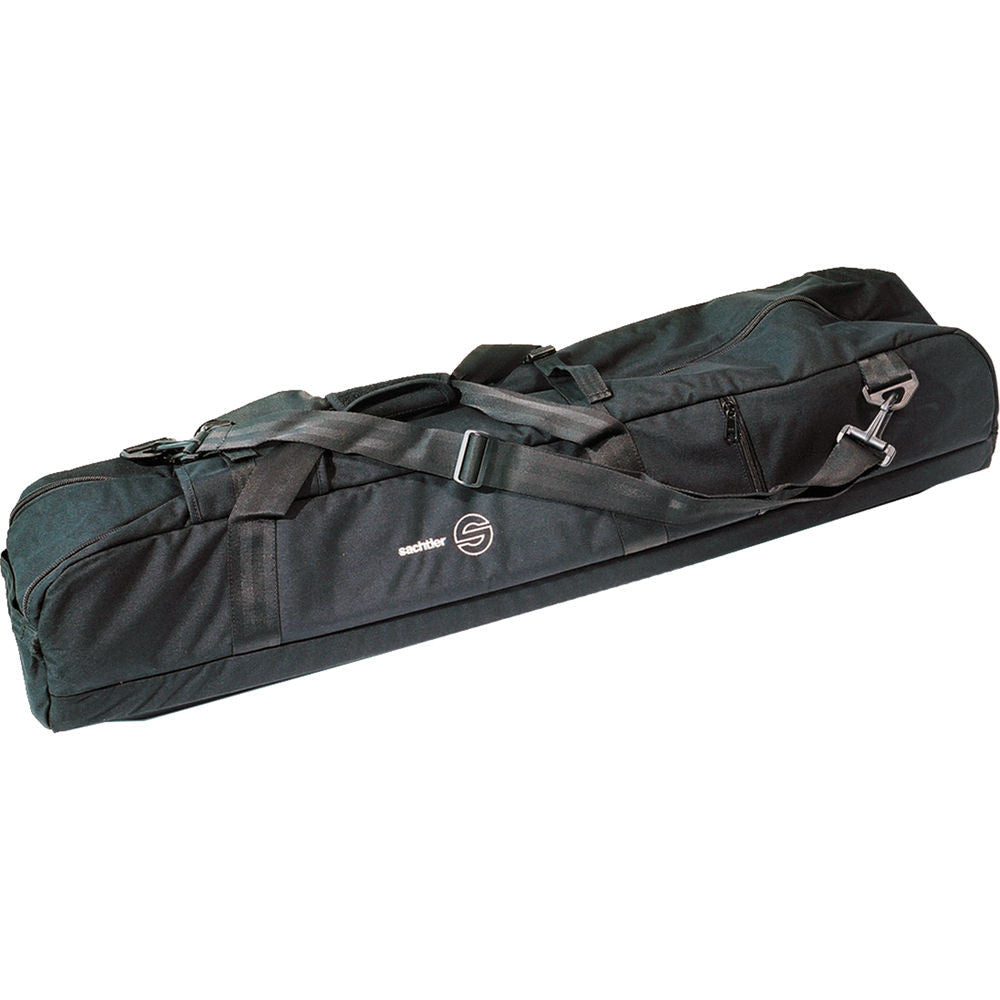

- Mid-level Spreader, Rubber Feet, Carry Bag
- The included mid-level spreader ensures absolute stability regardless of the working surface, while a set of rubber feet will protect floors from scratching. Topping off the system is the ENG/EFP padded bag, which comfortably and quickly contains the whole kit for efficient transport.
| General |
| Load Capacity | 4-55 lbs (2-25kg) |
| Maximum Height | 68.5" (174cm) |
| Maximum Height w/o Column Extended | N/A |
| Minimum Height | 28.7" (73cm) |
| Folded Length | 37" (94cm) |
| Leveling Bubble/Illuminated | Yes/Yes |
| Weight | 22.7 lbs (10.3kg) |
| Head |
| Counter Balance System | 16 Steps + Boost Button |
| Quick Release/Wedge Plate | Touch & Go Plate 16 |
| Balance Plate | 4.7" (120mm) |
| Tilt Drag | 7 Steps |
| Tilt Range | +90° to -70° |
| Tilt Lock | Independent |
| Spring Loaded Counter Balance | 7 Steps |
| Pan Range | 360° |
| Pan Lock | Independent |
| Legs |
| Material | Carbon Fiber |
| Head Attachment Fitting | 100mm |
| Leg Stages/Sections | 2/3 |
| Leg Lock Type | Quick Clamp Torque Lock |
| Independent Leg Spread | Yes |
| Spiked/Retractable Feet | Spiked |
| Center Brace | Mid-level |
| Packaging Info |
| Package Weight | 27.9 lb |
| Box Dimensions (LxWxH) | 41.0 x 10.0 x 10.0" |
In the Box
Sachtler System 20 S1 SL HD MCF
- Video 20 S1 Fluid Head
- Telescoping Pan Bar
- Speed Lock CF HD Tripod
- Mid-level Spreader
- 3 x Rubber Feet
- Padded Bag
- Limited 1-Year Warranty, Extendable to 2-Years with Product Registration
