Sachtler FSB 14 MKII Tripod System Overview
-
1Description
-
2Sachtler FSB 14 Mark II Fluid Head with Touch & Go Plate (100mm)
-
3Sachtler CF-100ENG 2CF Carbon Fiber 2-Stage Tripod Legs (100mm Bowl) - Supports 88 lbs
-
4Sachtler Spreader SP 100 On-Ground Tripod Spreader - for all 100mm Bowl Tripods (Except DA-100 Short Tripod)
-
5Sachtler ENG 2 Padded Bag

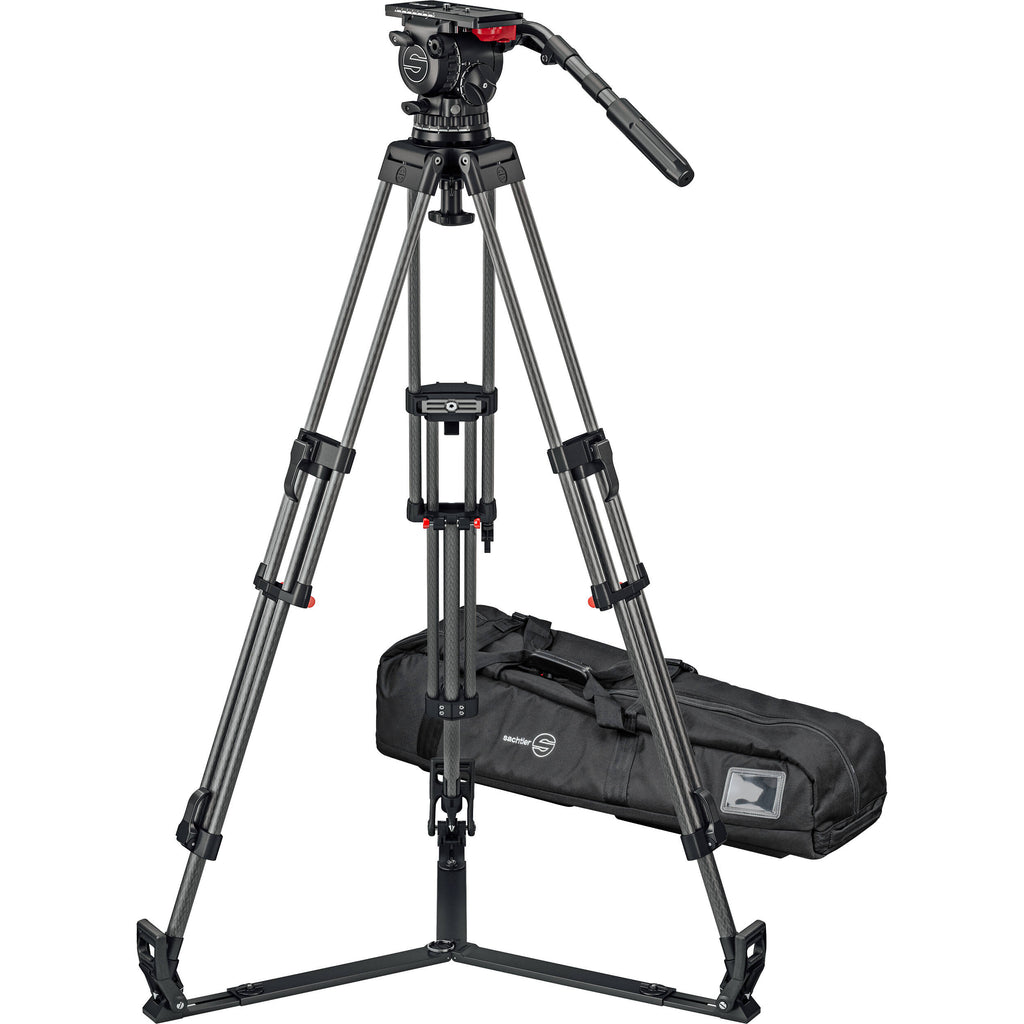

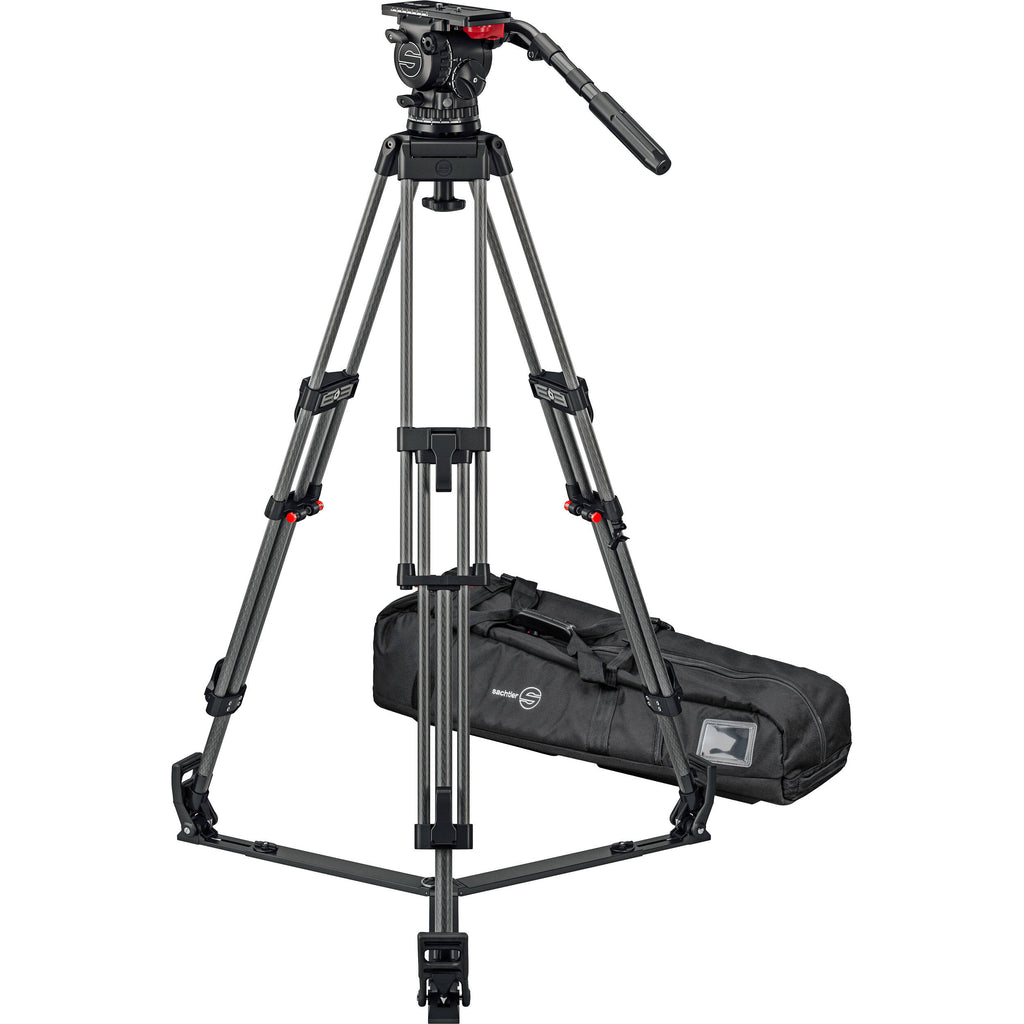

Set up, move fast, and go quickly from tripod mounted to handheld with the Sachtler FSB 14T Mk II 100mm Touch & Go Head with ENG 2 Carbon Fiber Tripod System. This bundle includes the Sachtler FSB 14T Mark II fluid head, the ENG 2 carbon fiber tripod legs, a ground spreader, and a padded carry bag. Supporting cameras weighing up to 35.3 lb, the system allows you to follow the action when shooting on hard or smooth terrain. The ground spreader folds up inside the carbon fiber legs, so you can just grab and go, and the included padded bag holds your gear when you aren't shooting.

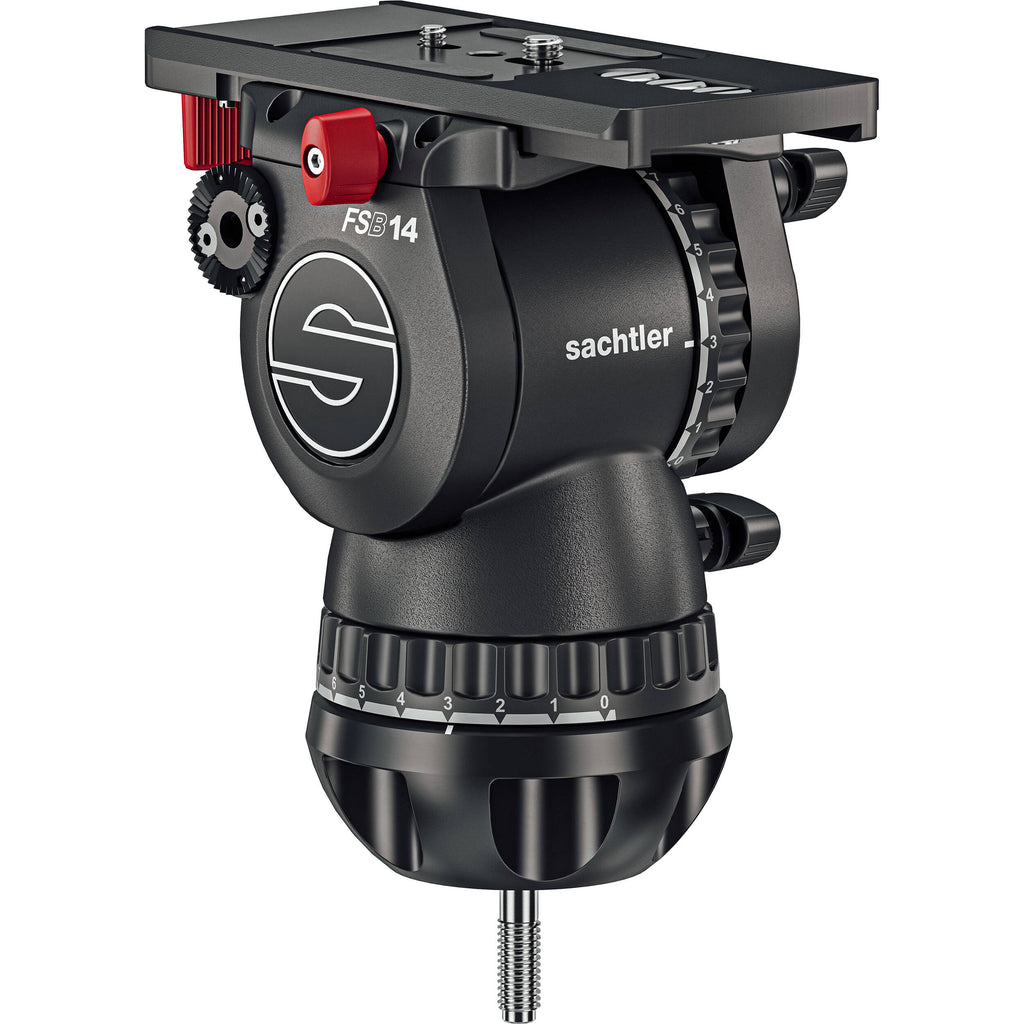

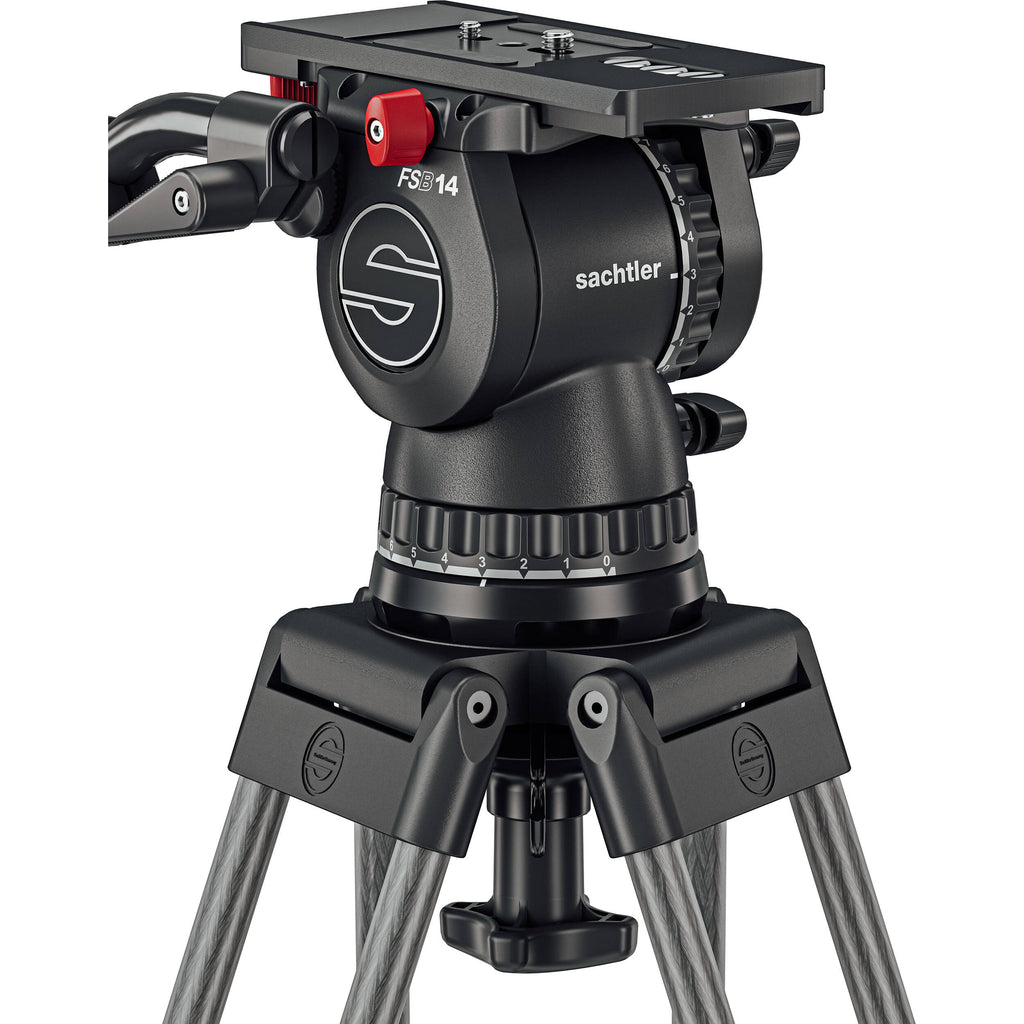

Sachtler FSB 14 Mark II Fluid Head with Touch & Go Plate (100mm)
Create fluid and smooth pans and tilts while supporting a wide range of camera heights with the precision-made Sachtler FSB 14 Mark II Fluid Head with Touch & Go Plate, which supports payloads up to 35.3 lb. Designed to accommodate digital cinema-style cameras, the head offers Sachtler's Touch & Go QR plate that pops in and out of the fluid head's camera platform. The platform features a 4.7" back and forth adjustment for balance. It also features a 15-step counterbalance along with horizontal and vertical 7-step drag controls. In addition, a zero setting on the pan and tilt drag controls allows free movement of the head, useful for whip pans and tilts.
Suitable for interior and exterior work, the head offers consistent and reliable operation from -40 to 140°F, and it features a 100mm bowl with an integrated flat base, allowing you to mount the head on legs and supports with either a 100mm bowl or a flat base fitting. The head features a bubble level with a prism system, so you can set your head to level while seeing the bubble level from above or to the side. The bubble level is illuminated for easy leveling in poor light conditions. A pan handle that can be mounted on either side of the head is also included.
Leveling Ball with Flat Base
The fluid head features a 100mm ball for quick leveling on your tripod legs. The ball features a flat base, so you can also mount it on a flat surface.
Frictionless Leakproof Fluid Damping
Frictionless leakproof fluid damping with five levels of drag enables precision adjustment to match the needs of your shot. A zero setting allows complete disengagement of drag for fast panning.
Camera Mounting and Balancing
Featuring a Touch & Go QR plate, the top of the head features a sliding range of 4.7" for balancing your camera rig on the tripod head.

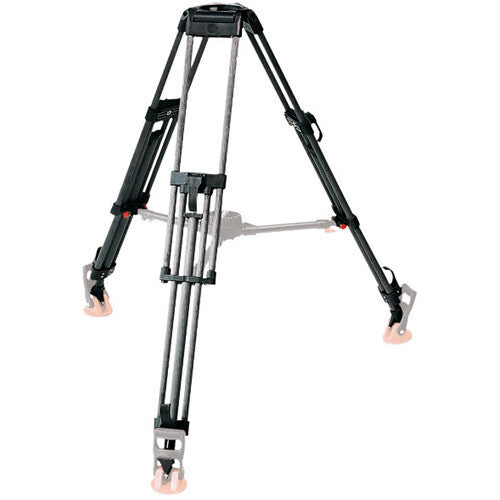

Sachtler CF-100ENG 2CF Carbon Fiber 2-Stage Tripod Legs (100mm Bowl) - Supports 88 lbs
The CF 100 ENG 2CF two stage tripod, provides maximum stability and carrying capacity. Constructed and drawn out of one-piece carbon fiber material, it is twist resistant and lighter than dural aluminum. It features a 100mm / 4" bowl, tube diameter of 22mm (0.87") and is fitted with the Sachtler quick clamping system, so you can securely - and visibly - lock the tripod.
The CF 100 ENG 2CF's double extension provides greater stability, allowing an extended height range with a payload of 88 lb., and with a weight of only 5.3-lb it's extremely lightweight, solid and stable.
Carbon fiber construction with 22mm (0.87") tube diameter
Maximum height of 59.0-inch
Quick clamping system, locks tripod legs in seconds
Built-in transport safety cord, preventing the legs from opening while in transport
Folding tripod handle, for comfortable carrying of tripod in horizontal position
for extra stability the
CF-100 ENG HD 2CF is also available for a load capacity of 210 lb at a height of 61.8-inch

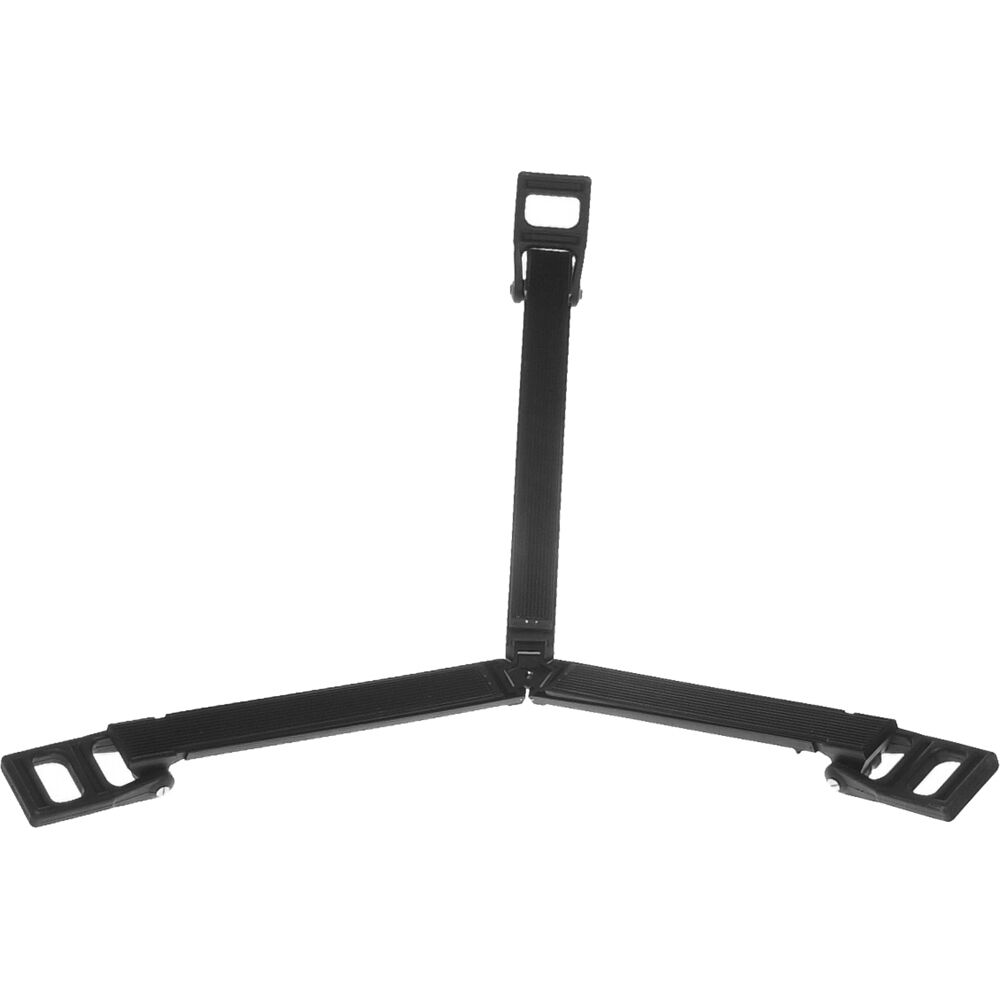

Sachtler Spreader SP 100 On-Ground Tripod Spreader - for all 100mm Bowl Tripods (Except DA-100 Short Tripod)
A On-Ground Spreader is chosen when shooting is performed on a level surface, such as studio, city streets, offices, sport fields and stadiums. It allows for rapid set-up and pull down by keeping tripod legs at an equal or preset distance relative to each other. Attaches directly to the feet at the bottom of a tripod and its arms are telescopic to allow extension of a tripod leg without detaching the spreader. Fits all 100mm bowl tripods (except DA-100 Short tripod)

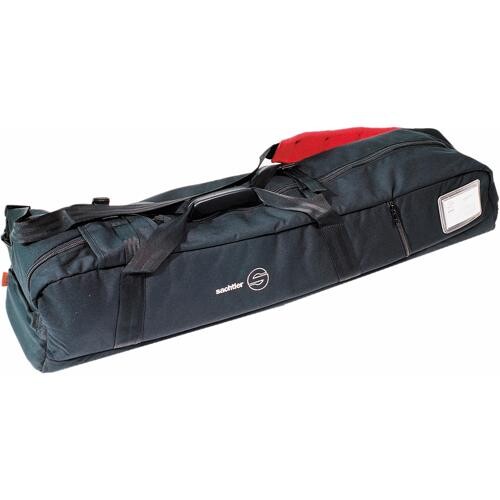

Sachtler ENG 2 Padded Bag
The Sachtler ENG 2 Padded Bag is a soft tripod bag designed to carry various Sachtler tripods with fluid heads up to 35" long. The case is made from water-resistant Cordura nylon and can be carried by the interlocking handles or the attached, adjustable shoulder strap.
- Water-resistant Cordura nylon
- Padded interior
- Zipper closure
- Interlocking handles
- Attached, adjustable shoulder strap
- Sachtler DV 2, DV 4, DV 6 and DV 8 systems on ENG 75/2 D tripod
- Sachtler DV 8 with 100mm ball, DV 12, DV 15, Video 15, Video 18, Video 20 fluid heads on 2-fold extension or Speed Lock CF tripods
In the Box
- Sachtler FSB 14 Mark II Fluid Head with Touch & Go Plate (100mm)
- Sachtler Camera Plate 16 Touch and Go Quick Release Plate
- Sachtler 3470 Telescopic Pan Handle (Right) - for all DV Fluid Heads
- Sachtler Tie-Down Knob for 100mm Half Ball Clamping Bowl
- CR2032 Battery
- Sachtler CF-100ENG 2CF Carbon Fiber 2-Stage Tripod Legs (100mm Bowl) - Supports 88 lbs
- Sachtler Spreader SP 100 On-Ground Tripod Spreader - for all 100mm Bowl Tripods (Except DA-100 Short Tripod)
- Sachtler ENG 2 Padded Bag
Table of Contents
- Description
- Sachtler FSB 14 Mark II Fluid Head with Touch & Go Plate (100mm)
- Sachtler CF-100ENG 2CF Carbon Fiber 2-Stage Tripod Legs (100mm Bowl) - Supports 88 lbs
- Sachtler Spreader SP 100 On-Ground Tripod Spreader - for all 100mm Bowl Tripods (Except DA-100 Short Tripod)
- Sachtler ENG 2 Padded Bag
Sachtler FSB 14 Mark II Fluid Head with Touch & Go Plate (100mm) Specs
Camera Plate
| Camera Plate Features |
Quick Release, Sliding Balance Plate |
| Camera Plate Type |
Touch & Go Plate 16 |
| Camera Mounting Screw |
1 x 1/4"-20 Male with Locating Pin
1 x 3/8"-16 Male |
Head
| Base Mount |
100 mm Half Ball
Flat Base |
| Camera Platform Adjustment |
Yes, (4.7" / 120.0 mm) |
| Counter Balance |
Incremental 15-Step Plus 0 |
| Pan Handle Fittings |
2 |
| Included Pan Handle Length |
13.8 to 20.5" / 350 to 520 mm |
| Bubble Level |
1 x Illuminated |
Pan & Tilt
| Drag Control |
Tilt: 7-Step Plus 0 |
| Drag Type |
Fluid |
| Vertical Tilt |
+90° to -70° |
| Panning Range |
360° |
| Independent Pan Lock |
Yes |
| Independent Tilt Lock |
Yes |
General
| Load Capacity |
0 to 35.3 lb / 0 to 16 kg |
| Operating Temperature |
-40 to 140°F / -40 to 60°C |
| Weight |
7.1 lb / 3.2 kg |
Packaging Info
| Package Weight |
9.455 lb |
| Box Dimensions (LxWxH) |
18 x 9.9 x 8.1" |
Sachtler CF-100ENG 2CF Carbon Fiber 2-Stage Tripod Legs (100mm Bowl) - Supports 88 lbs Specs
General
| Head Mount Type |
100 mm Bowl |
| Maximum Working Height |
59" / 149.86 cm |
| Minimum Working Height |
15.5" / 39.37 cm |
| Closed Length |
27.2" / 69.088 cm |
| Materials |
Carbon Fiber |
| Weight |
5.3 lb / 2.41 kg |
Legs
| Leg Lock Type |
Flip Lock |
| Leg Sections |
3 |
| Feet Features |
Spiked |
| Spreader |
(Not Included) |
Packaging Info
| Package Weight |
8 lb |
| Box Dimensions (LxWxH) |
29 x 8 x 7.25" |
Sachtler Spreader SP 100 On-Ground Tripod Spreader - for all 100mm Bowl Tripods (Except DA-100 Short Tripod) Specs
Packaging Info
| Package Weight |
1.9 lb |
| Box Dimensions (LxWxH) |
14 x 3.5 x 3.4" |
Sachtler ENG 2 Padded Bag Specs
| Carrying/Transport Options |
Connecting Handles, Shoulder Strap |
| Type of Closure |
Zipper |
| Exterior Material |
Cordura, Nylon |
| Padded |
Yes |
| Interior Dimensions |
H: 7.9 x W: 8.5 x L: 35.4" / H: 20.1 x W: 21.6 x L: 89.9 cm |
| Weight |
3.6 lb / 1.6 kg |
Packaging Info
| Package Weight |
5.6 lb |
| Box Dimensions (LxWxH) |
39 x 12 x 5" |
Sachtler FSB 14 MKII Tripod System Reviews
