Sachtler Aktiv Series Video Head Overview

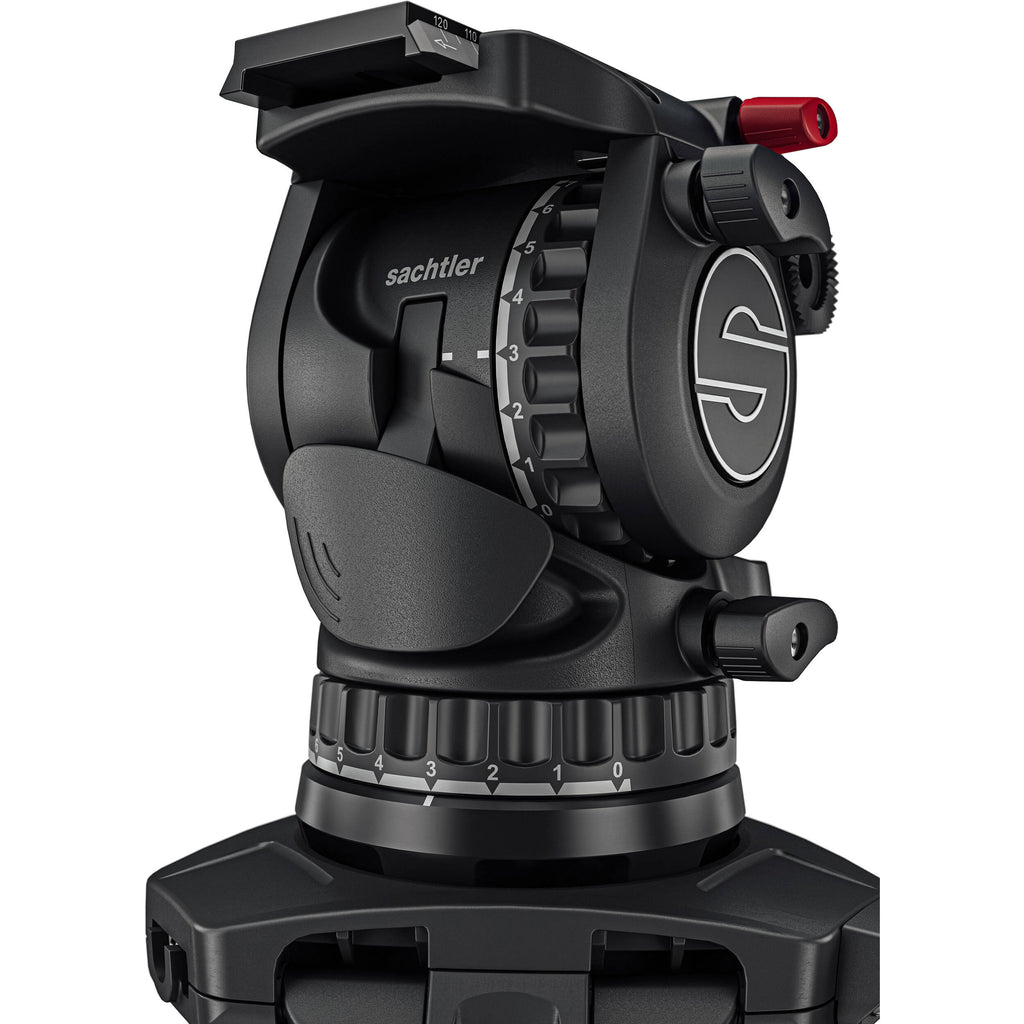

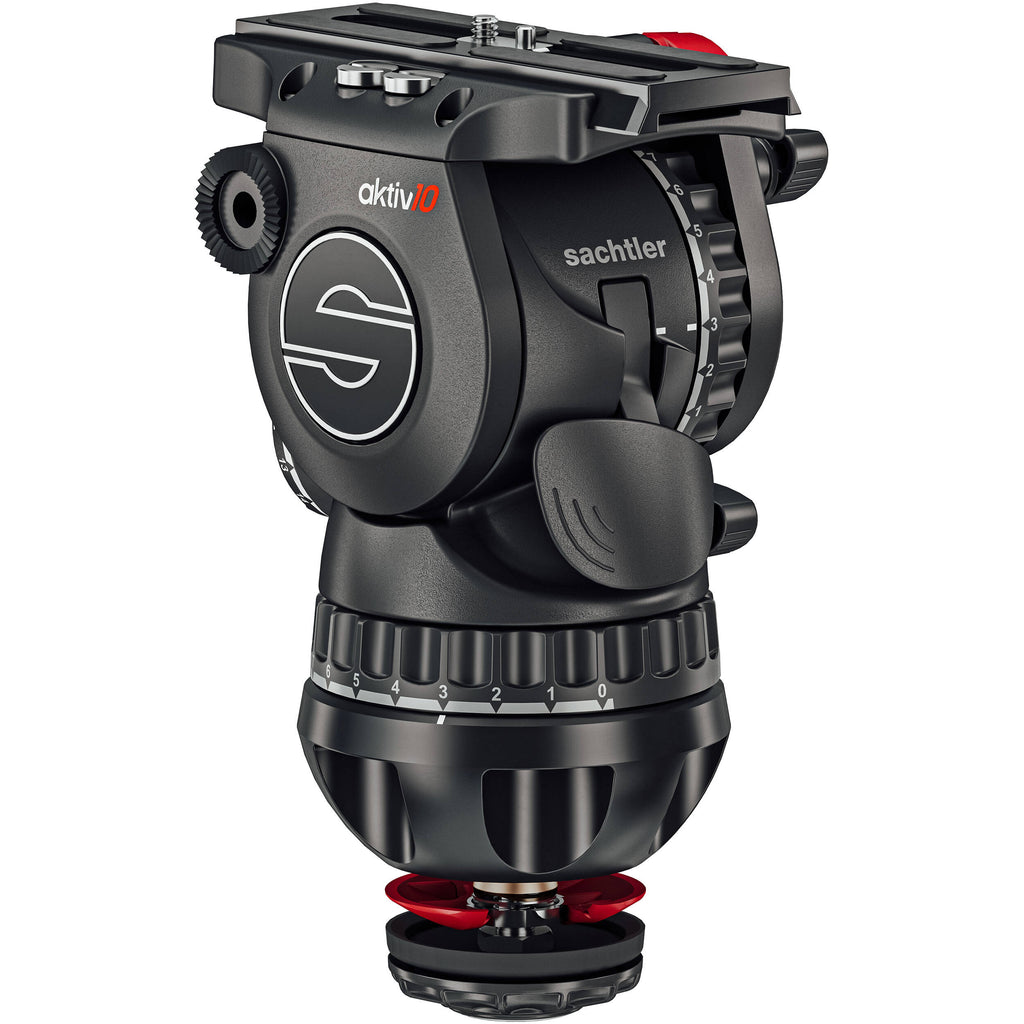

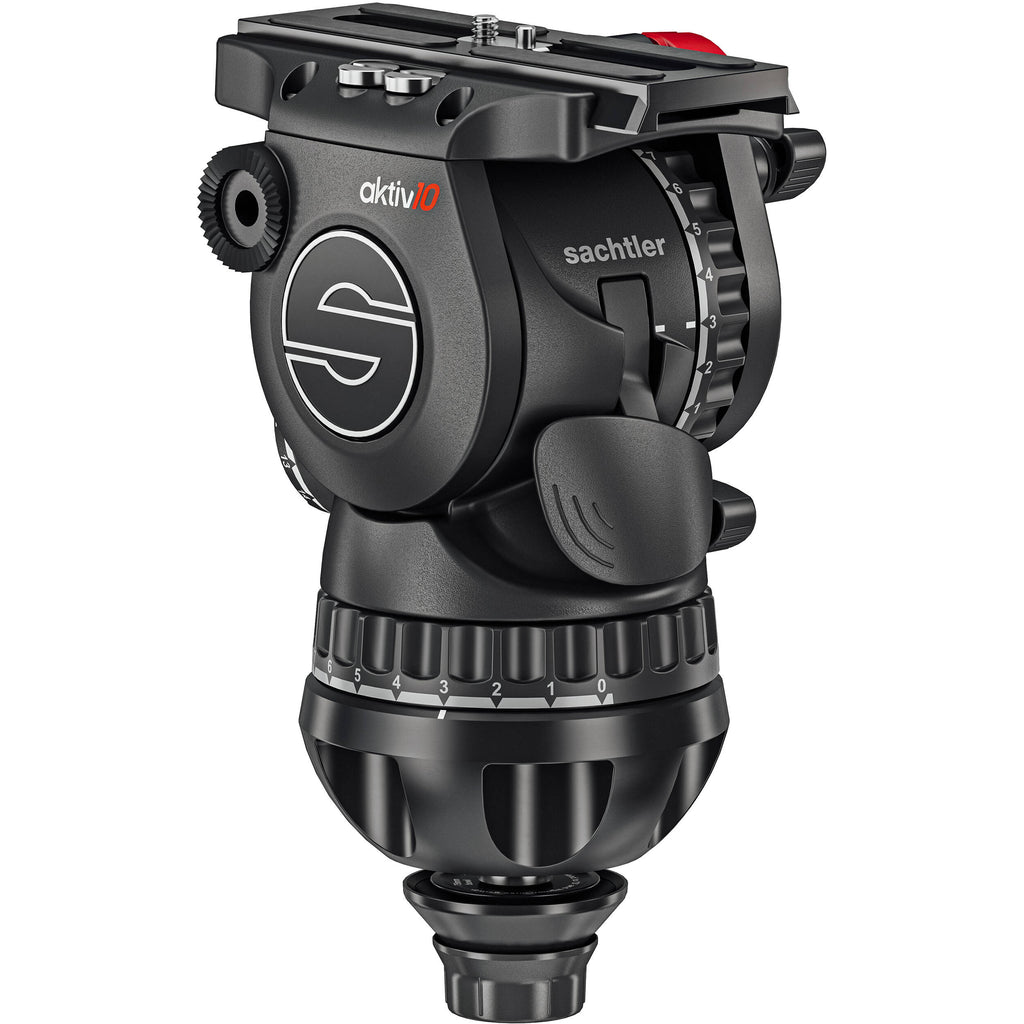

The aktiv10 Sideload Fluid Head uses Sachtler's truly innovative SpeedLevel technology to provide almost instant mounting and leveling of your camera rig on select Sachtler tripods. The clamp and stud SpeedLevel system saves precious time leveling your camera rig by eliminating the need to screw on a tie-down knob. Designed for documentary, news, and corporate production, the aktiv10 supports camera rigs weighing up to 26.5 pounds. This 100mm ball fluid head also features 15 steps of counterbalance, seven steps of pan and tilt drag, and zero settings for both balance and drag.

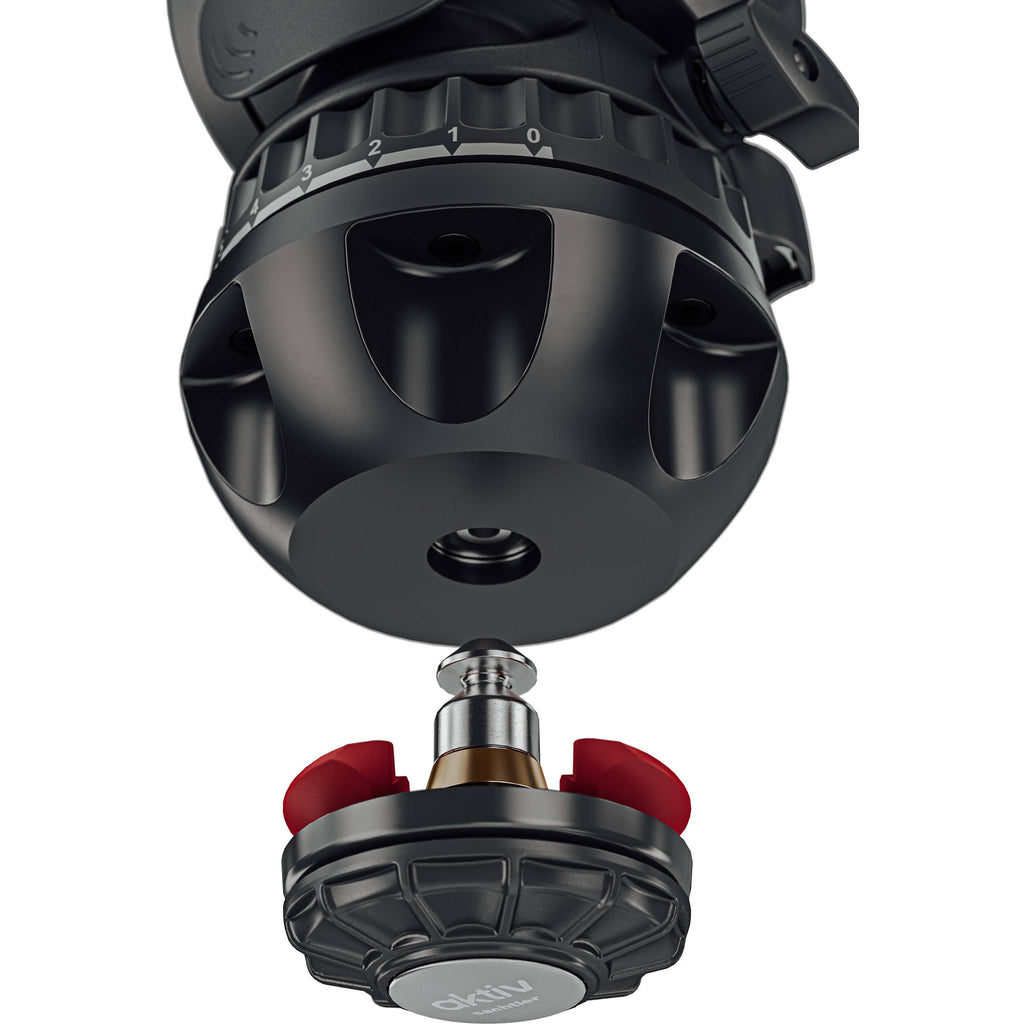

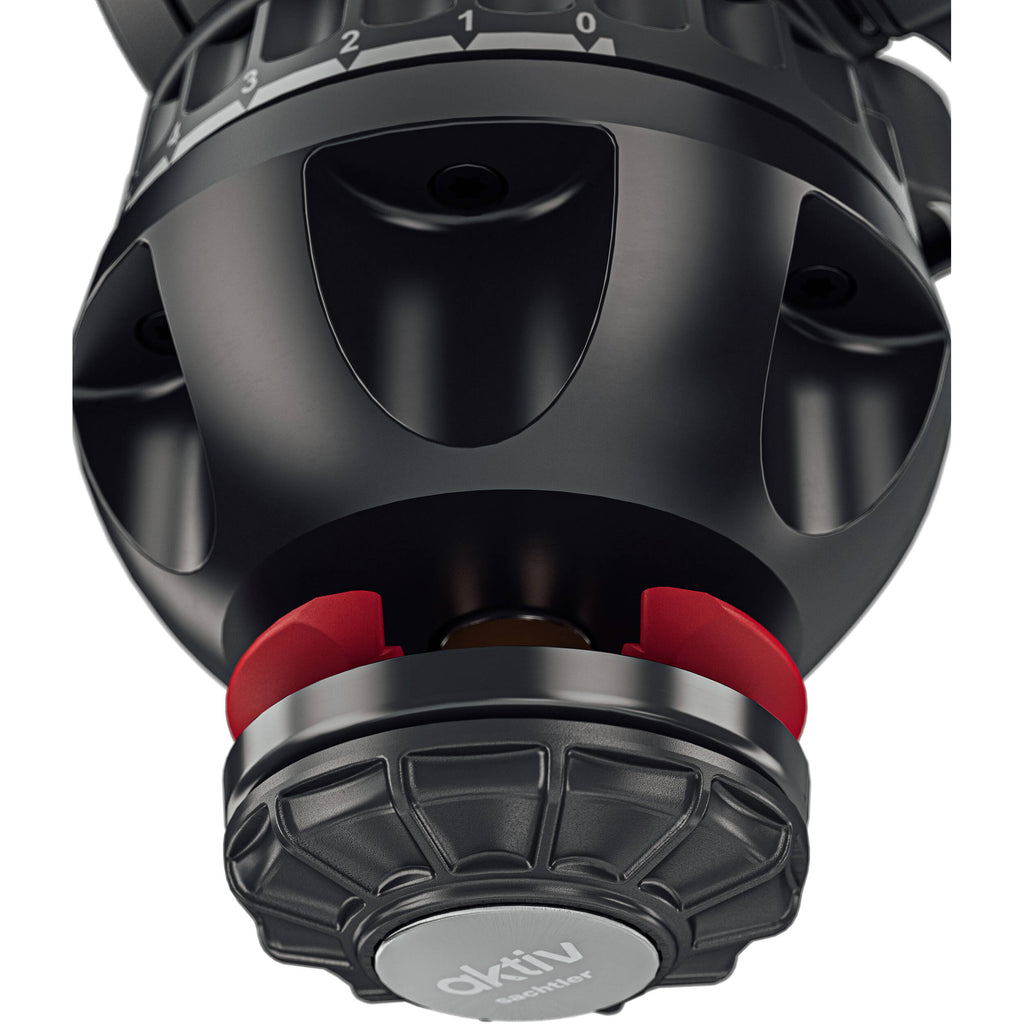

The proprietary Sachtler SpeedLevel technology replaces the traditional head screw and tie-down design with a strong clamp built into the head bowl and a stud component that clamps onto your tripod bowl or other mounting platform, such as a slider. Simply grasp the large lever on the head and pull it up to release the clamp, then press it down to lock your head in place. Partially lifting the lever allows you to quickly and easily level the head.

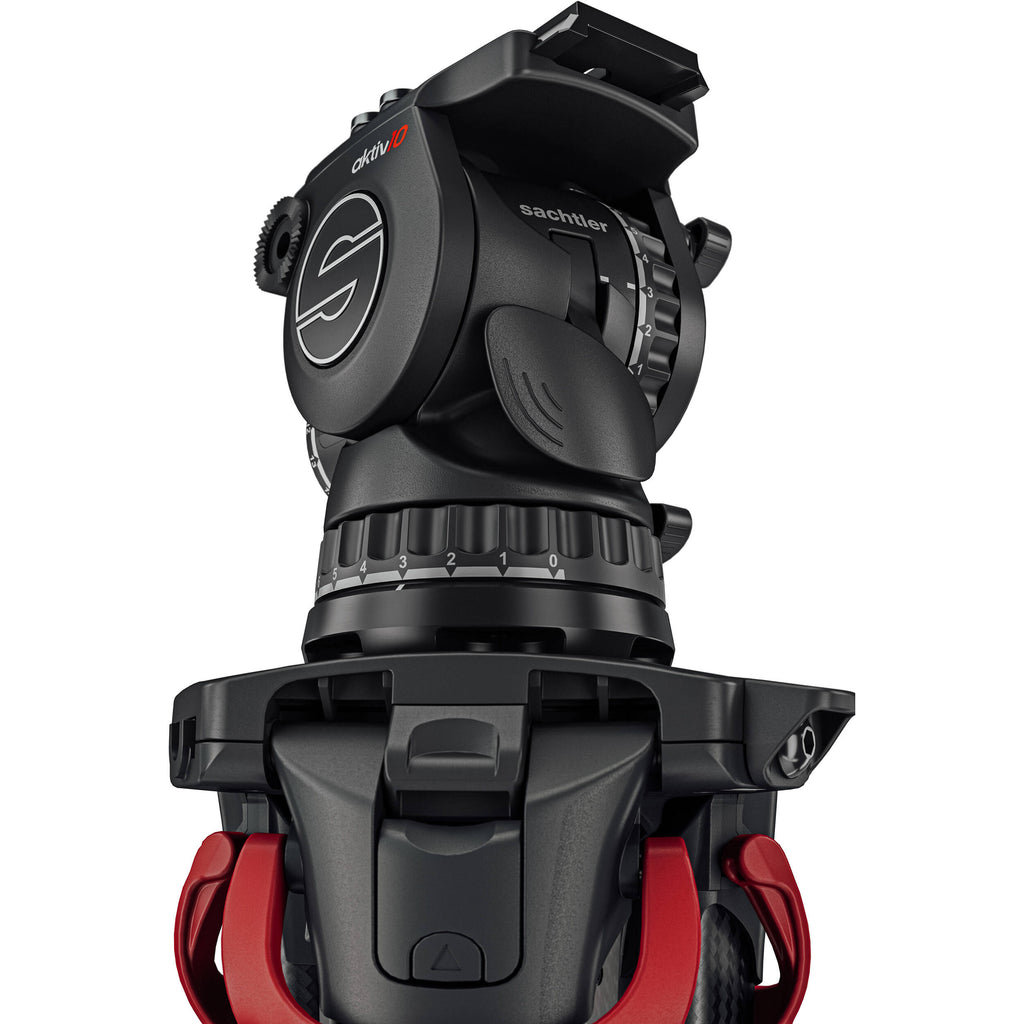

When used with a separately available flowtech tripod, the aktiv10 enables you to spread the legs flat for extremely low shots without a tie-down knob getting in the way. You can also mount your head directly onto a slider using a separately available aktiv system stud that screws onto support systems with a 3/8"-16 threaded stud.
The active 10's PrismBubble is a built-in prism level with two viewing windows that enable you to more easily level the head when the legs are at set at maximum height or at an awkward angle. The bubble level also has two levels of illumination�press once to light up the bubble level or hold longer to illuminate both the bubble level and the counterbalance and drag settings, a boon when working in darker environments.
Mount your camera using the included Sideload Plate S that has both a 1/4-20 camera screw and a locating pin to prevent twisting. With a sliding range of 4.7", this head balances quickly to accommodate variously configured rigs. The Sachtler aktiv10 head also features a detachable pan bar that can be mounted onto the rosettes on either the right or left side of the head.
aktiv Fluid Head Compatibility
Features
SpeedLevel Technology
SpeedSwap Base
PrismBubble Level
26.5 lb Capacity Fluid Head
Stepped Counterbalance and Drag
Sideload Plate S
In the Box
- Sachtler aktiv10 Sideload Fluid Head with SpeedLevel & 7-Step Drag for Select Sachtler Tripods ((100mm Ball)
- Sachtler Sideload Plate S/Ace Tripod QR Plate
- Sachtler Pan Handle DV 75
- Limited 1-Year Warranty
- Limited 2-Year Total Warranty with Registration
Sachtler Aktiv Series Video Head Specs
| Camera Plate Features | Sideload, Sliding Balance Plate |
| Camera Plate Type | Sideload Plate S |
| Camera Mounting Screw | 1 x 1/4"-20 Male with Locating Pin |
| Balance Plate Sliding Range | 4.7" / 120 mm |
| Safety Lock | Yes |
| Plate Dimensions | 5.5 x 2" / 140 x 50 mm |
| Base Mount | 100 mm Half Ball Sachtler SpeedSwap |
| Drag Control | Pan: Stepped 7-Step Plus 0 Tilt: Stepped 7-Step Plus 0 |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -70° |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
| Load Capacity | 0 to 26.5 lb / 0 to 12 kg |
| Counter Balance | Continuous 15-Step Plus 0 |
| Pan Handle Fittings | 2 x Rosette |
| Included Pan Handle Length | 16.9" / 430 mm |
| Bubble Level | 1 x Illuminated |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Dimensions | 7.3 x 5.7 x 5.5" / 186 x 146 x 140 mm |
| Weight | 6.4 lb / 2.9 kg |
| Package Weight | 9.5 lb |
| Box Dimensions (LxWxH) | 18 x 14.5 x 14" |
