Description
Sachtler Ace XL MKII Overview

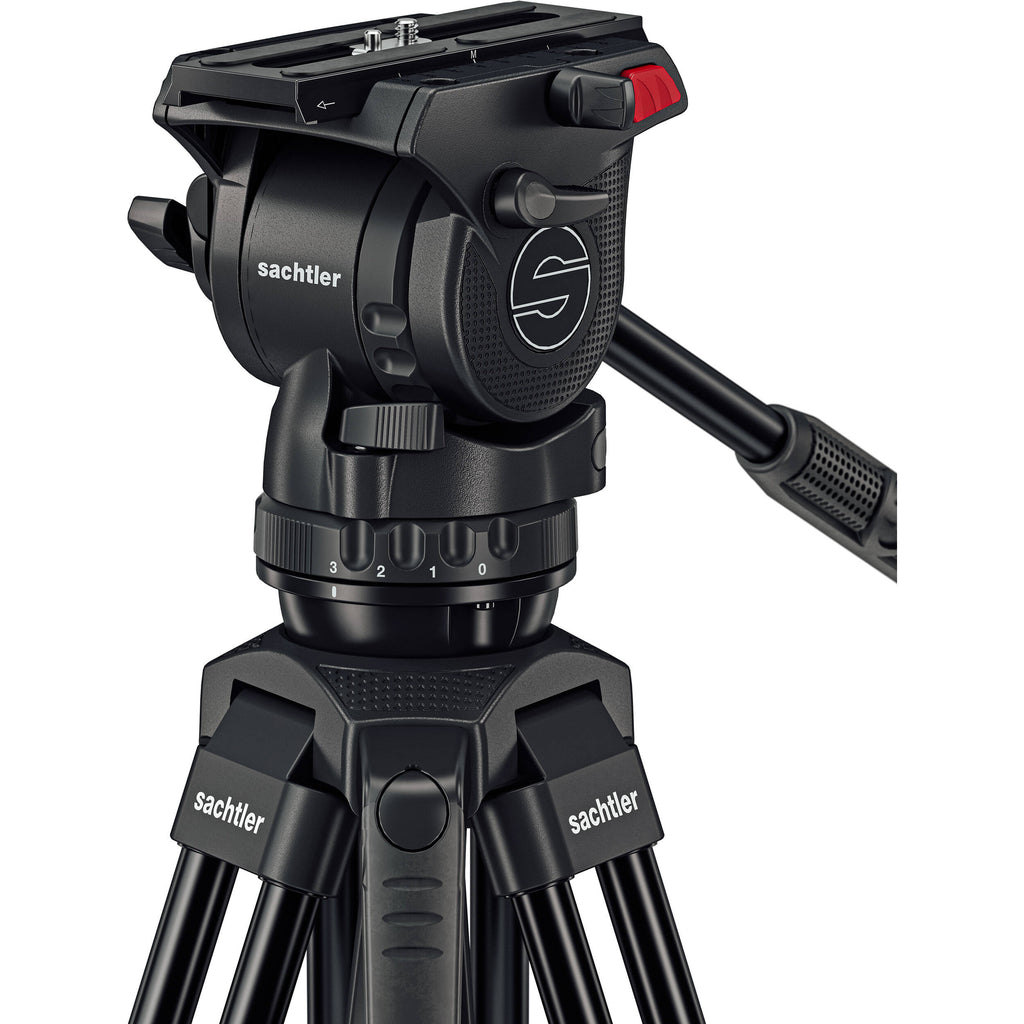

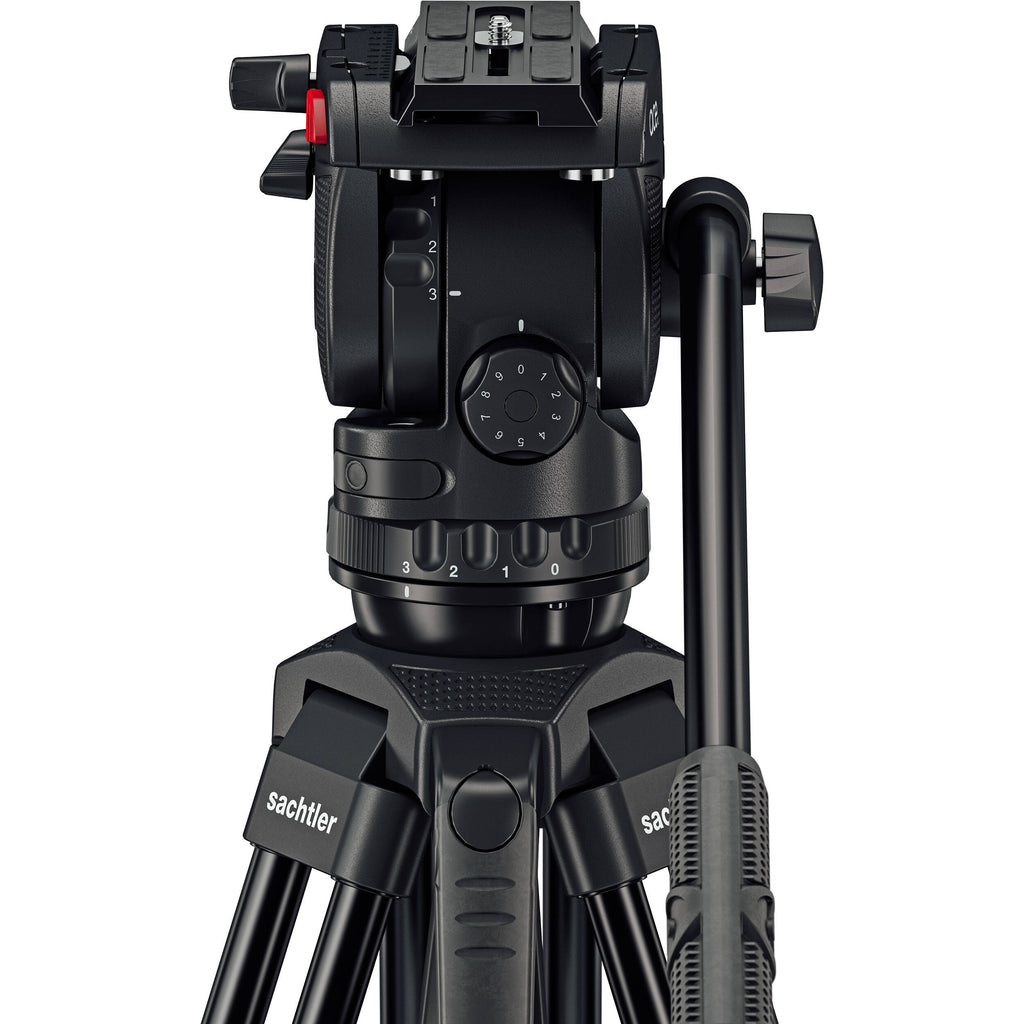

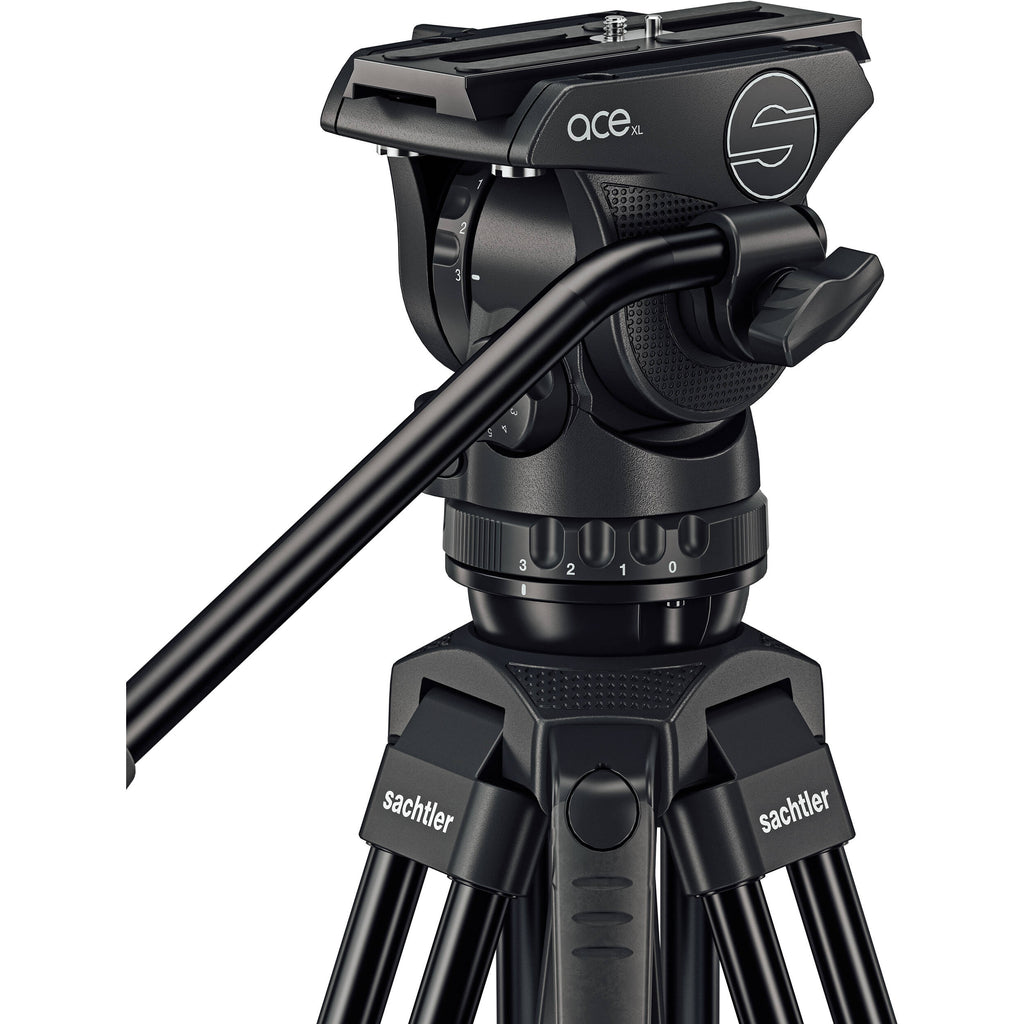

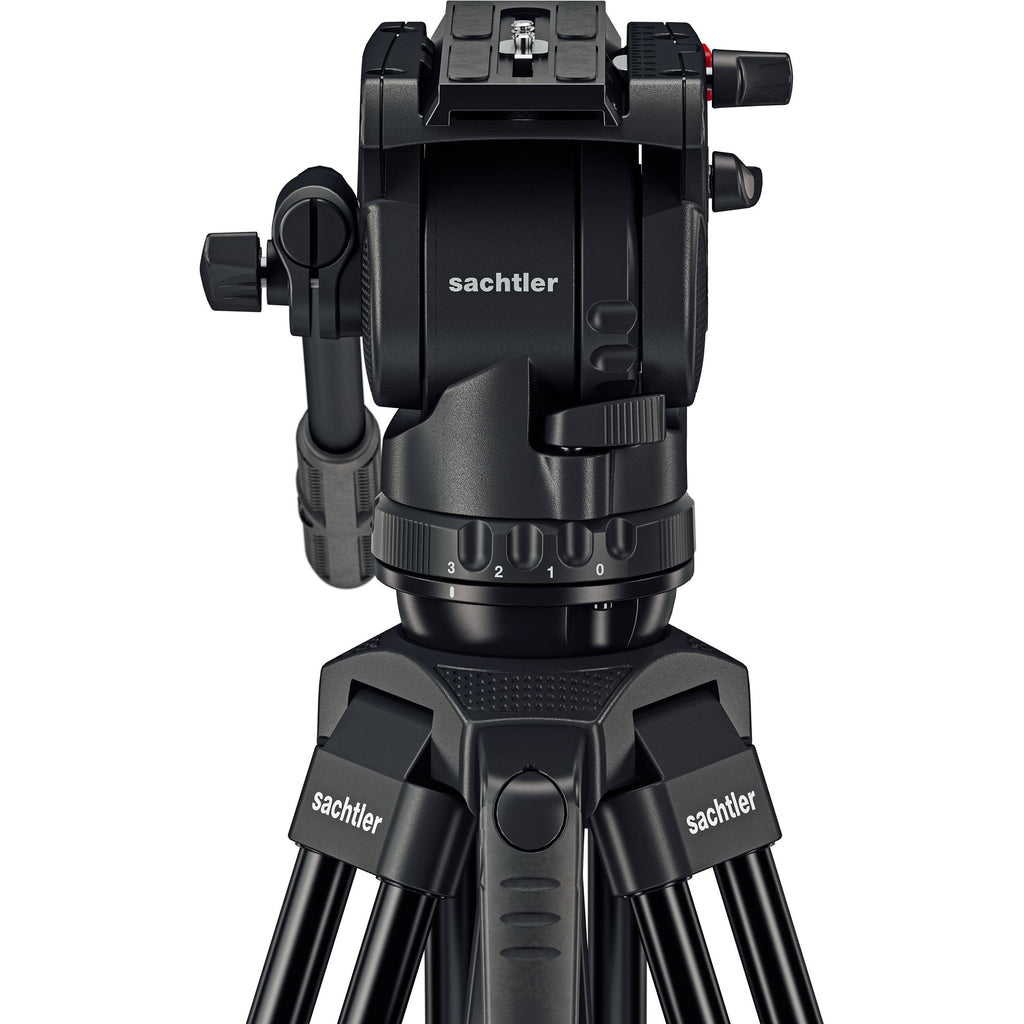

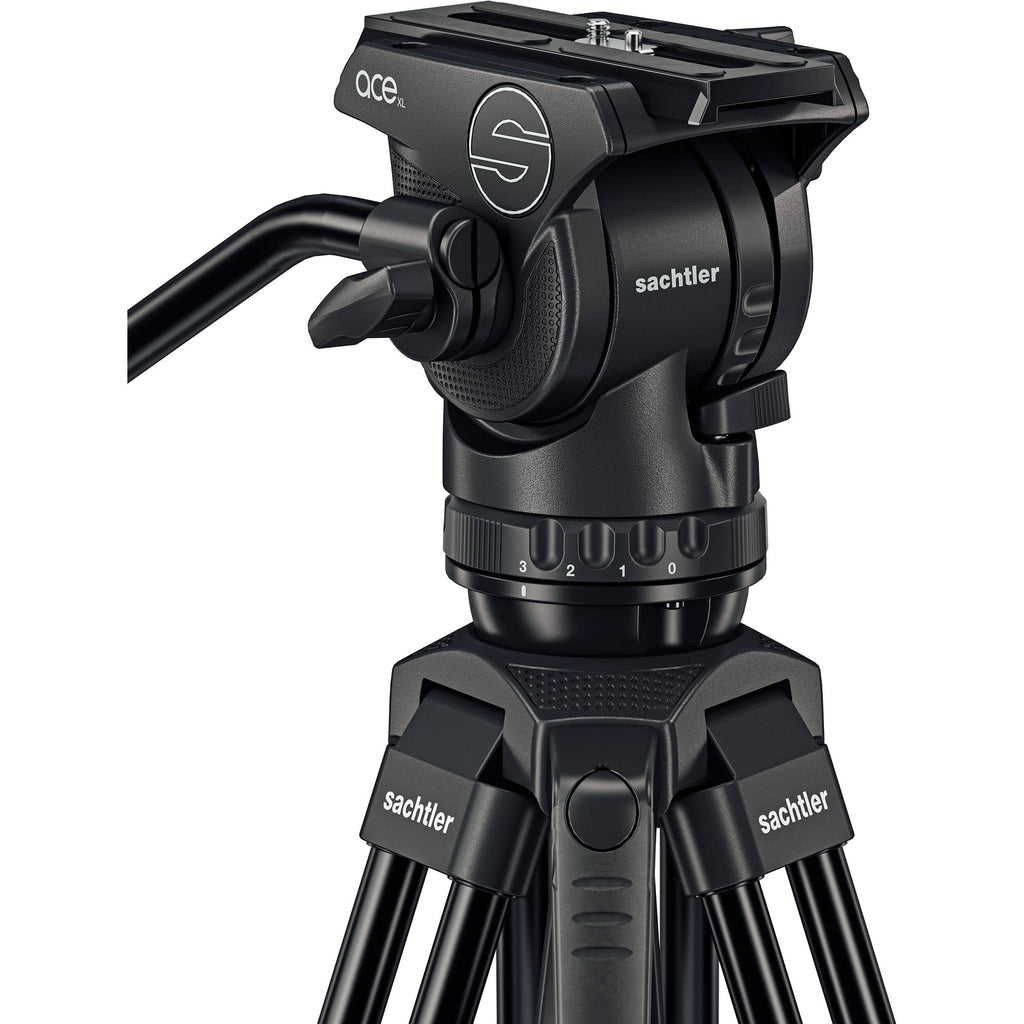

The Sachtler Ace XL Mark II Fluid Head is designed to facilitate smooth pan and tilt movements with your cine-style camera configurations thanks to its 17.6 lb load capacity. The fluid head can be secured to 75mm bowl mount tripods. It has 9 + 0 steps of counterbalance and 3 + 0 steps of pan/tilt drag adjustment. A total tilt range of +90° to -75° allows for intuitive framing of your shots.
Mount your camera using the slide-in balancing plate with a 1/4"-20 screw and locating pin. With a sliding range of 4.1", this head can adapt to any rig configuration. Additional features include a detachable pan bar and an illuminated bubble level. An integrated flat head base allows the Ace XL Mark II to be mounted onto a slider.
Items Included
- Sachtler Ace XL Mark II Fluid Head (75mm Bowl)
- Sachtler Pan Bar for Ace Tripods
- Slide-In Camera Plate
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 2-Year (US Only)
Additional Resources
No additional resources available
Sachtler Ace XL MKII Specs
| Camera Mounting |
1/4"-20 Screw (Quick Release w/ Sliding Balance Plate)
|
| Head Type |
Fluid Head
|
| Drag Control |
Yes
|
| Load Capacity |
17.6 lb / 8 kg
|
| Weight |
3.7 lb / 1.7 kg
|
| Camera Mounting |
1/4"-20 Screw (Quick Release w/ Sliding Balance Plate)
|
| Head Type |
Fluid Head
|
| Base Mount |
Flat Base with 3/8"-16 Female (75 mm Half Ball via Included Adapter)
|
| Counter Balance |
Incremental 9-Step Plus 0
|
| Dimensions |
Camera Plate: 5.5 x 2" / 140.00 x 50.00 mm
|
| Drag Control |
Yes
|
| Vertical Tilt |
+90° to -75°
|
| Load Capacity |
17.6 lb / 8 kg
|
| Bubble Level |
Yes (Illuminated)
|
| Weight |
3.7 lb / 1.7 kg
|
| Package Weight |
6.895 lb
|
| Box Dimensions (LxWxH) |
17.8 x 10.3 x 7.5"
|
