Description
Russound 16X16 MATRIX PRE-AMP Overview
The Russound SMZ16-PRE is a powerful 16x16 matrix pre-amplifier with a built-in streaming platform, engineered to elevate your audio system with flexible source management and seamless integration of modern streaming technologies, including AirPlay and Google Cast.
Featuring an integrated DSP, it offers a 7-band graphic EQ with tailored presets optimized for Russound speakers. An HDMI input with Audio Return Channel (ARC) ensures effortless TV or video source connection with low-latency performance, eliminating lip-sync issues.
Scalable for larger installations, the SMZ16-PRE supports expansion up to a 16x96 matrix. It offers intuitive control via the Russound app, XTS7 touchscreen, or IPK-1 keypad. The unit is rackmount-ready, with rack ears included for easy integration into professional AV setups.
At a Glance
- Built-in Audio Streamer: the SMZ16-PRE includes the same hi-res audio streamer that is used in the popular Russound MBX-PRE and MBX-AMP products. Add additional MBX-PRE streaming pre-amplifiers (up to 15 per SMZ16-PRE) as needed
- Support for both AirPlay and Google Cast
- HDMI ARC input: connect a TV to this input and have the ability to share this source anywhere for synchronized audio without any lip synch issues
- Advanced DSP: 7-band graphical EQ with built-in presets for Russound Speakers
- Easily accessible configuration options via Russound Web Config using a computer, tablet, or smartphone

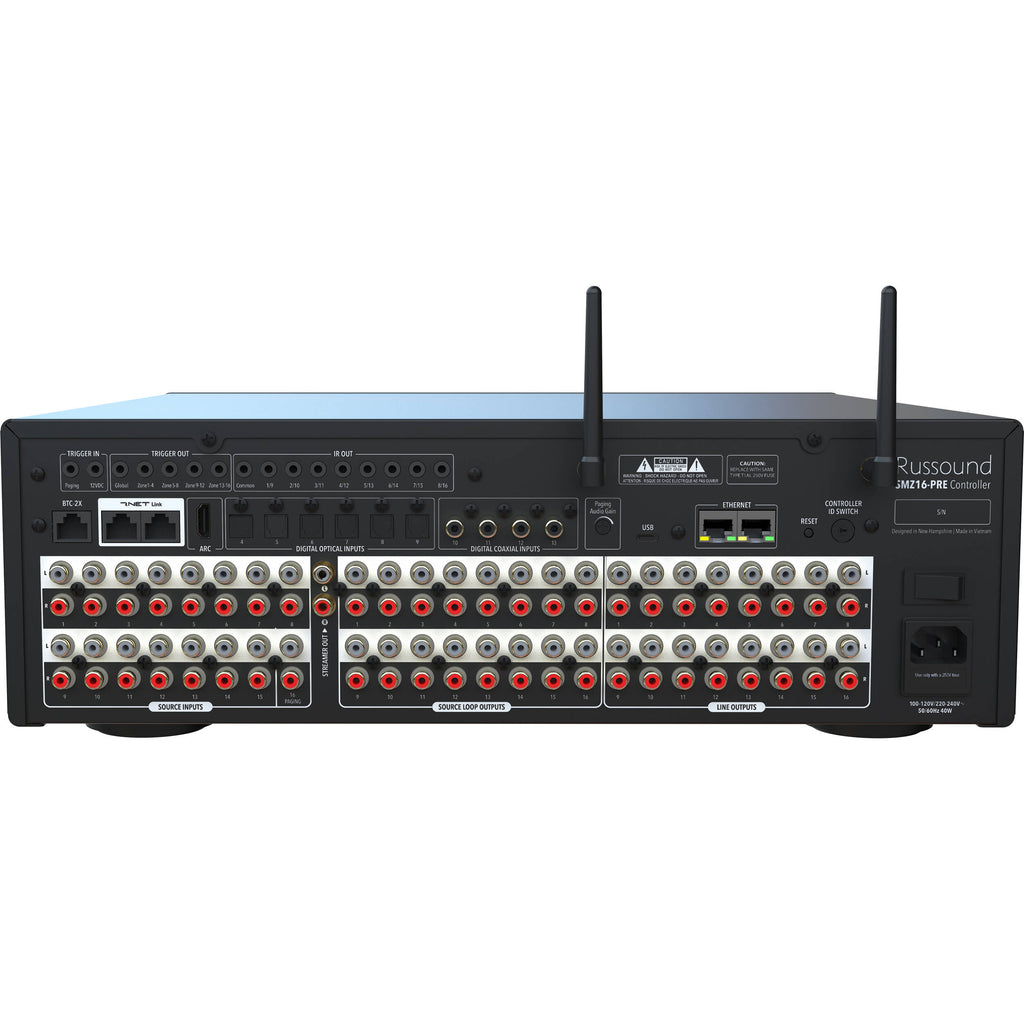

- Digital audio input options (4 coax, 6 optical)
- Up to 16 sources delivered to up to 16 zones for sharing music anywhere
- Expandable up to 16x96 matrix
- Built-in Bluetooth extension input to connect an optional BTC-2X receiver. The BTC-2X allows for easy-to-use Bluetooth up to 500� away from the SMZ16-PRE via a Cat 5 cable connection
- Supports up to 32 Global System Favorites as well as 4 Zone Favorites for every zone
- Audio paging input with configurable options for selected rooms/zones
- Advanced multiroom options: party mode, do not disturb, and source /zone linking
- Alarm clock, scheduler, and sleep timer options per zone with the Russound app
- IR control of source devices: simplified programming and control via intelligent IR learning capabilities for quick setup
- Fixed/Variable line-level outputs for all zones
- Routed IR source control outputs for up to 8 sources with shared IR available for up to 16 sources and one common IR output
- Built-in 2-port Ethernet Switch: if using a wired Ethernet connection, the SMZ16-PRE has a �port-saver� extra Ethernet port that you can use to connect another wired Ethernet device
- Available user interfaces: the SMZ16-PRE works with the IPK-1 Keypad, XTS7 wall-mounted touchscreen, and the Russound App
- Third-party control: the SMZ16-PRE uses Russound�s RIO protocol for third-party control. Drivers are available for popular control platforms such as Control4, RTI, and URC
- Firmware updatable: as new features or software improvements are released by Russound, your SMZ16-PRE can be kept up to date with an option for automatically updating
- Web config: web config is a hosted webpage on the SMZ16-PRE where all of the installation configuration and settings are maintained. It can be accessed from any browser on the same network as the SMZ16-PRE by simply navigating to the SMZ16-PRE�s IP address
- Advanced power supply technology: leveraging the latest advancements to deliver superior sound quality and efficiency
- New premium industrial design for a clean look on a shelf or in a 19� rack
UPC: 612934853838
Items Included
- Russound SMZ16-PRE 16x16 Matrix Pre-Amplifier with Built-In Streamer
- 2 x Wi-Fi/Bluetooth Antenna
- Set of Rackmount Ears with Mounting Screws
- Power Cord (1.6')
- Limited 2-Year Manufacturer Warranty
Additional Resources
Russound 16X16 MATRIX PRE-AMP Specs
| Network Connectivity |
Wired, Wi-Fi 802.11ac
|
| Audio Input Connectors |
Up to 8 x Analog, 6 x Digital Optical, 4 x Digital Coaxial, 1 x HDMI, 1 x USB
|
| Latency |
Supports Low-Latency Synchronization
|
| DSP |
7-Band EQ
|
| Power Requirements |
100 to 120V, 220 to 240V, 50/60 Hz
|
| Dimensions |
19 x 17 x 5.25" / 48.3 x 43.2 x 13.3 cm
|
| Weight |
20.7 lb / 9.4 kg
|
Packaging Info
| Package Weight |
25.945 lb
|
| Box Dimensions (LxWxH) |
20.7 x 19.6 x 11.5"
|
