Description

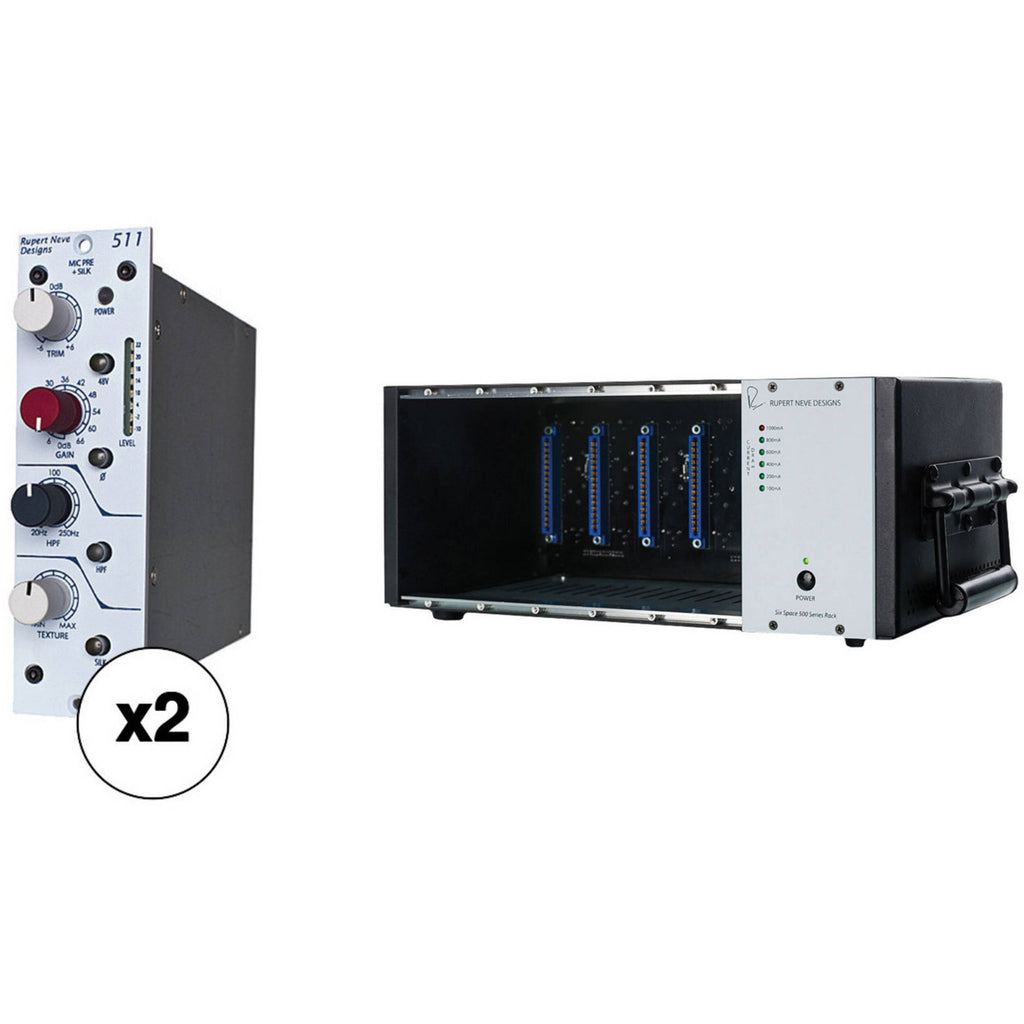

Providing any home or professional studio with a versatile, quality rack setup, this Kit includes two Rupert Neve Designs Portico 511 Mic Preamps, as well as a six-space 500-Series rack enclosure, with plenty of headroom for more rack units or larger-than-expected current loads. The Portico 511s each provide a single channel of transformer-balanced gain, and the six-space rack enclosure features 8-channels of balanced I/O for expanding your 500-series setup with plenty more rack units, including interchangeable TRS, XLR, and DB-25 connections. This kit is a great choice for embarking on a 500-Series build for your home studio, with a rich, warm preamp to get you started and loads of room for future expansion.

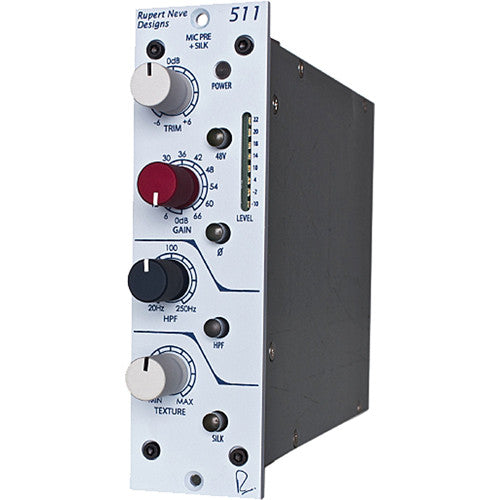

The Portico 511 Mic Preamp from Rupert Neve Designs is a single channel, transformer-balanced microphone preamp that brings the features and performance of the full-sized Portico outboard rack units to the 500-series format. The 511 provides 66dB of gain, and a +/- 6dB Trim knob is provided for fine tuning. Texture can be added by pushing the Silk button, which activates dedicated circuitry. The desired amount of texture can be dialed in with a knob, which adds harmonic content?creating tones that are reminiscent of vintage Neve equipment.
The 511 isn't limited to working with microphones. With the Gain knob set at 0 dB, the unit is capable of accepting line-level signals. Condenser microphones and active DI boxes can be powered by engaging the 48V phantom power button on the 511. An illuminated Polarity button inverts the signal when pressed. A variable High-Pass Filter can be engaged by an illuminated button as well, and a knob enables you to sweep between 20-250 Hz. An eight-segment LED meter allows you to visually monitor the output. A 500-Series power supply/rack is required for operation.

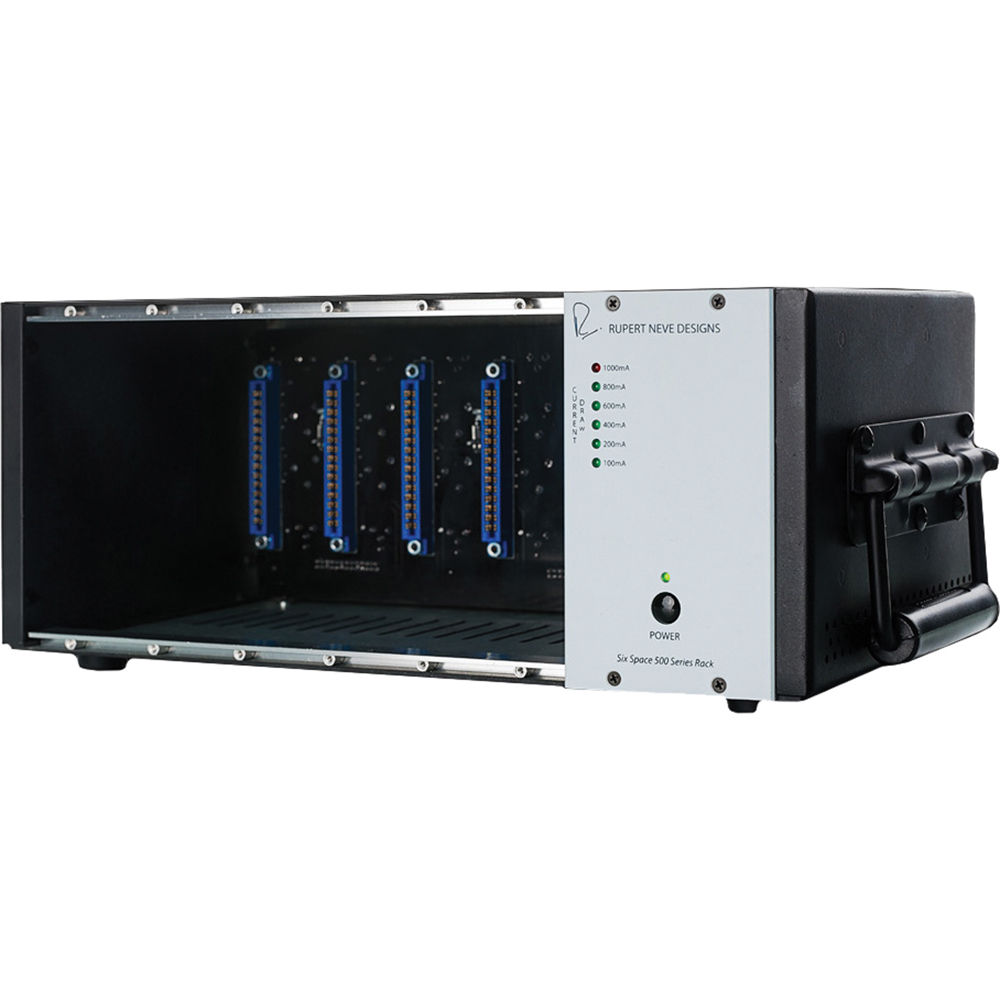

With 150% of the required current for a 6-space 500-series enclosure, the Rupert Neve Designs R6 will help you hear the full potential of your modules. The headroom in available current helps prevent the power rails from falling under a higher than expected load. LED metering shows you how much power is being used and the internal power supply has been designed with double shielding to avoid significant magnetic induction in any of the channel positions.
The solid steel chassis has a collapsible handle for portability. The unit offers a total of eight balanced I/O channels with interchangeable TRS, XLR, and DB-25 connections with a 48V phantom power bus. The channel 7-8 thru connections can be used as a way to quickly and easily convert your signal from and to DB-25, XLR, and TRS connectors. To accommodate 500 series modules that are slightly out of spec, the unit has variable-position screw holes to make the installation process go more smoothly. A 500 series link function can be enabled in pairs using the link jumpers on channels 1-2, 3-4, or 5-6. Matching blank panels are also available to cover any empty slots.
Items Included
- 2 x Rupert Neve Designs Portico 511 Mic Preamp
- Limited 1-Year Manufacturer Warranty
- Rupert Neve Designs R6 Six Space 500 Series Rack
- Limited 1-Year Manufacturer Warranty
Additional Resources
Guides & Manuals
