Description
RTS TT-16 Overview
The Telex TT-16 is a wireless base station transmitter for IFB or personal monitoring use, operating in the low VHF range from 64 to 68 MHz with a reliable transmission range of over 750'.

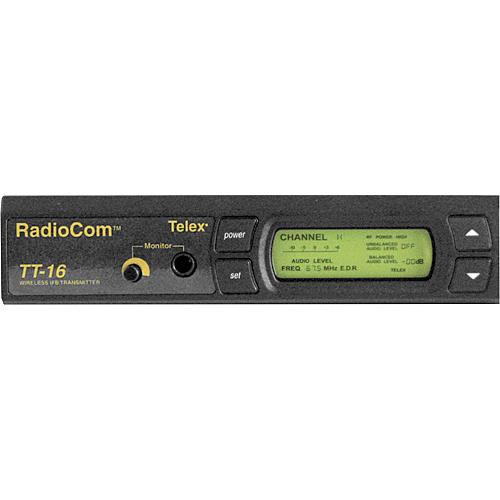

The TT-16 offers 16-channel frequency-agile synthesized technology, enabling users to switch RF channels directly from the front panel to avoid interference.

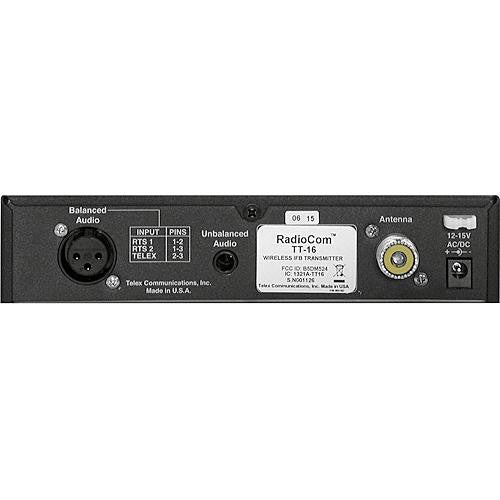

The TT-16 is equipped with a balanced 3-Pin XLR connector and a selector switch for compatibility with Telex and RTS-TW systems, and a 1/4" unbalanced connector for use with Clear-Com hardwired intercom systems.
- RTS TT-16 - 16-Channel Wireless IFB Base Station
- AC Adapter
- 50 Ohm Detachable Whip Antenna
- Limited 3-Year Manufacturer Warranty
RTS TT-16 Specs
| Output Connectors |
No
|
| Input Connectors |
1 x 3-pin XLR, Balanced
1 x 1/4" TS Phone, Unbalanced 1 x BNC Antenna 1 x Coaxial Power In |
| Output Level |
50mW max.(Hi)
5mW (Low) |
| Input Level |
Not Specified by Manufacturer
|
| Input Impedance |
Balanced:
RTS 1, 2 Selected: 200 Ohms Telex Selected: 300 Ohms Unbalanced: 10 kOhms |
| Frequency Response |
100 Hz - 10 kHz
|
| THD + N |
<2%
|
| Minimum Common Mode Rejection |
Not Specified by Manufacturer
|
| Voltage Gain |
30dB (with AGC)
|
| Voltage Output |
Not Specified by Manufacturer
|
| Call Signaling |
No
|
| Sidetone |
No
|
| Microphone Type |
No
|
| Microphone Input |
No
|
| Phantom Power |
No
|
| Headset Connector |
1 x 1/4" Stereo Phone
|
| Maximum Current Capacity |
300mA
|
| Maximum # of Belt Packs |
5
|
| Input Power Requirement |
13VAC @ 300mA
15 - 24VDC @ 300mA |
| Power Adapter |
Yes
|
| Dimensions |
7.5 x 1.75 x 7" (190.5 x 44.45 x 177.8mm)
|
| Weight |
3.9 lb (1.8 kg)
|
| Package Weight |
3.836 lb
|
| Box Dimensions (LxWxH) |
18.1 x 11.3 x 3.8"
|
