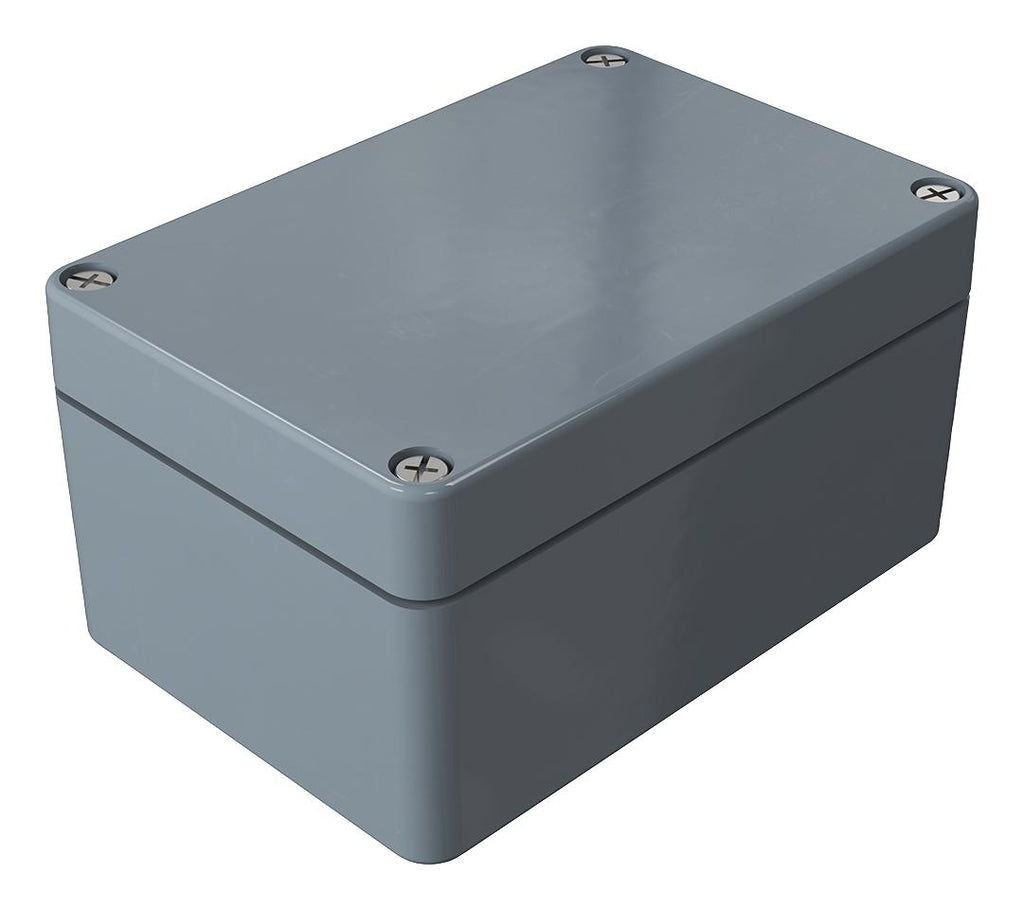

02.08 11 06 is a polyester standard enclosure. This robust plastic enclosure for automation technology and mechanical engineering. Plastic enclosure in glass fibre reinforced polyester, consisting of lid, seal, incl. captive +/- stainless steel screws, base with 2 or 4 earthing screws.
- Glass fibre reinforced duroplastic polyester material
- RAL 7000, squirrel grey colour
- IP 66 rated
- Impact resistance from IK07 - IK09 according to DIN EN 60068-2-75
- Fixing options for DIN rails and mounting plates
- Universal configuration
- UL 94V0 flammability
- External dimension is 75 x 110 x 56mm
Product details
| Enclosure Type |
Electrical / Industrial |
| Enclosure Material |
Polyester (PET), Glass Fibre Reinforced |
| External Height - Metric |
75mm |
| External Width - Metric |
110mm |
| External Depth - Metric |
56mm |
| IP Rating |
IP66 |
| Body Colour |
Grey |
| NEMA Rating |
- |
| External Height - Imperial |
2.95" |
| External Width - Imperial |
4.33" |
| External Depth - Imperial |
2.2" |
| Product Range |
- |
Other details
| Brand |
ROSE |
| Part Number |
02.08 11 06 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
| CAD Multiple Formats EN |
|
