Description

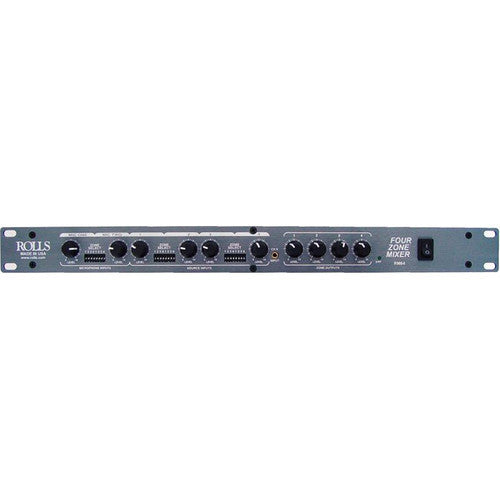

The Rolls RM64 Four Zone Mixer is ideal for use in restaurants, banquet rooms, offices, and other similar venues that need a mix of microphone and source signals sent to multiple rooms. The RM64 has two mic and four line-level source inputs which can be sent to any combination of four output zones. All four outputs have balanced XLR connectors and accompanying 1/4" jacks for external volume control. The mic inputs have automatic ducking for easy paging.
- Two mic inputs with individual volume controls, zone selector switches, and automatic ducking
- Four stereo RCA inputs with individual volume controls and zone selector switches
- Four output zones with XLR connectors, individual volume controls, and 1/4" jacks for remote volume control
- Single rack space steel housing
UPC: 675889006407
| Input Impedance | Mic: 10 kOhms (Balanced) RCA: 50 kOhms (Unbalanced) |
| Output Impedance | 50 ohms (Balanced XLR) |
| Maximum Input Level | Mic: +10dB Source: +22dB |
| Phantom Power | +12VDC |
| Inputs | 2 x XLR Female 4 x RCA Stereo Pairs |
| Outputs | 4 x XLR Male |
| Controls Front Panel | 1 x Power Switch 4 x Zone Level Control Knobs 4 x Source Input Level Control Knobs 16 x Source Zone Selector Switches 2 x Mic Level Control Knobs 8 x Mic Zone Selector Switches |
| Controls Rear Panel | 2 x Mic Trim Controls 2 x Phantom Power On/Off Switches 4 x Ducking Switches |
| Maximum Input Gain | 60dB Mic 30dB Line |
| Signal to Noise Ratio | Greater than 75dB |
| Total Harmonic Distortion (THD) | Less than 0.3% |
| IMD | Less than 0.3% |
| Common Mode Rejection Ratio | 90dB |
| Frequency Response | 20Hz - 20kHz |
| Power | 120VAC, 50-60Hz, 15W |
| Dimensions (WxHxD) | 19 x 1.75 x 6.5" (483 x 45 x 165mm) |
| Weight | 7 lbs (3kg) |
| Packaging Info | |
|---|---|
| Package Weight | 5.55 lb |
| Box Dimensions (LxWxH) | 21.4 x 7.96 x 3.75" |
In the Box
Rolls RM64 - Four Zone Mixer
- 1-Year Limited Warranty
