Description
- 6 Channels
- Stereo Insert Jacks
- Stereo/Mono Operation
- Volume, Pan, and Balance Controls
The RA62C is a 6-channel headphone amplifier intended for sound reinforcement, studio, choir, and other applications where high channel to size ratio is desirable. In addition to distributing six headphone outputs from a single monitor mix, up to six individual monitor mixes may be listened to via the rear panel stereo insert jacks.

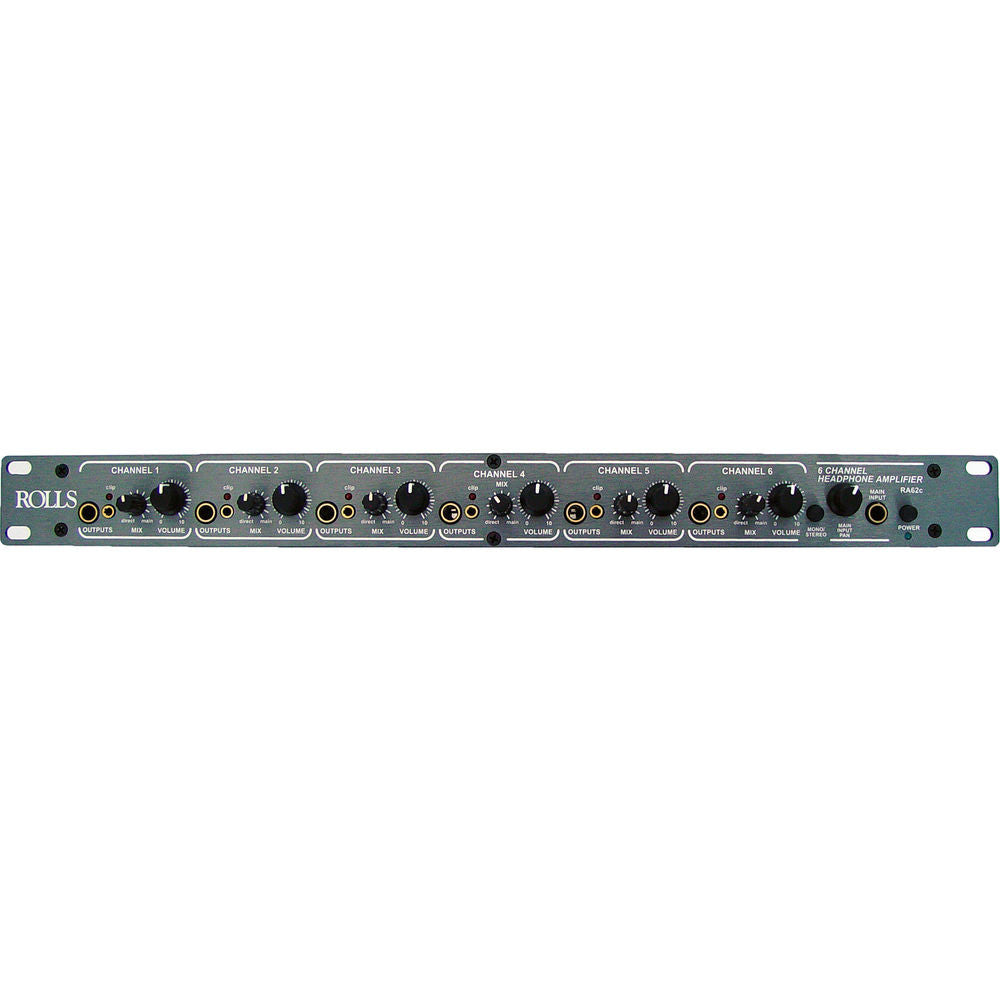

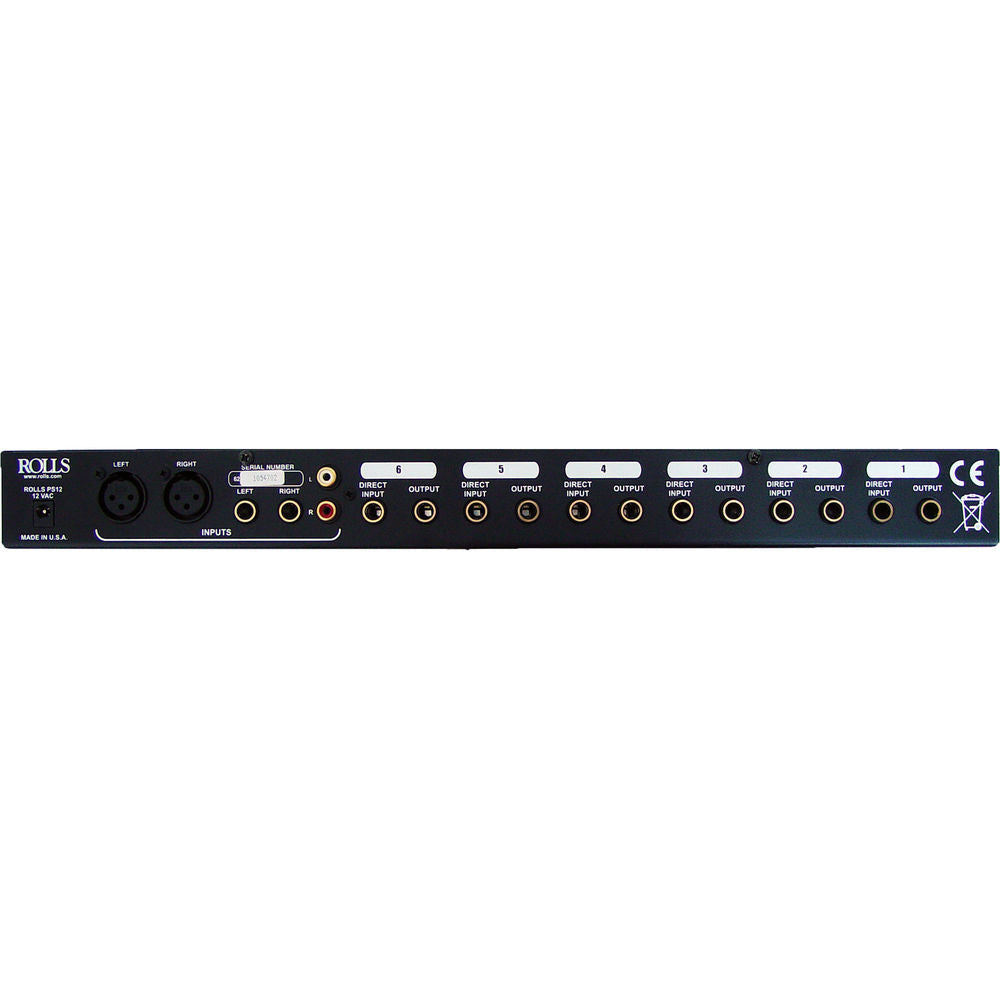

A stereo/mono switch is provided which, along with a pan control, allows the RA62C to mix two mono signals by varying their balance in the headphone outputs. The unit has six stereo headphone outputs and one 1/4" TRS stereo input located on the front panel. Right and left 1/4" TS input jacks, and six 1/4" TRS insert jacks are located on the rear panel along with two auxiliary inputs on 1/4" TS input jacks. Each channel has a volume control, and panning and balance is controlled via the pan control located on the front panel.
- Six stereo headphone amplifiers, may be used as 6-channel distribution amplifier
- 6 separate 1/4" and 1/8" stereo outputs
- Front and rear input jacks
- Inserts on all channels allow for additional mixes to be monitored on those channels
- Stereo/Mono switch and Pan control allows mixing two mono channels
| Number of Channels | 6 |
| Input Connections | 2 x 1/4" TS phono Left/Right Input 2 x 1/4" TS phono Auxiliary Input 1 x 1/4" TRS Stereo Mix Input (front panel) |
| Output Connectors | 6 x 1/4" TRS phono Headphone Outputs 6 x 1/8" Stereo Mini |
| Maximum Output | 600 mW per channel |
| Function Controls | 6 x Rotary individual volume 1 x Rotary Pan 1 x Mono/Stereo switch 1 x Power switch |
| Frequency Response | DC to 30 kHz |
| Distortion (THD) | <0.008% |
| Noise | >90dB |
| Display | 1 x Power LED |
| Dimensions | 19" x 6.5 x 1.75" (480 x 45 x 170mm) |
| Weight | 7 lbs (3 kg) |
| Specialties | Insert jacks on all six channels allows for up to six individual mixes to be monitored |
| Packaging Info | |
|---|---|
| Package Weight | 5.23 lb |
| Box Dimensions (LxWxH) | 22.0 x 8.0 x 4.0" |
- Owner's Manual
- 1 Year Warranty
