Description
- Stereo Input x 4 Output
- Mono Input x 8 Output
- Balanced XLR Female Inputs
- Balanced XLR Male Outputs
- Individual Output Level Control
- Single-Space 19" Rack Mountable

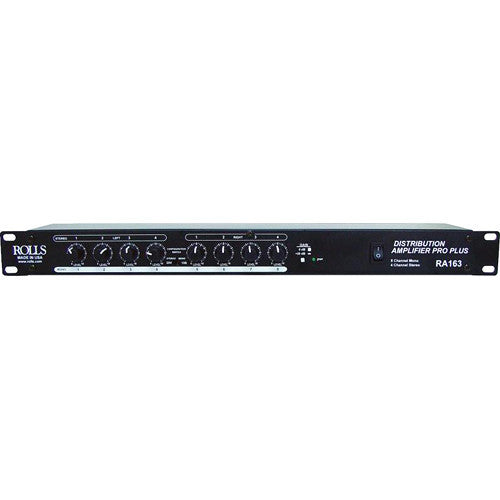

The Rolls RA163 Distribution Amplifier features 2 balanced inputs and 8 balanced outputs over XLR connectors. The RA163 will split a stereo input signal into 4 stereo outputs, or a mono input signal into 8 mono outputs. The unit can be used for high-end audio applications such as fixed-installations, sound reinforcement and more. Each output features individual level control dials and the chassis easily occupies a single space of a 19" rack enclosure.
- Mono or Stereo Operation - mono input to eight outputs, or stereo inputs to four stereo outputs
- +20dB Gain switch
- All XLR jack inputs and outputs
UPC: 675889016307
| Connectors | Inputs: XLR Female x2 Outputs: XLR Male x8 |
| Input Impedance | 100k Ohm Balanced |
| Output Impedance | 50 Ohm Balanced |
| Maximum Input Level | +24 dBV |
| Maximum Output Level | +24dB |
| Max Input/Output Gain | 20dB |
| Signal-to-Noise Ratio | >90dB |
| Frequency Response | 10Hz - 40kHz, +/- 1dB |
| THD | < .008% |
| Power | 120VAC 50-60Hz, 15VA |
| Dimensions | 19 x 1.75 x 6.5" (48 x 4.5 x 17cm) |
| Weight | 7lb (3kg) |
| Packaging Info | |
|---|---|
| Package Weight | 5.45 lb |
| Box Dimensions (LxWxH) | 21.6 x 7.9 x 3.8" |
In the Box
Rolls RA163 Distribution Amplifier
- 1 Year Warranty
