Description
Rolls Testoscillator Overview

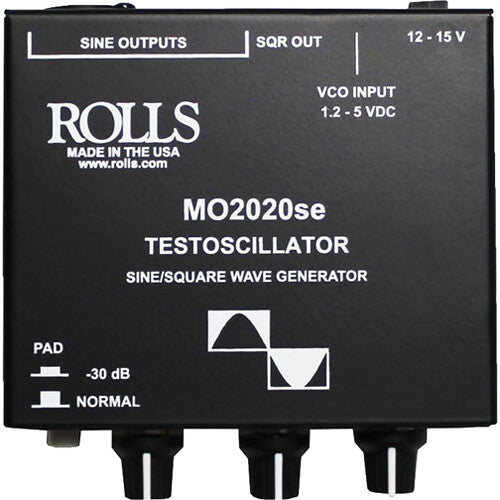

Technicians and electronic hobbyists in need of a portable signal generator for electronic testing of audio frequencies will rejoice with the Rolls MO2020se Testoscillator, which generates both sine and square waves and features independent level controls.

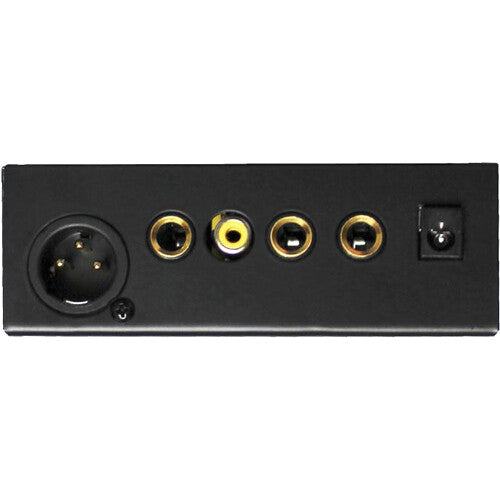

The unit's frequency range is from 20 Hz to 24 kHz and includes a variable control knob. The frequency can also accept a 1.2 to 5 VDC VCO input on a 1/4" input jack for external frequency control. Output connectors include an XLR, RCA, and 1/4" for the sine wave and a 1/4" square wave output. A 30 dB pad is also provided to allow for -30 dB referencing.
Generates both sine and square wave test tones
Tests frequencies from 20 Hz to 24 kHz
External frequency control made available via a 1/4" VCO input jack

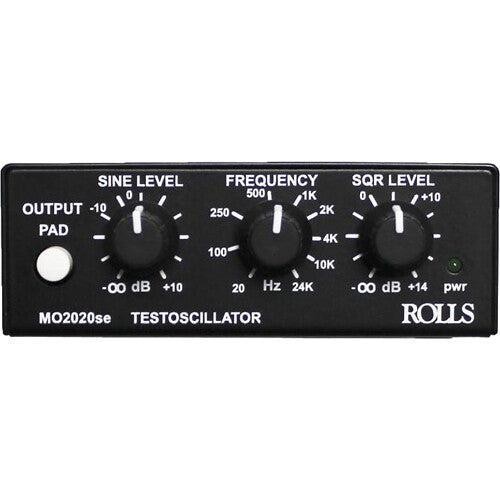

Independent level controls for both sine and square waves
30 dB pad
UPC: 675889202007
In the Box
- Rolls MO2020se Testoscillator Sine/Square Wave Generator
- Power Adapter
- Limited 1-Year Warranty
Rolls Testoscillator Specs
| Frequency Range | 20 Hz to 24 kHz |
| Input Connections | 1/4 / 6.35 mm Voltage Control Oscillator |
| Output Connections | Sine Wave: Balanced XLR 1/4" / 6.35 mm Unbalanced RCA Unbalanced Square Wave: 1/4" / 6.35 mm Unbalanced |
| Output Impedance | 100 Ohms |
| Output Level | Sine: 11 dB Square: 14 dB |
| THD | Sine: <3% |
| Power | 12 to 15 VDC (PS27s Power Adapter Included) |
| Dimensions | 4.3 x 3.8 x 1.8" / 108 x 95.3 x 44.5 mm |
| Weight | Not specified by manufacturer |
Packaging Info
| Package Weight | 1.215 lb |
| Box Dimensions (LxWxH) | 7.6 x 4.8 x 3" |
