Description
- Ideal for Paging and Background Music
- XLR and RCA Connectors
- Bass and Treble Controls

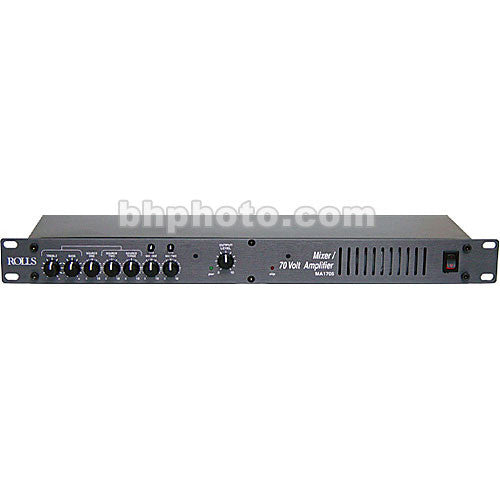

The MA1705 from Rolls is a single rack space unit mixer/amplifier designed for paging and background music in installed applications. It has 2 XLR microphone inputs and 3 stereo pairs of RCA jacks for CD players, AM/FM tuners and similar audio devices. The MA1705 provides 70 watts of power into a 70 volt speaker system.

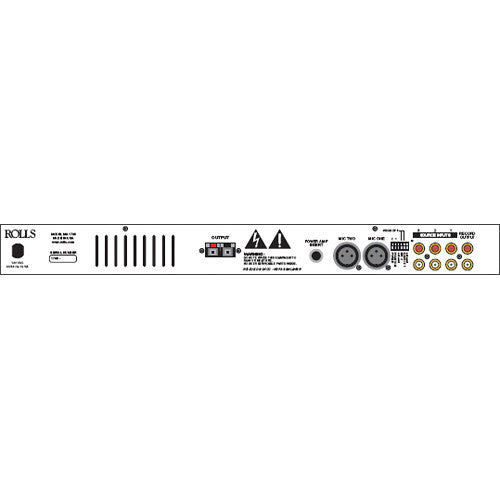

Other features include direct access to the power amp section via a 1/4" connector, bass and treble controls on sources one and two, a stereo pre-master record output, and spring-loaded output terminals. Priority ducking for paging is provided on microphone one and RCA source three.
- Single rack space unit
- Five inputs - 2 mic, 3 RCA stereo pairs
- Phantom power on mic inputs
- Tone controls for each mic input
- Bass and treble controls on sources one and two
- Direct access to power amp section
- Stereo pre-master level RCA record output
UPC: 675889170504
| Output Power | 70 watts (For 70V System) |
| Input Sensitivity | Mic: -14 dBV RCA: 24 dBV Amp Insert: 24 dBV |
| Input Impedance | Mic: 600 ohms RCA: 22 k ohms Amp Insert: 22 k ohms |
| Gain | Mic: 60 dBV RCA: 26 dBV |
| Frequency Response | 60Hz - 20kHz |
| Signal-to-Noise Ratio | 96 dBV |
| Total Harmonic Distortion (THD) | 0.06% |
| Input Connections | 2 x 3-Pin XLR Female 3 x Stereo Pairs of RCA Jacks 1 x 1/4" Power Amp Insert |
| Output Connectors | 1 x RCA Stereo Pair 1 x Spring-Loaded 70V Line Output (Balanced) |
| Controls Front Panel | Power Switch 5 x Volume Level Controls 2 x Mic Tone Controls 1 x Bass Control Knob 1 x Treble Control Knob 1 x Master Output Level Knob |
| Controls (Rear) | 2 x Priority Dipswitches 2 x Phantom Power Dipswitches |
| Indicators | Power and Clip LEDs on Front Panel |
| Cooling | Front Panel Acts as Heatsink |
| Power Consumption | Not Specified by Manufacturer |
| Dimensions (WxHxD) | 19 x 1.75 x 5" (483 x 44 x 127 mm) |
| Weight | 5.5 lbs (2.5 kg) |
| Specialties | N/A |
| Packaging Info | |
|---|---|
| Package Weight | 8.45 lb |
| Box Dimensions (LxWxH) | 21.6 x 7.9 x 3.7" |
In the Box
Rolls MA1705 5-Input Mixer/Amplifier
- User Manual
- 1 Year Limited Warranty
