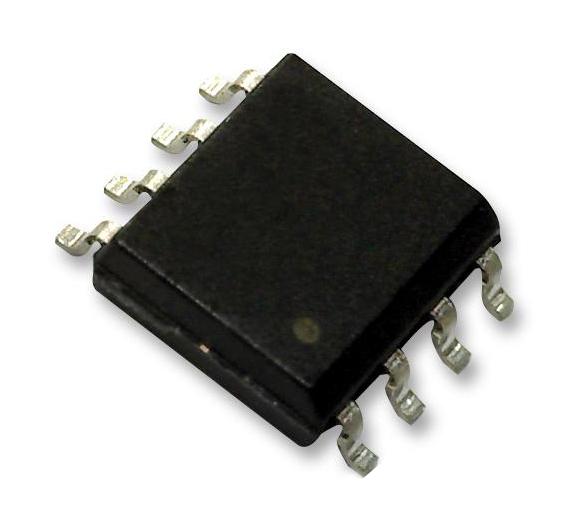

Rohm SH8M41TB1 SH8M41TB1 Dual Mosfet N and P Channel 80 V 3.4 A 2.6 0.09 ohm New

This is a SH8M41TB1 Dual MOSFET , N and P Channel, 80 V, 80 V, 3.4 A, 2.6 A, 0.09 ohm New product from ROHM with the model number SH8M41TB1

Product details

Channel Type	N and P Channel
Drain Source Voltage Vds N Channel	80V
Drain Source Voltage Vds P Channel	80V
Continuous Drain Current Id N Channel	3.4A
Continuous Drain Current Id P Channel	2.6A
Drain Source On State Resistance N Channel	0.09ohm
Drain Source On State Resistance P Channel	0.165ohm
Transistor Case Style	SOP
No. of Pins	8Pins
Power Dissipation N Channel	2W
Power Dissipation P Channel	2W
Operating Temperature Max	150°C
Product Range	-
Qualification	-

Other details

Brand	ROHM
Part Number	SH8M41TB1
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
