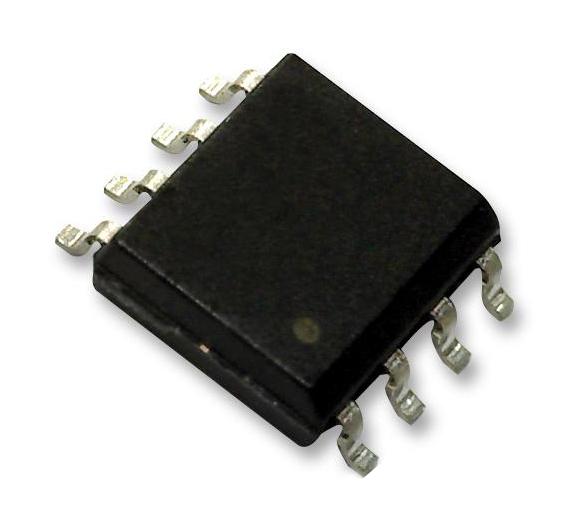

Rohm SH8K32TB1 Dual Mosfet N Channel 60 V 4.5 A 0.046 ohm SOP Surface Mount

This is a SH8K32TB1 Dual MOSFET , N Channel, 60 V, 4.5 A, 0.046 ohm, SOP, Surface Mount product from ROHM with the model number SH8K32TB1

Product details

Channel Type	N Channel
Transistor Polarity	N Channel
Drain Source Voltage Vds N Channel	60V
Drain Source Voltage Vds	60V
Continuous Drain Current Id	4.5A
Drain Source Voltage Vds P Channel	60V
Continuous Drain Current Id N Channel	4.5A
On Resistance Rds(on)	0.046ohm
Transistor Case Style	SOP
Continuous Drain Current Id P Channel	4.5A
Drain Source On State Resistance N Channel	0.046ohm
Transistor Mounting	Surface Mount
Rds(on) Test Voltage	10V
Drain Source On State Resistance P Channel	0.046ohm
Gate Source Threshold Voltage Max	2.5V
Power Dissipation Pd	2W
No. of Pins	8Pins
Power Dissipation N Channel	2W
Power Dissipation P Channel	2W
Operating Temperature Max	150°C
Qualification	-
Product Range	-
Automotive Qualification Standard	-

Other details

Brand	ROHM
Part Number	SH8K32TB1
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
