Description

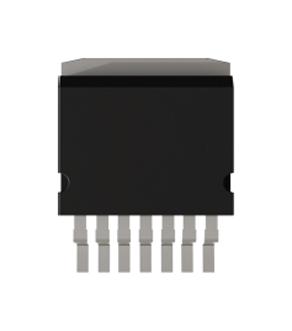

This is a SCT4062KW7HRTL Silicon Carbide MOSFET , AEC-Q101, Single, N Channel, 24 A, 1.2 kV, 0.062 ohm, TO-263 (D2PAK) product from ROHM with the model number SCT4062KW7HRTL
Product details
| MOSFET Module Configuration | Single |
| Channel Type | N Channel |
| Continuous Drain Current Id | 24A |
| Drain Source Voltage Vds | 1.2kV |
| Drain Source On State Resistance | 0.062ohm |
| Transistor Case Style | TO-263 (D2PAK) |
| No. of Pins | 7Pins |
| Rds(on) Test Voltage | 18V |
| Gate Source Threshold Voltage Max | 4.8V |
| Power Dissipation | 93W |
| Operating Temperature Max | 175°C |
| Product Range | - |
Other details
| Brand | ROHM |
| Part Number | SCT4062KW7HRTL |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
