Description

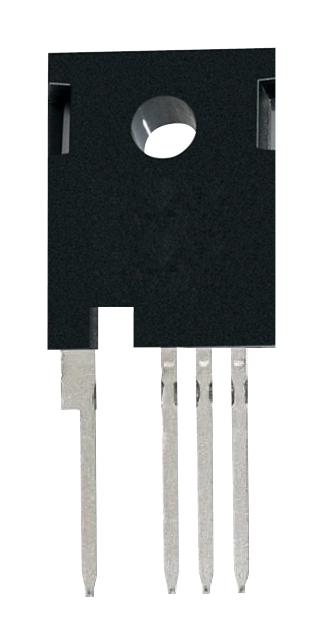

This is a SCT4062KRHRC15 Silicon Carbide MOSFET , AEC-Q101, Single, N Channel, 26 A, 1.2 kV, 0.062 ohm, TO-247 product from ROHM with the model number SCT4062KRHRC15
Product details
| MOSFET Module Configuration | Single |
| Channel Type | N Channel |
| Continuous Drain Current Id | 26A |
| Drain Source Voltage Vds | 1.2kV |
| Drain Source On State Resistance | 0.062ohm |
| Transistor Case Style | TO-247 |
| No. of Pins | 4Pins |
| Rds(on) Test Voltage | 18V |
| Gate Source Threshold Voltage Max | 4.8V |
| Power Dissipation | 115W |
| Operating Temperature Max | 175°C |
| Product Range | - |
Other details
| Brand | ROHM |
| Part Number | SCT4062KRHRC15 |
| Quantity | Each |
| Technical Data Sheet EN |  |
