Description

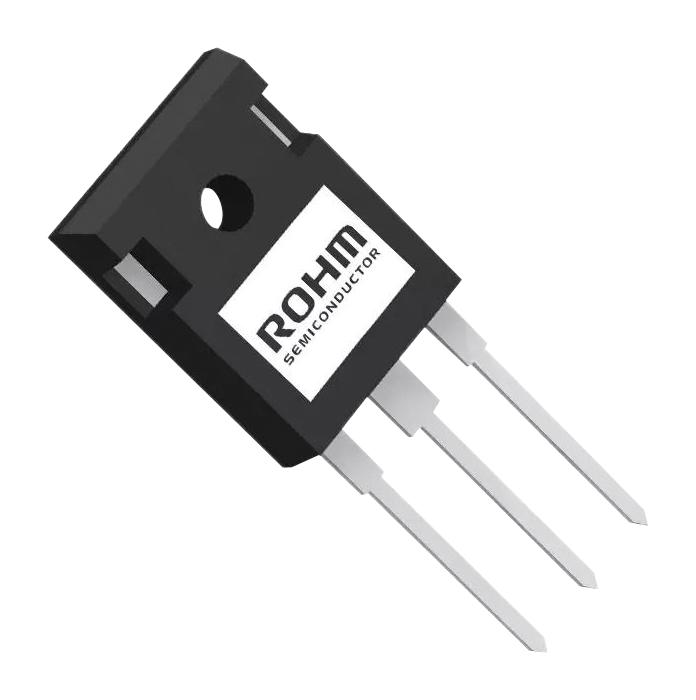

This is a SCT4013DEC11 Silicon Carbide MOSFET , Single, N Channel, 105 A, 750 V, 0.013 ohm, TO-247N product from ROHM with the model number SCT4013DEC11
Product details
| MOSFET Module Configuration | Single |
| Channel Type | N Channel |
| Continuous Drain Current Id | 105A |
| Drain Source Voltage Vds | 750V |
| Drain Source On State Resistance | 0.013ohm |
| Transistor Case Style | TO-247N |
| No. of Pins | 3Pins |
| Rds(on) Test Voltage | 18V |
| Gate Source Threshold Voltage Max | 4.8V |
| Power Dissipation | 312W |
| Operating Temperature Max | 175°C |
| Product Range | - |
| MSL | - |
Other details
| Brand | ROHM |
| Part Number | SCT4013DEC11 |
| Quantity | Each |
| Technical Data Sheet EN |  |
