Description

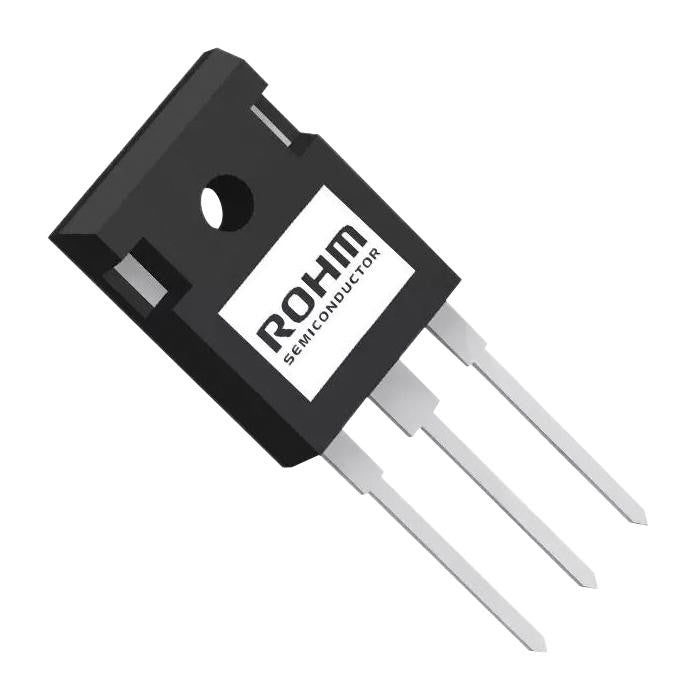

This is a Power MOSFET, SiC, N Channel, 21 A, 650 V, 0.12 ohm, 18 V, 5.6 V product from ROHM with the model number SCT3120AL
Product details
| Transistor Polarity | N Channel |
| Continuous Drain Current Id | 21A |
| Drain Source Voltage Vds | 650V |
| On Resistance Rds(on) | 0.12ohm |
| Rds(on) Test Voltage Vgs | 18V |
| Threshold Voltage Vgs | 5.6V |
| Power Dissipation Pd | 103W |
| Transistor Case Style | TO-247N |
| No. of Pins | 3Pins |
| Operating Temperature Max | 175°C |
| Product Range | - |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | ROHM |
| Part Number | SCT3120AL |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Application Note EN | |
