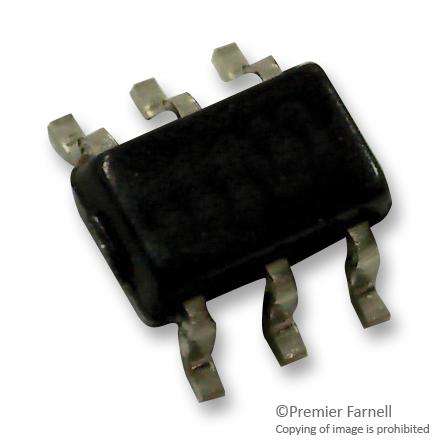

Rohm RSQ035N03HZGTR Mosfet Transistor N Channel 3.5 A 30 V 0.044 ohm 10 2.5

This is a MOSFET Transistor, N Channel, 3.5 A, 30 V, 0.044 ohm, 10 V, 2.5 V product from ROHM with the model number RSQ035N03HZGTR

Product details

Transistor Polarity	N Channel
Continuous Drain Current Id	3.5A
Drain Source Voltage Vds	30V
On Resistance Rds(on)	0.044ohm
Rds(on) Test Voltage Vgs	10V
Threshold Voltage Vgs	2.5V
Power Dissipation Pd	1.25W
Transistor Case Style	TSMT
No. of Pins	6Pins
Operating Temperature Max	150?C
Product Range	-
Automotive Qualification Standard	AEC-Q101

Other details

Brand	ROHM
Part Number	RSQ035N03HZGTR
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
