LM2904EYF-CE2 is an automotive excellent EMI immunity ground sense operational amplifier. This IC is a monolithic IC integrated dual-independent operational amplifier on a single chip. An operating voltage range is wide from 3V to 36V. This operational amplifier is the most suitable for automotive requirements such as engine control units, electric power steering, anti-lock braking system, and so on because it has features of low supply current. This has the advantage of EMI tolerance. It makes it easier replacing with conventional products or simpler design EMI. Application includes an engine control unit, electric power steering (EPS), anti-lock braking system (ABS), and automotive electronics.
- SOP8 package, operating temperature range from -40°C to +150°C
- Operating supply voltage range from 3V to 36V (single supply), 0.6mA low supply current (typ)
- 2nA input offset current (typ), 20nA input bias current (typ)
- EMARMOUR� series, AEC-Q100 qualified (grade 1)
- Operable from almost GND level for both input and output
- Standard op-amp pin-assignments
- Low supply current, wide operating supply voltage range
- High open loop voltage gain
- Wide operating temperature range
Other details
| Brand |
ROHM |
| Part Number |
LM2904EYF-CE2 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

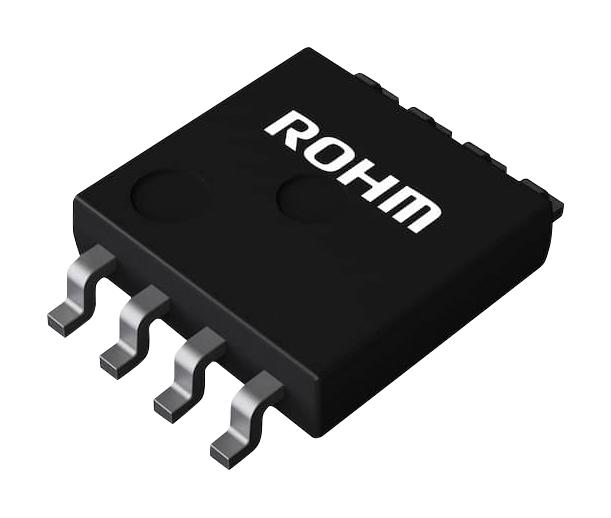

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
